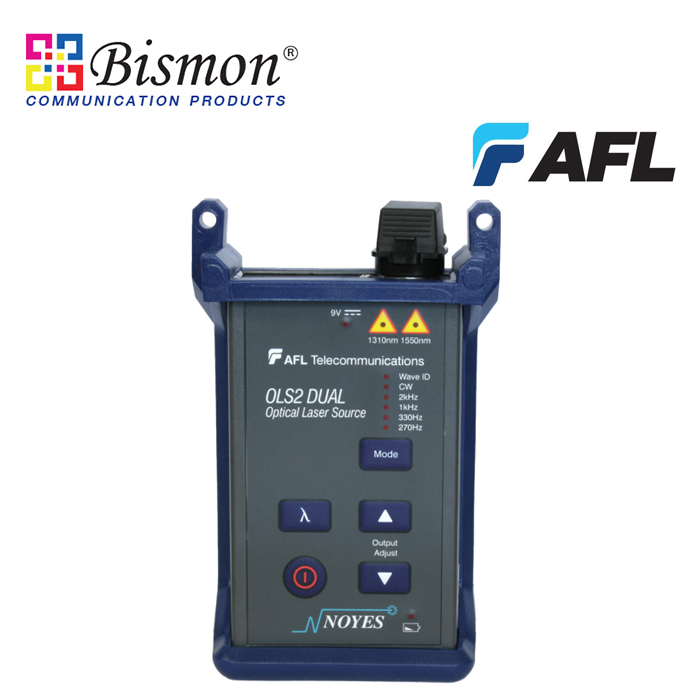

OLS2-Dual Laser Source with Wave ID SM 1310/1550nm


Part number : OLS2-Dual

Brand : Noyes

Price : 0.00 Baht
(Dealer price can log-in/ Exclude Vat)

download pdf



OLS2-Dual Laser Source with Wave ID



Features:

 •  5-Year Product Warranty

 •  3-Year Recommended Calibration Interval

 •  Dual or single Wave ID, CW, Tone Output

 •  Selectable 270 Hz, 330 Hz, 1 kHz, 2 kHz Tone

Applications:

 •  Certify SM links per TIA/EIA standards

 •  LAN/WAN Testing

 •  Fiber identification prior to splicing (with OFI-200D)



Dual Wavelength Laser Source

NOYES OLS2 - Dual from AFL is a hand-held, rugged laser source designed for performing insertion loss measurements on single-mode fiber optic links when used with an optical power meter. The LASER output is stabilized to ensure accurate test results per current TIA/EIA requirements.



Equipped with industry standard 2khz test tone, the OLS2-Dual from AFL is an ideal tool to pair with an optical fiber identifier (OFI-200D) for use in fiber identification.

Single-mode output port emits 1310/1550 nm LASER output at CW, WaveID, dual wavelength WaveID, or user selectable Tone.



Faster Test Times with WaveID – In WaveID mode, the NOYES OLS2-Dual encodes each wavelength with a unique WaveID code.  When used with a NOYES power meter, the pair can send and receive two wavelengths each test – doubling testing efficiency – reducing test time!



Flexible Output Connector Adapter Design – The OLS2-Dual output port is equipped with UCI based removable adapters to allow the output connectors to be inspected and cleaned, while allowing field change of output style between FC, SC, ST, and LC connector adapters.



The OLS2-Dual is fully N.I.S.T. traceable.



Key Specifications

 •  Optical Port Wavelengths: 1310 and 1550 nm

 •  Output Power: 0 dBm, 9 µm single-mode

 •  Output connector: FC, SC, ST, LC switchable (One style supplied with unit, order others separately)

 •  Test Tones: 2 kHz, 1 kHz, 330 Hz, 270 Hz

 •  Battery: 2 x AA Alkaline, optional AC adapter
