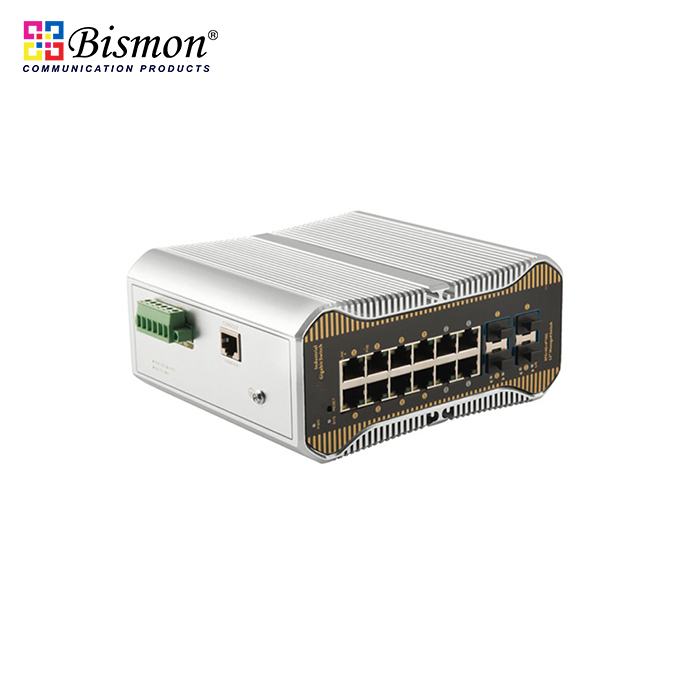

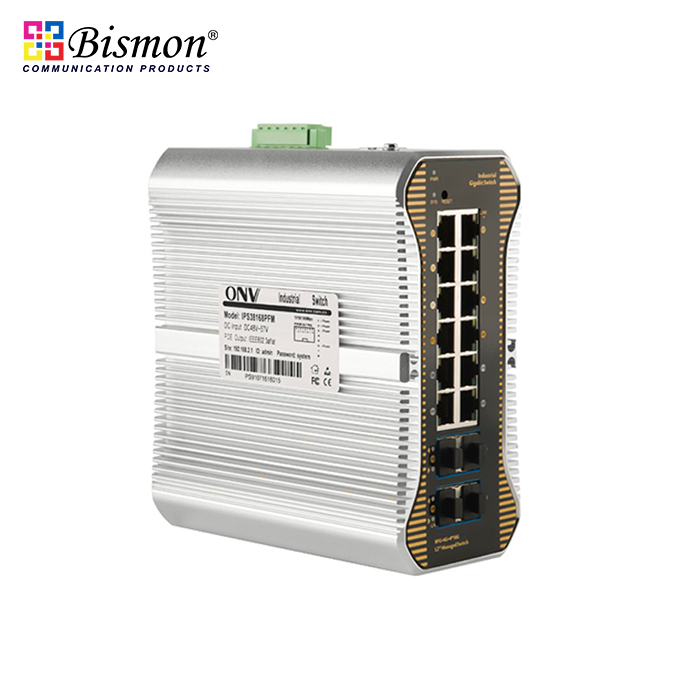

Model

B1-IPS38168FM

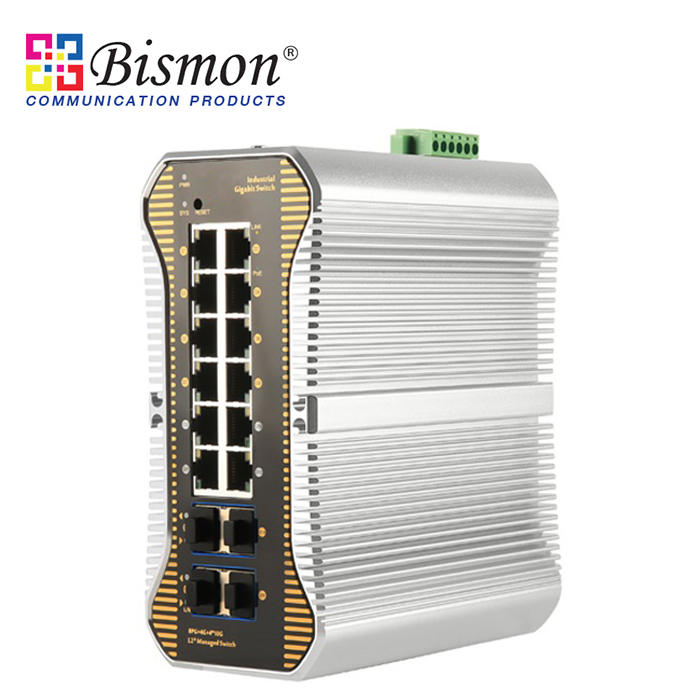

Interface Characteristics

Fixed Port

Power off alarm switch port (FAULT)

4*1/10G uplink SFP+ fiber ports (Data)

12*10/100/1000Base-T RJ45 ports (Data)

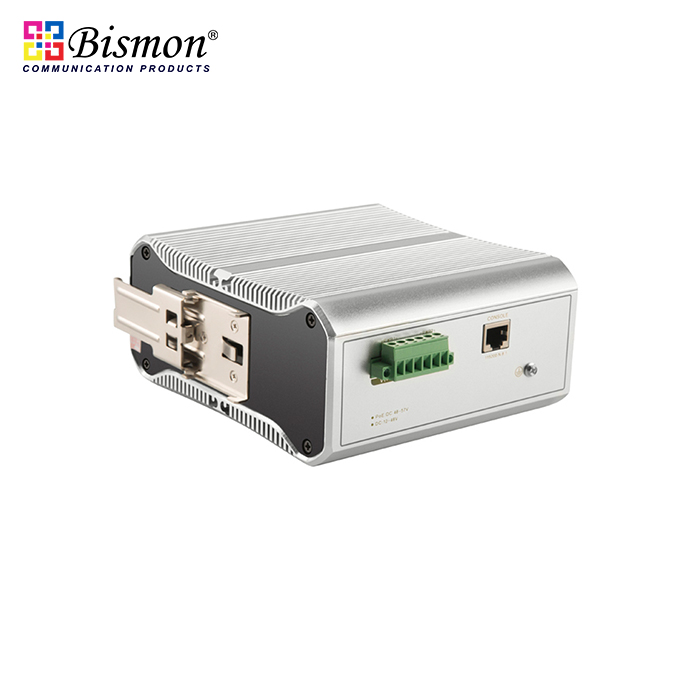

2 set of V+, V- redundant DC power ports (6 Pin Phoenix terminal)

Ethernet Port

Port 1-12 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption

Twisted Pair Transmission

10BASE-T: Cat3,4,5 UTP (≤100 meters)

100BASE-TX: Cat5 or later UTP (≤100 meters)

1000BASE-T: Cat5e or later UTP (≤100 meters)

Optical Fiber Port

1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)

SFP Port Expansion

Turbo overclocking 2.5G optical module expansion and networking

Optical Cable/ Distance

Multi-mode: 850nm/ 0-500m, 850nm/ 0-300m (10G)

Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km

Chip Parameter

Network Management Type

L3

Network Protocol

IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX  IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X

IEEE802.3ae 10GBase-LR/SR, IEEE802.3x

Forwarding Mode

Store and Forward (Full Wire Speed)

Switching Capacity

176Gbps (non-blocking)

Forwarding

Rate@64byte

77.38Mpps

CPU

500MHz

DRAM

2G

FLASH

128M

MAC

32K

Buffer Memory

32M

Jumbo Frame

9.6K

LED Indicator

System: SYS (Green), Network: Link (Yellow), Fiber Port: L/A (Green)

Reset Switch

Yes, Press and hold the reset switch for 10s and release it to restore the factory settings

Power Supply

Working Voltage

DC12-48V, 6 Pin industrial Phoenix terminal, support anti-reverse protection.

Power Consumption

Standby<16W, Full load<28W

Power Supply

No, optional 24V/36W industrial power supply

Physical Parameter

Operation TEMP / Humidity

-40~+80°C, 5%~90% RH Non condensing

Storage TEMP / Humidity

-40~+85°C, 5%~95% RH Non condensing

Dimension (L*W*H)

166*150*75mm

Net /Gross Weight

1.8kg / 2.1kg

Installation

Desktop, 35mm DIN Rail

Certification & Warranty

Lightning Protection

Protection level: IP40

Lightning protection: 6KV 8/20us

IEC61000-4-3 (RS):10V/m (80~1000MHz)

FCC Part 15/CISPR22 (EN55022): Class B

IEC61000-6-2 (Common Industrial Standard)

IEC61000-4-9 (Pulsed magnet field): 1000A/m

IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz

IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV

IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV

IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s

IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge

IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)

IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s

IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV

Mechanical Properties

IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)

Certification

CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS

Warranty

5 years, lifelong maintenance.

Network Management Feature

Interface

IEEE802.3X (Full-duplex)

Port temperature protection setting

No connection port automatic sleep

Port green Ethernet Energy-saving setting

Broadcast storm control based on port speed

SFP+ optical port DDMI real-time digital diagnosis

The speed limit of the message flow in the access port, mini particle size is 64Kbps.

Layer 3 Features

IPV4 Equal Cost Routing

NG protocol, max 1000 entries

ARP protocol, max 1000 entries

IPV4/IPV6 VRRP, max group is 255

Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6

IPV4/IPV6 VLANIF interface support up to 128

IPV4/IPV6 static route/ default route supports up to 128 entries

L3 network management function, IPV4/IPV6 dual-stack management

IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries

IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries

L3 routing and forwarding, support communication between different network segments and different VLAN

VLAN

Port configuration of Access, Trunk, Hybrid.

VLAN based on MAC, VLAN based on the protocol

Voice VLAN, QinQ configuration, 4K VLAN based on port, IEEE802.1q

Port Aggregation

LACP, Static aggregation

Max 8 aggregation groups and 8 ports per group.

Spanning Tree

STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)

Industrial Ring Network Protocol

G.8032 (ERPS), Recovery time less than 20ms

250 Ring at most, Max 250 devices per ring.

Multicast

MLD Snooping v1/v2, Multicast VLAN

IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out

Port Mirroring

Bidirectional data mirroring based on port

QoS

Queue Scheduling Algorithm (SP, WRR, SP+WRR)

Flow-based Rate Limiting, Stream based redirection

Flow-based Packet Filtering, 8*Output queues of each port

802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark

ACL

ACL distribution based on port and VLAN

L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.

Security

Port based IEEE802.1X authentication

SSL guarantees data transmission security

Quad binding function of IP+MAC+VLAN+ports

MAC address learning limit, MAC address black hole

Anti DoS attack, Port broadcast message suppression

Hierarchical user management and password protection

SSH 2.0 provides a secure encrypted channel for user login

Host data backup mechanism, ARP intrusion detection function

Port isolation, IP Source Guard, ARP message speed limit function

IP Source Guard function, AAA & RADIUS & TACACS+ certification

DHCP

DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay

Management

Web network management (https)

Link Layer Discovery Protocol(LLDP)

Viewing CPU Instant Utilization Status

NTP clock, One click restore, SNMP V1/V2/V3

Cable status check, Ping detection, System work log

ONV NMS platform cluster management (LLDP+SNMP)

Console/ AUX Modem/ Telnet/ CLI command line configuration

FTP, TFTP, Xmodem, SFTP file upload and download management

System

Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable

TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
