Product Description

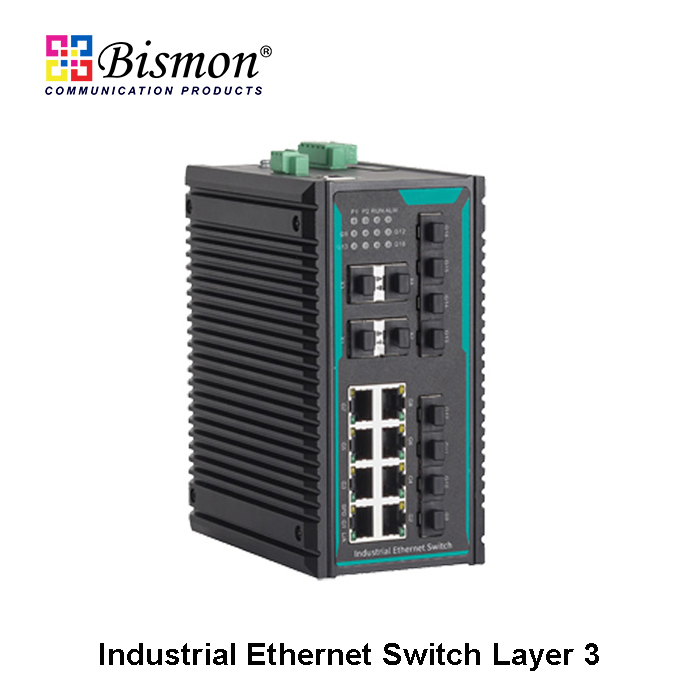

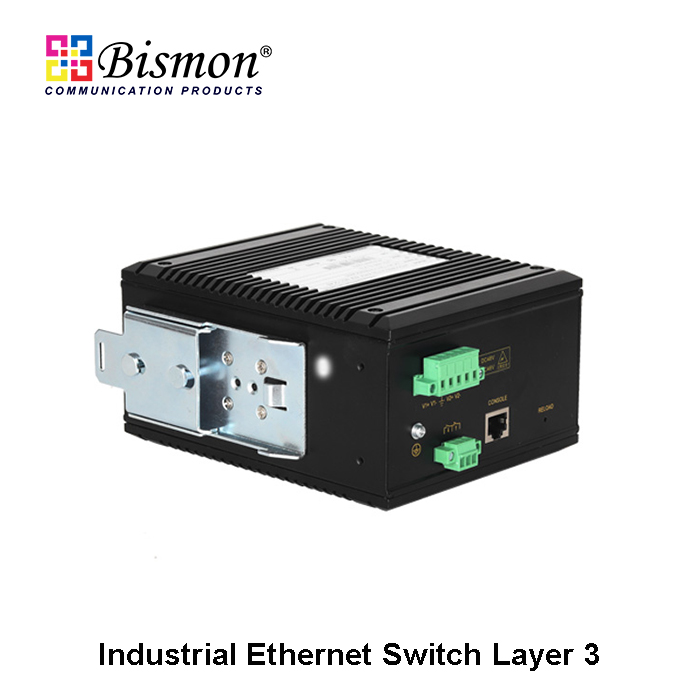

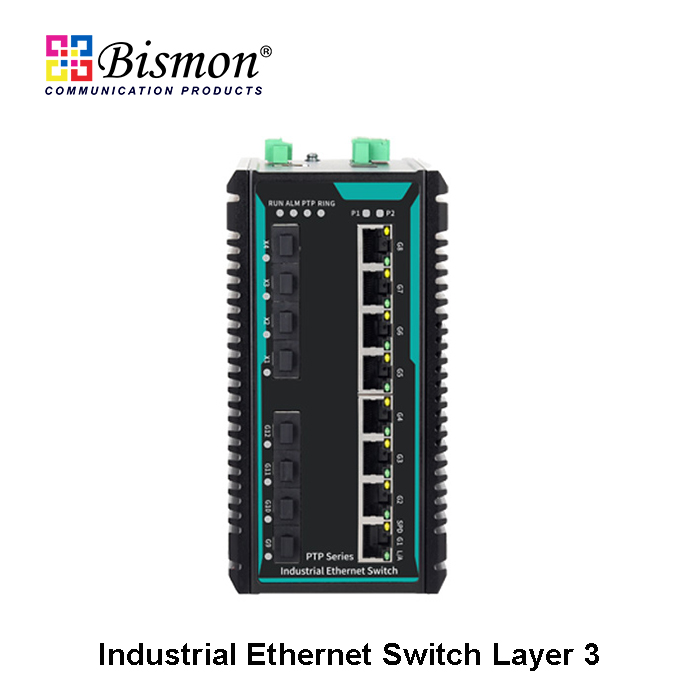

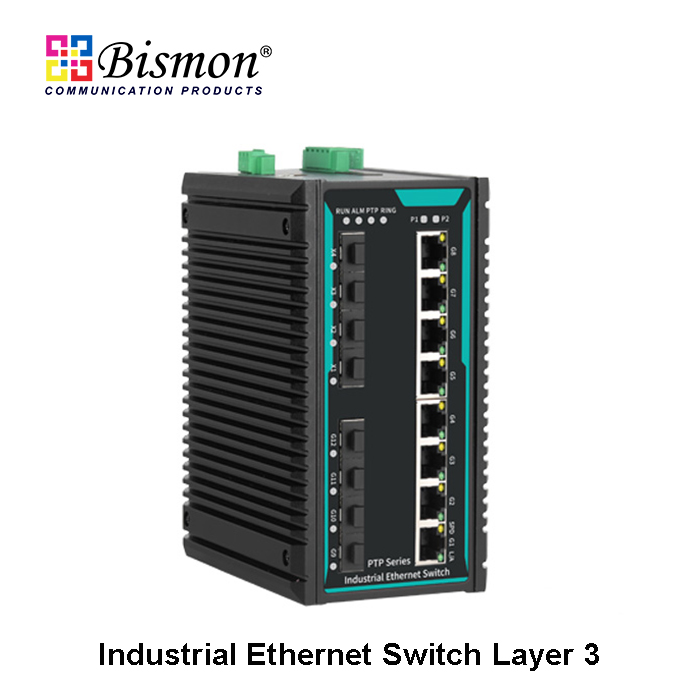

The Industrial switch is the layer 3 10GbE din-rail TSN industrial Ethernet switch, which realizes the reliability and low-latency transmission, supports 4x10GbE SFP+ ports, 4xGigabit SFP ports and 8×Gigabit electrical ports. Its store-and-forward mechanism ensures powerful bandwidth processing, while its automatic packet error troubleshooting significantly reduces transmission failures. With industrial-grade components,  16-port switch meets the highest standards in system design and production control. Its 35mm standard DIN rail mounting and high-strength aluminum alloy shell ensure durability and stability. Fanless design and efficient heat dissipation maintain optimal performance even in extreme temperatures, ranging from -40 C to +70 C.

The Industrial switch layer 3 switch is designed to meet the stringent communication standards required in industrial settings, offering solutions for real-time communication and network security challenges. It supports various management methods, including accessing the CLI via the CONSOLE port or TELNET/SSH protocols, accessing the WEB interface via HTTP/HTTPS, and accessing the MIB via SNMP. It also supports a wide range of network protocols, such as TSN, PTP, RIP, OSPF, VRRP, ERPS, CS-Ringv2, STP/RSTP/MSTP, VLAN, QoS, LACP, PIM, IGMP, IGMP Snooping, LLDP, 802.1X, ACL, RMON, DHCPv4, SNTP, port mirroring, DDM, Ping, Traceroute, and more. The switch supports system management functions such as configuration file upload and download, online upgrade, and backup of image files.

Product Features

- Support storm suppression on broadcast frame, multicast frame and unknown frame, and storm detection on broadcast and multicast packet to prevent network storms

-Support static aggregation and dynamic aggregation LACP, which can increase transmission bandwidth, improve link reliability, and achieve network load balancing

-Support 802.1Q VLAN, provide Access, Trunk, and Hybrid interfaces

-Support VLAN division based on MAC, protocol, IP subnet, flow, etc.

-Support MAC address table and aging time limit, static unicast/multicast MAC address binding to interface, to ensure the use of legitimate users

-Support PIM, IGMP, IGMP Snooping and multicast filtering, reduce the broadcast of multicast data in the network, and save network resources

-Support LLDP link layer discovery protocol, obtain LLDP neighbor device information, and monitor the link status, which is convenient for topology management and fault location

-Support ERP Ethernet multi-ring protection technology, provide multi-ring networking, link backup, achieve fast convergence, and improve network stability

-Support VRRP virtual routing redundancy protocol, which allows multiple routing devices to form a virtual router for redundant backup

-Support HTTP, HTTPS, TELNET, SSH, CONSOLE port and other login methods

-Support SNMPv1/v2c/v3, information query, information modification and troubleshooting can be carried out through the MIB network management system to achieve centralized management

-Support RMON remote network monitoring, statistics and alarms for various types of data frames, which can be used for remote monitoring and management of network management system

-Support port security, convert dynamic MAC address into secure dynamic/static/sticky MAC to enhance device security

-Support 802.1X port authentication to authenticate and control access rights of access users

-Support AAA secure network management mechanism, authentication, authorization and accounting through RADIUS and TACACS+ to prevent unauthorized users from logging in

ACL access control lists, multiple frame type filtering rules can be customized, and specified packets can be filtered or rate-limited

-Support QoS quality of service, so that voice, video and important data are preferentially transmitted in network equipment to solve network congestion

-Support port mirroring, which can collect data sent and received by the port for network detection and fault management

-Support DDM digital diagnosis and monitoring, which can monitor the working temperature, voltage, current, sending/receiving optical power and other parameters of the DDM SFP optical module

Ping IPv4/IPv6 and Traceroute IPv4/IPv6 to detect network connectivity and locate fault points

-Support dual power supply redundant power-off alarm and port disconnection alarm, and support relay
