12 ports 10/100/1000M RJ45 +8SFP+4 SFP slot(10GB) Uplink Industrial Switch Managed Layer3 - BISMON | Communication Products - Fiber Optic, Industrial Switch, UTP Cable, OTDR Thailand

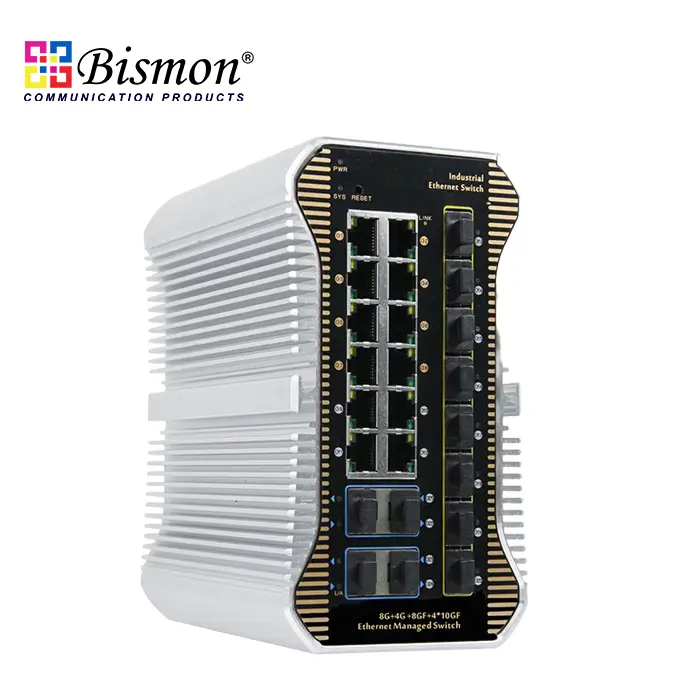

Name: 12 ports 10/100/1000M RJ45 +8SFP+4 SFP slot(10GB) Uplink Industrial Switch Managed Layer3
Brand: BISMON
SKU: B1IPS38248FM
Price: 32800.00 THB
Availability: InStock

12 ports 10/100/1000M RJ45 +8SFP+4 SFP slot(10GB) Uplink Industrial Switch Managed Layer3

▸ คำอธิบายภาษาไทย
B1-IPS38248FM เป็นสวิตช์อีเทอร์เน็ตอุตสาหกรรมระดับ Layer 3 ที่มีการจัดการแบบ Managed พร้อมความสามารถ 10G Uplink ซึ่งออกแบบโดย BISMON โดยมีพอร์ต RJ45 12 พอร์ต (10/100/1000M) และพอร์ต SFP ไฟเบอร์ 8 พอร์ต (100/1000Base-X) รวมถึงพอร์ต SFP+ แบบ 10G อีก 4 พอร์ต เพื่อรองรับการส่งข้อมูลความเร็วสูง สวิตช์นี้มีฟังก์ชันการจัดการเครือข่ายแบบ L3 ครบถ้วน รองรับ IPv4/IPv6 มี Static Route Forwarding กลไกป

Part number : B1-IPS38248FM

Brand : BISMON

Price : 32,800.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 Pcs.

Size : 166*150*90mm

Warranty : 3 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

The B1-IPS38248FM is a L3 10G uplink managed industrial Ethernet fiber switch independently developed by BISMON. it has 12*10/100/1000Base-T RJ45 ports and 8*100/1000Base-X SFP fiber slot ports and 4*1/10G SFP+ fiber slot ports. . Each port can support wire-speed forwarding.

The B1-IPS38248FM has L3 full network management function, IPV4/IPV6 management, software/static route forwarding, security protection mechanisms, complete ACL/QoS policies, and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. Any port can be looped, supporting chain, star, Double star, ring, tangent ring, intersecting ring, coupling ring, self-healing within 20ms of the ring network. When a one-way network fails, communication can be quickly resumed to ensure uninterrupted communication of important applications. This series of models has high reliability, high security, and high manageability. It ensures reliable transmission of critical data, supports remote management, and can be clustered with the NMS network management platform of the optical network to achieve blind management. B1-IPS38248FM industrial grade series products fully comply with industrial product design and materials. The shell is made of aluminum alloy to enhance heat dissipation performance, and has excellent industrial field environment adaptability (including mechanical stability, climatic environment adaptability, electromagnetic environment adaptability, etc.), protection class up to IP40, support dual redundant power supply, low power fanless cooling technology, MTBF average trouble-free working time up to 35 years, 3-year warranty.

L3 managed industrial Ethernet fiber switch with 12*10/100/1000M RJ45 ports and 8*100/1000M SFP slot ports and 4*1/10G uplink SFP+ slot ports. Support dual DC power supply input and DIN rail mounting.

FEATURE

Full gigabit port, 10G uplink

• All series supports Ethernet port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

• Support non-blocking wire-speed forwarding.

• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Strong business processing capability

• IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN and QinQ configuration.

• QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

• ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

• IGMP V1/V2 and IGMP Snooping.

• ERPS/STP/RSTP/MSTP.

• Static and dynamic aggregation.

Security

• 802.1X authentication.

• Port isolation, Storm control.

• IP-MAC-VLAN-Port binding.

Stable and reliable

• CCC, CE, FCC, RoHS.

• Low power consumption, no fan, aluminum casing.

• The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.

Easy operation and maintenance management

• HTTPS, SSLV3, and SSHV1/V2.

• RMON, system log, LLDP, and port traffic statistics.

• CPU monitoring, memory monitoring, Ping test, and cable diagnose.

• Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

DIMENSION

TECHNICAL SPECIFICATION

Model	B1-IPS38248FM
Interface Characteristics
Fixed Port	Power off alarm switch port (FAULT) *1RS232 console port (115200, N, 8,1) 41/10G uplink SFP+ fiber ports (Data)* *1210/100/1000Base-T uplink RJ45 ports (Data) 8100/1000Base-X uplink SFP fiber ports (Data)* 2 set of V+, V- redundant DC power ports (6 Pin Phoenix terminal)
Ethernet Port	Port 1-12 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-500m, 850nm/ 0-300m (10G) Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Management Type	L3
Network Protocol	IEEE802.3 10BASE-T,IEEE802.3i 10Base-T,IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3ae 10GBase-LR/SR, IEEE802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	176Gbps (non-blocking)
Forwarding Rate@64byte	89.28Mpps
CPU	500MHz
DRAM	2G
FLASH	128M
MAC	32K
Buffer Memory	32M
Jumbo Frame	9.6K
LED Indicator	Power: PWR (Green), System: SYS (Green) Fiber Port : L/A (Green), Network: Link (Yellow)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
Power Supply
Power Consumption	Standby<30W, Full load<36W
Working Voltage	DC12-48V, 6 Pin industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 24V/60W industrial power supply
Physical Parameter
Operation TEMP / Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+85°C, 5%~95% RH Non condensing
*Dimension (LWH)*	*16615090mm*
Net /Gross Weight	2.1kg / 2.3kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Feature
Interface	IEEE802.3X (Full-duplex) Port temperature protection setting No connection port automatic sleep Port green Ethernet Energy-saving setting Broadcast storm control based on port speed SFP+ optical port DDMI real-time digital diagnosis The speed limit of the message flow in the access port, minimum particle size is 64Kbps.
Layer 3 Features	IPV4 Equal Cost Routing NG protocol, max 1000 entries ARP protocol, max 1000 entries IPV4/IPV6 VRRP, max group is 255 Pingv6, Telnetv6, TFTPv6, DNSv6, ICMPv6 IPV4/IPV6 VLANIF interface supports up to 128 IPV4/IPV6 static route/ default route supports up to 128 entries L3 network management function, IPV4/IPV6 dual-stack management IPV4 dynamic routing, RIPv1/v2, OSPFv2, BGP4+, 4000 routing entries IPV6 dynamic routing OSPFv3, BGP+, RIPng, IPV6 management, 1000 routing entries L3 routing and forwarding, support communication between different network segments and different VLAN
VLAN	Port configuration of Access, Trunk, Hybrid. VLAN based on MAC, VLAN based on the protocol Voice VLAN, QinQ configuration, 4K VLAN based on port, IEEE802.1q
Port Aggregation	LACP, Static aggregation Max 12 aggregation groups and 8 ports per group.
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Industrial Ring Network Protocol	G.8032 (ERPS), Recovery time less than 20ms 250 Ring at most, Max 250 devices per ring.
Multicast	MLD Snooping v1/v2, Multicast VLAN IGMP Snooping v1/v2, Max 1024 multicast groups, Fast log out
Port Mirroring	Bidirectional data mirroring based on port
QoS	Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Rate Limiting, Stream based redirection *Flow-based Packet Filtering, 8Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark**
ACL	ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	Port based IEEE802.1X authentication SSL guarantees data transmission security Quad binding function of IP+MAC+VLAN+ports MAC address learning limit, MAC address black hole Anti DoS attack, Port broadcast message suppression Hierarchical user management and password protection SSH 2.0 provides a secure encrypted channel for user login Host data backup mechanism, ARP intrusion detection function Port isolation, IP Source Guard, ARP message speed limit function IP Source Guard function, AAA & RADIUS & TACACS+ certification
DHCP	DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay
Management	Web network management (https) Link Layer Discovery Protocol(LLDP) Viewing CPU Instant Utilization Status NTP clock, One click restore, SNMP V1/V2/V3 Cable status check, Ping detection, System work log ONV NMS platform cluster management (LLDP+SNMP) Console/AUX Modem/Telnet/CLI command line configuration FTP, TFTP, Xmodem, SFTP file upload and download management
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable

Product Detail

12 ports 10/100/1000M RJ45 +8SFP+4 SFP slot(10GB) Uplink Industrial Switch Managed Layer3

Download Datasheet
