Product Description

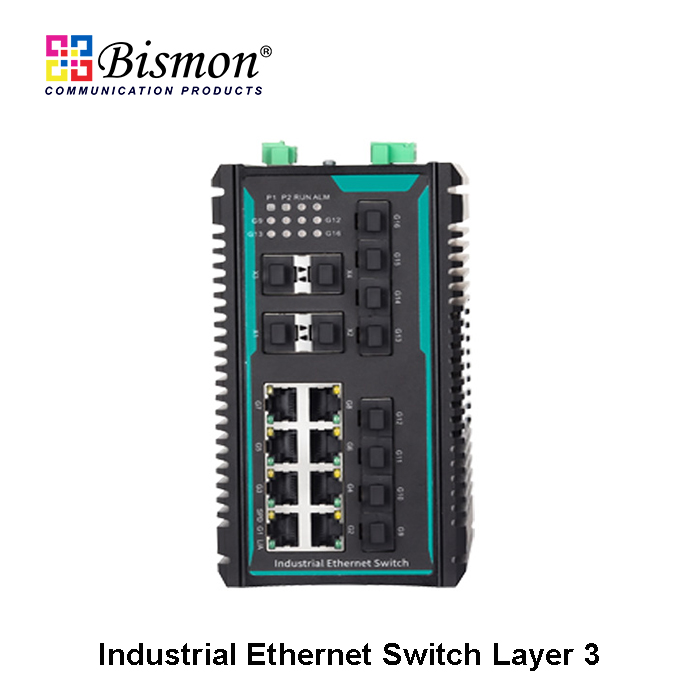

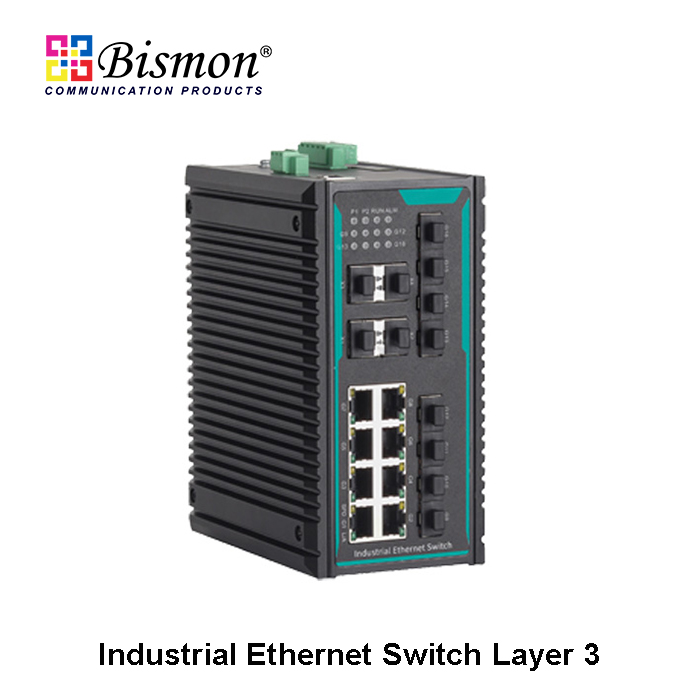

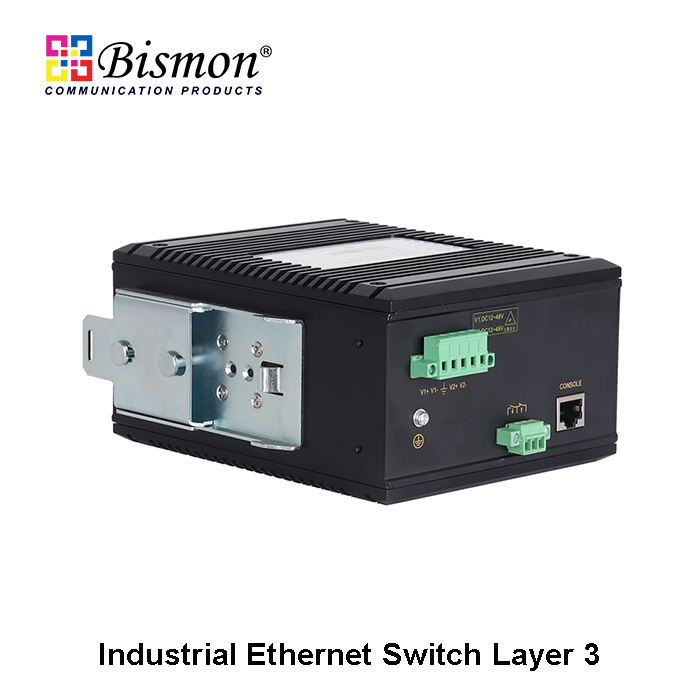

B1-BMIND8GT4XG8GF-L3 layer 3 10G industrial Ethernet switch supports 4*10G SFP + ports, 8*1G SFP ports, and 8*1G RJ45 ports. It adopts a storage and forwarding mechanism and has strong bandwidth processing capabilities, automatically troubleshooting data packet errors, reducing transmission failures, and easily supporting 10G networking to ensure stable, reliable, and efficient data transmission. The product uses industrial grade components, combined with high standard system design and production control. Standard 19-inch 1U rack type installation, high strength durable aluminum alloy shell, fanless efficient heat dissipation, -40? ~ + 75? wide temperature work, high standard industrial protection design, can adapt to a variety of harsh working environment, stable communication performance.

B1-BMIND8GT4XG8GF-L3 layer-3 switch meets the main communication standards in the industrial field, and meet the technical requirements such as real-time communication, network security and so on. The product provides various ways of managing switches, such as accessing the switch command line (CLI) through the CONSOLE port or TELNET/SSH protocol, the switch WEB interface through HTTP / HTTPS, and the device MIB through the SNMP protocol. Multiple network protocols and industry standards, such as RIP, OSPF, VRRP, PIM, EAPS, ERPS, STP/RSTP/MSTP, VLAN, QoS, LACP, IGMP, IGMP Snooping, GMRP, LLDP, 802.1X, ACL, DHCP, SNTP, port mirroring, DDM, Ping, Tracert, etc. In terms of installation, the flexible choice of DIN-rail mount type or desktop mount type. The products are widely used in comprehensive energy, smart city, rail transit, intelligent transportation, smart factory, industrial automation and other fields.

Product Features

• -Support storm suppression of broadcast, multicast and unknown unicast, support broadcast and multicast packet storm detection to prevent broadcast storm
• -Support the link static aggregation and dynamic aggregation LACP, which can increase the transmission bandwidth, improve the link reliability and realize the network load sharing
• -Support port mirroring, collecting port ingress/egress, and bidirectional data for network detection and fault management
• -Support 802.1Q VLAN, provide Access, Trunk, Hybrid interface easy to divide multiple broadcast domain, enhance the security of the network
• -Support VLAN division based on port, MAC, protocol, IP subnetwork, etc., which can be applied to different environments
• -Support GVRP protocol, realize dynamic distribution, registration and propagation of VLAN attributes, and maintain dynamic VLAN
• -Support MAC address table and aging time limit, static unicast / multicast MAC address bound with interface to ensure the use of legitimate users
• -The PIM, IGMP, GMRP, IGMP Snooping and other multicast protocols are supported to reduce the broadcast of multicast data in the network and save network resources
• -Support LLDP link layer discovery protocol, obtain LLDP neighbor device information, conduct link status monitoring, facilitate topology management and fault location
• -Support ERPS Ethernet multi-loop protection technology, provide multi-loop networking, link backup, achieve fast convergence, improve network stability
• -Support STP, RSTP, MSTP generation tree protocol, can eliminate network loop, improve network reliability
• -Support EAPS loop protection protocol and CS-RingV2 private loop network protocol, enhance the reliability of system communication
• -Support loop back detection to prevent the network from ring and causing a network storm
• -Support the VRRP virtual routing redundancy protocol, forming multiple routing devices into a virtual router to achieve redundant backu
• -Support IPv4 static routing configuration, RIPv1/v2, OSPF dynamic routing protocol, realize routing and forwarding-
• -Support HTTP, HTTPS, TELNET, SSH network access mode, SSH can provide a secure remote login
• -Support SNMPv1/v2c/v3, through the MIB network management system can be information query, information modification and troubleshooting, to achieve centralized management
• -Support QoS service quality, give priority to voice, video and important data in network devices, and solve network congestion
• -Support ACL access control list, filtering TCP / UDP / ICMP / IGMP messages based on source / destination IP and MAC address
• -Support 802.1X port authentication, authentication and access control for access users
• -Support dual power redundancy drop relay alarm and upper computer alarm, support port drop upper computer alarm
