Specification

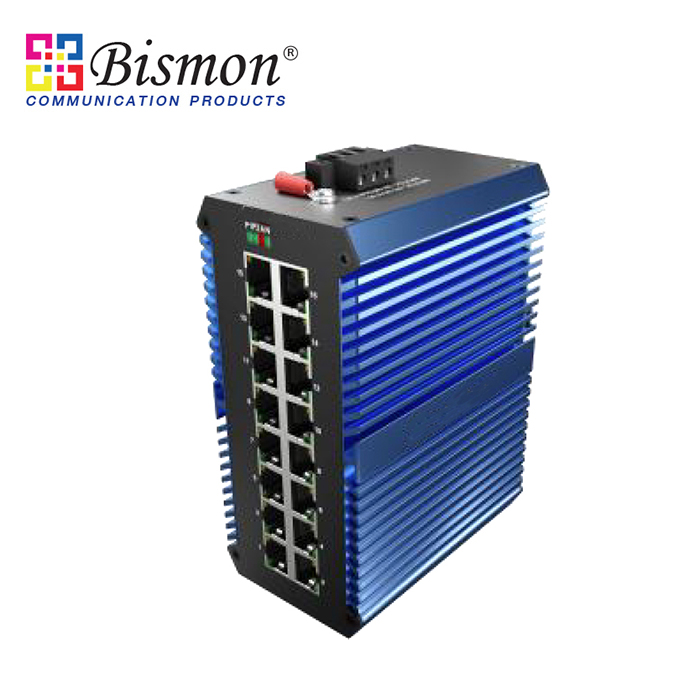

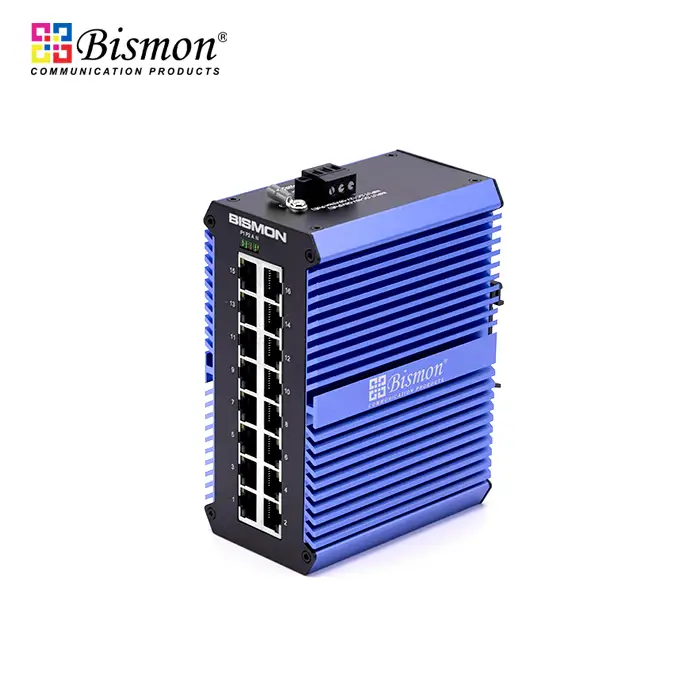

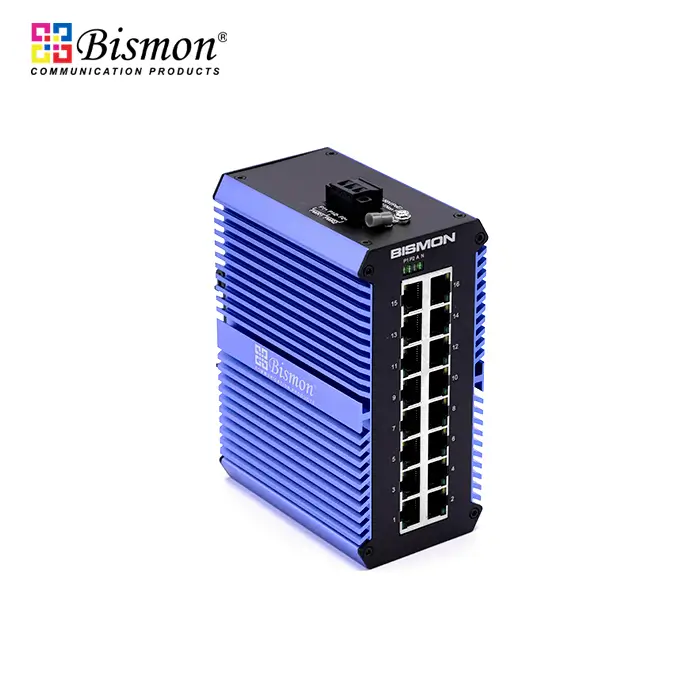

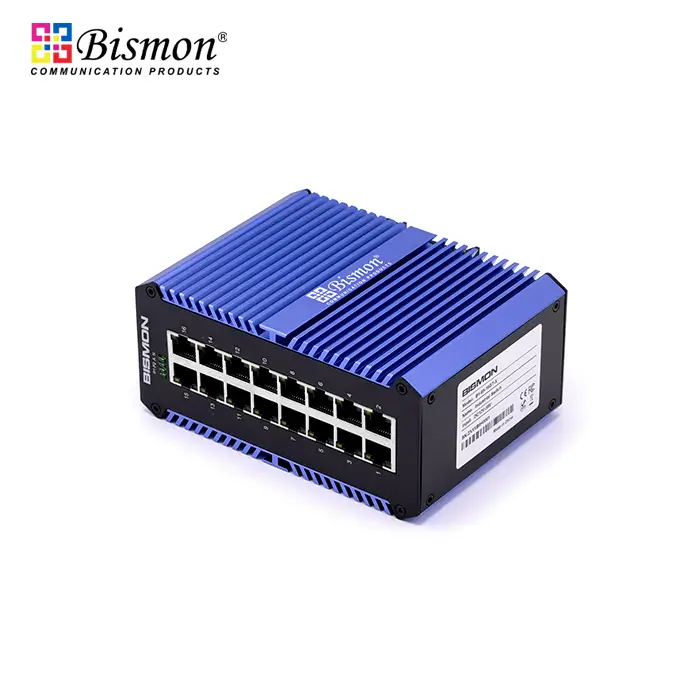

Fixed port                                                        16*10/100/1000Mbps RJ45 Port

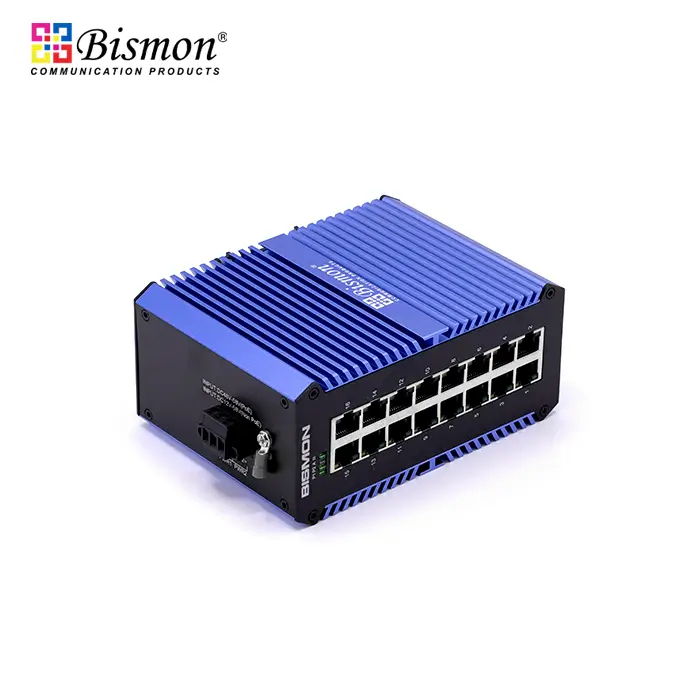

Power interface                                              Phoenix terminal, redundant dual power supply

LED Indicators                                                 PWR,Link/ACT LED

Cable type & Transmission distance

Twisted-pair                                                    0-100m (CAT5e,CAT6)

Monomode optical fiber                                /

Multimode (optical) fiber                               /

Network Topology

Ring topology                                                  Unsupported

Star topology                                                   Support

Bus topology                                                   Support

Tree topology                                                  Support

Hybrid topology                                              Support

Electrical Specifications

Input voltage                                                   DC10-58V

Layer 2 Switching

Switching capacity                                         40G

Packet forwarding rate                                  50.59Mpps

MAC address table                                        16K

VLAN                                                                Unsupported

Buffer                                                               8M

Forwarding delay                                           <10us

MDX/MIDX                                                      Support

Flow control                                                    Support

Jumbo Frame                                                  Support 10Kbytes

Environment

Operating temperature                                -40?~+75?

Storage temperature                                    -40?~+85?

Relative humidity                                          5%~95% non-condensing

Thermal methods                                          Fanless, natural cooling

MTBF                                                               100,000 hours

Mechanical Dimensions

Product size                                                     161*115*53mm

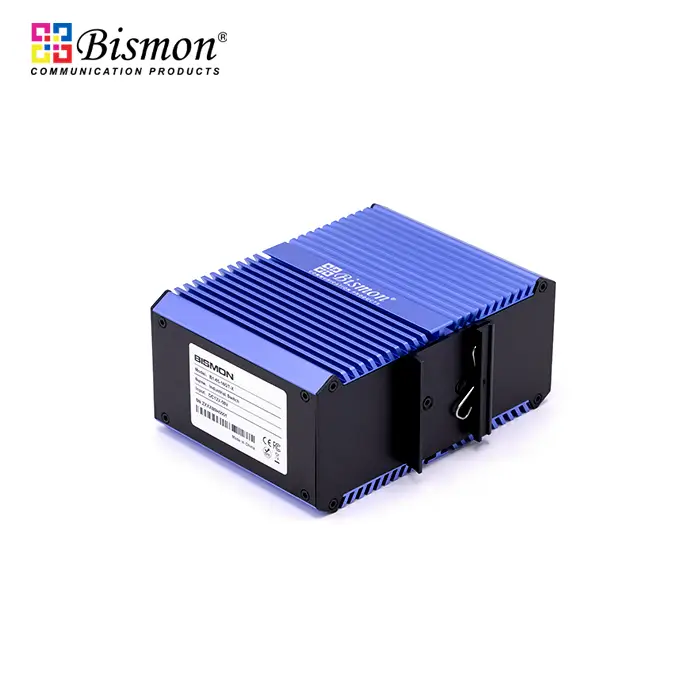

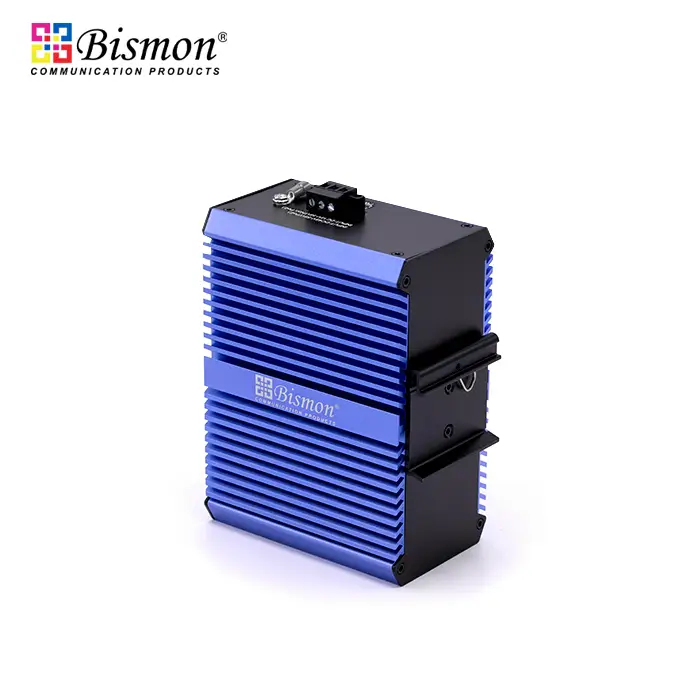

Installation Method                                        DIN rail

Weight                                                              0.85KG around

EMC & Ingress Protection

IP Level                                                              IP50

Surge protection of Power                             IEC 61000-4-5   Level X  (10KV/10KV) (8/20us)

Surge protection of Ethernet port                IEC 61000-4-5   Level X  (6KV/4KV) (10/700us)

RS                                                                       IEC 61000-4-3   Level 3  (10V/m)

EFI                                                                      IEC 61000-4-4   Level 3  (1V/2V)

CS                                                                       IEC 61000-4-6   Level 3  (10V/m)

PFMF                                                                 IEC 61000-4-8   Level 4  (30A/m)

DIP                                                                     IEC 61000-4-11   Level 3 (10V)

ESD                                                                    IEC 61000-4-2   Level 4  (8K/15K)

Free fall                                                             0.5m

Authentication

Authentication                                                CCC, CE, FCC, RoHS

Accessories

Accessories                                                      Device, Terminals, Specification, Certificate, power adapter(optional)
