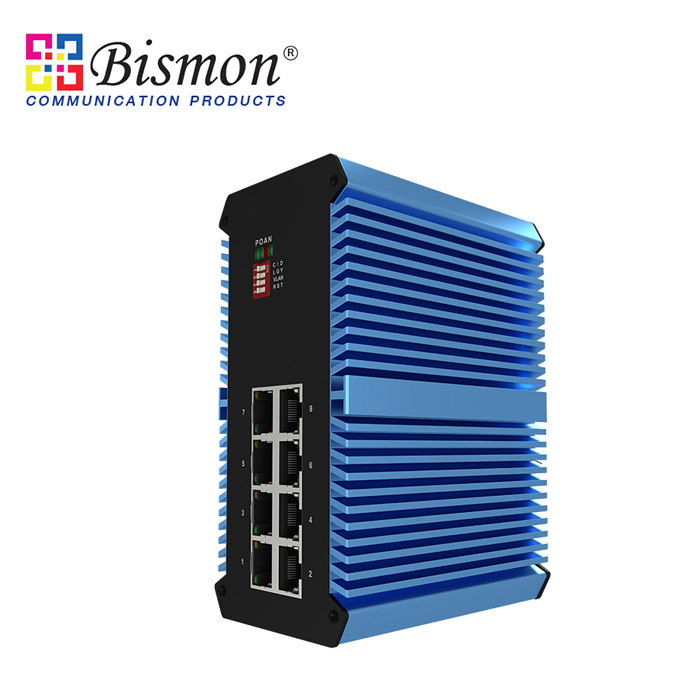

Specification

Fixed port                                                        8*10/100/1000Base-T

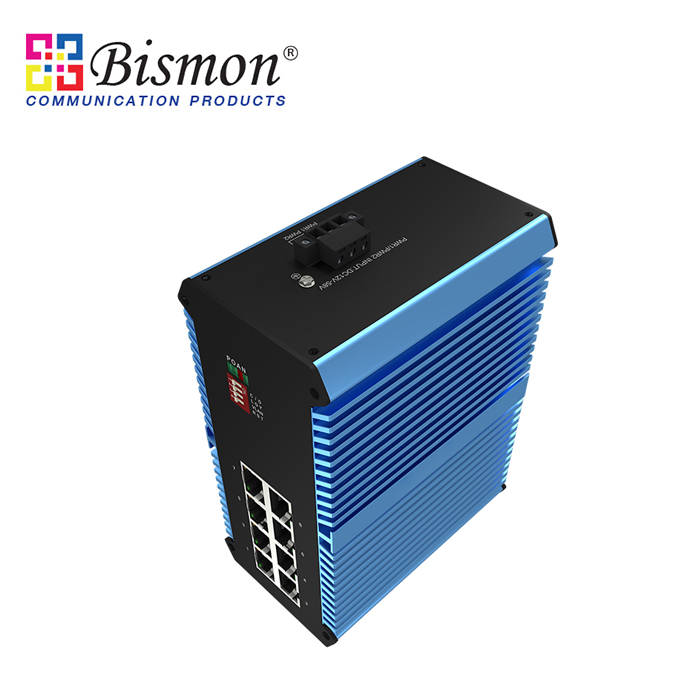

Power interface                                              Phoenix terminal, redundant dual power supply

LED Indicators                                                 PWR, OPT, NMC, ALM

DIP Switch

1 C/D                                                               Reserve

2 LGY                                                               Stand/Non-standard PoE Mode

3 VLAN                                                            Reserve

4 RST                                                               Reset

Cable Type & Transmission Distance

Twisted-pair                                                    0-100m (CAT5e,CAT6)

Monomode optical fiber                                /

Multimode (optical) fiber                               /

Network Topology

Ring topology                                                 Unsupported

Star topology                                                  Support

Bus topology                                                   Support

Tree Topology                                                 Support

Hybrid topology                                             Support

Electrical Specifications

Input voltage                                                   DC12-58V

Total Power consumption                              <6W

Voltage Alarm                                                  Support

Layer 2 Switching

Switching capacity                                          26G

Packet forwarding rate                                   19.34Mpps

MAC address table                                          16K

Buffer                                                                2M

Forwarding delay                                            <5us

MDX/MIDX                                                       Support

Flow control                                                     Support

Jumbo Frame                                                   Support 110K Bytes

WatchDog                                                         Support

Environment

Operating temperature                                  -40C~+75C (The device is tested for 8 hours at temperatures in 85°C)

Storage temperature                                      -40C~+85C

Relative humidity                                            5%~95% non-condensing

Thermal methods                                            Fanless, natural cooling

MTBF                                                                 100,000 hours

Mechanical Dimensions

Product size                                                     143X104X65mm

Installation Method                                        DIN rail

Weight                                                               0.75KG around

EMC & Ingress Protection

IP Level                                                             IP50

Surge protection of Power                            IEC 61000-4-5   Level X  (10KV/10KV) (8/20us)

Surge protection of Ethernet port               IEC 61000-4-5   Level X  (6KV/4KV) (10/700us)

RS                                                                       IEC 61000-4-3   Level 3  (10V/m)

EFI                                                                      IEC 61000-4-4   Level 3  (1V/2V)

CS                                                                       IEC 61000-4-6   Level 3  (10V/m)

PFMF                                                                 IEC 61000-4-8   Level 4  (30A/m)

DIP                                                                     IEC 61000-4-11   Level 3 (10V)

ESD                                                                    IEC 61000-4-2   Level 4  (8K/15K)

Free fall                                                             0.5m

Authentication

Authentication                                                 CCC, CE, FCC, RoHS

Accessories

Accessories                                                      Device, Terminals, Specification, Certificate, power adapter(optional)
