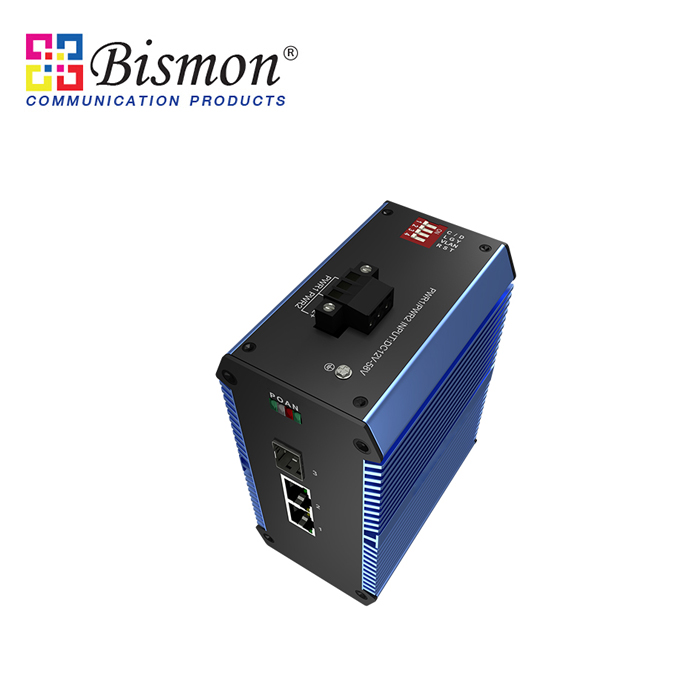

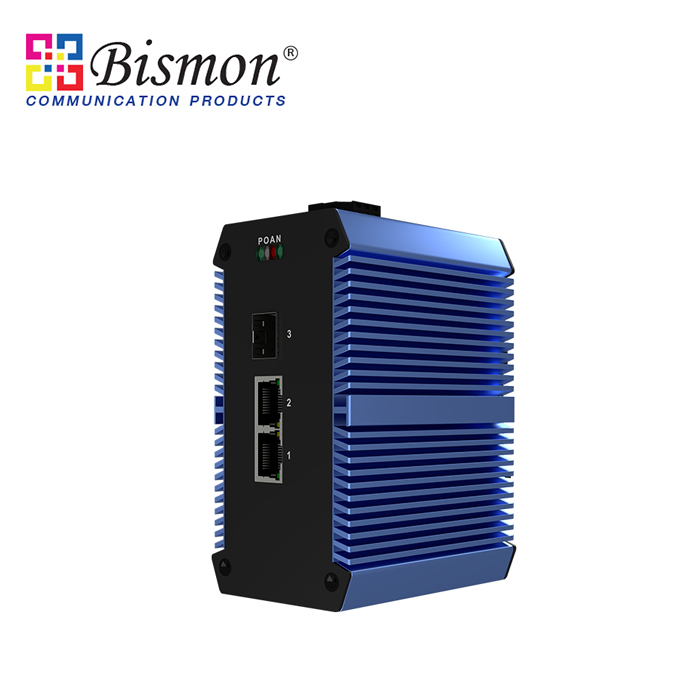

Overview
Industrial grade Switch 2 port Gigabit(10/100/1000Mbps) uplink 1xSFP slot fiber optic port รองรับ1000Mbps ทั้ง SX, LX, ZX โดยขึ้นอยู่กับ module transceiver SFP Mini GBIC รองรับระยะได้ตั้งแต่ 10,20,40-120km. รองรับ Input Voltage: DC-12-58V, สามารถทำางานได้ที่ อุณหภูมิ -40 ถึง 75 องศาเซลเซียส, รองรับการใช้งานภายนอกอาคารได้ตามมาตรฐาน IP50 Fanless design และ Antistatic ได้ที่ 8KV-15KV, support DIN-Rail, Standard complies CCC, RoHs, FCC, CE, ISO
Feature
Management Type : Unmanaged
Shell : IP50, fanless design
Anti-static : 8~15KV
Input Voltage : DC12~58V
Operating Temperature : -40°C~75°C
Certification : CCC, RoHS, FCC, CE
Main & Special Features
• IP50
• Operation temperature: -40 C-85 C
• Aluminum shell, high dissipation capacity
• Surge protection of power: 10KV
• Surge protection of Ethernet port: 6KV
• Anti-static: 8KV-15KV
• Intelligent PoE, support standard & nonstandard PoE
• PoE power supply circuit protection
• Limitless networking
• Dual-core management module system (support upgrade)
• Watch dog, Dying-gasp, Voltage alarm, Remote PD reset, PD-RED
• Support ERPS & XPTN ring, self-healing time 18m
• Scodeno industrial internet operation system IIOS
.jpg)
.jpg)
Specification
Provider Mode Ports
Fixed port 1*1000Base-X, 2*10/100/1000Base-T
Power interface Phoenix terminal, redundant dual power supply
LED Indicators PWR?OPT ,NMC?ALM
DIP Switch
1 C/D Remote PD Reset
2 LGY Stand/Non-standard PoE Mode
3 VLAN Port Isolation
4 RST Reset
Cable type & Transmission distance
Twisted-pair 0-100m (CAT5e,CAT6)
Monomode optical fiber 20/40/60/80/100KM
Multimode (optical) fiber 550m
Network Topology
Ring topology Unsupported
Star topology Support
Bus topology Support
Tree Topology Support
Electrical Specifications
Input voltage DC12-58V
Total Power consumption <6W
Voltage Alarm Support
Layer 2 Switching
Switching capacity 14G
Packet forwarding rate 10.416Mpps
MAC address table 8K
VLAN Unsupported
Buffer 1M
Forwarding delay <5us
MDX/MIDX Support
Flow control Support
Jumbo Frame Support 10K Bytes
WatchDog Support
Port Isolation Support
Environment
Operating temperature -40 °C~+75 °C The device is tested for4 hours at temperatures in 85 °C
Storage temperature -40 °C~+85 °C
Relative humidity 5%~95% non-condensing
Thermal methods Fanless, natural cooling
MTBF 100,000 hours
Mechanical Dimensions
Product size 143X104X48mm

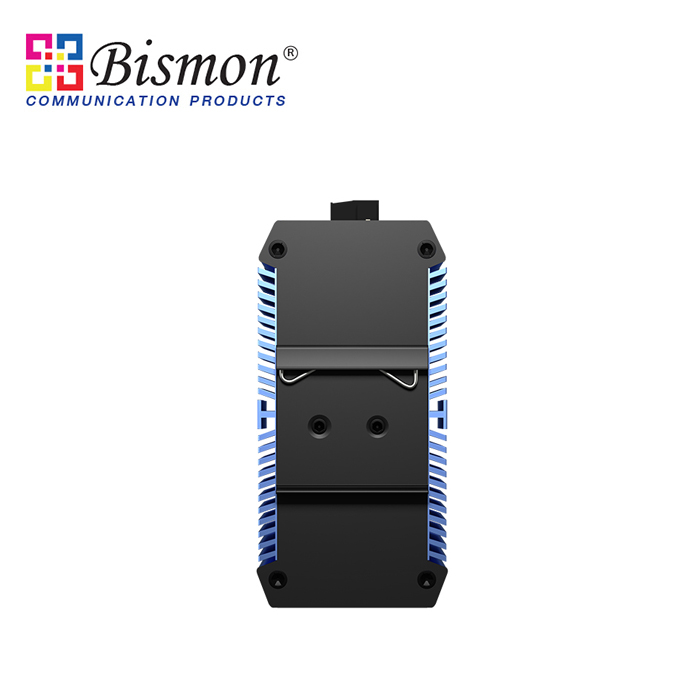

Installation Method DIN rail
Weight 0.45KG around
EMC&INGRESS PROTECTION
IP Level IP50
Surge protection of Power IEC 61000-4-5 Level X (6KV/6KV) (8/20us)
Surge protection of Ethernet port IEC 61000-4-5 Level X (4KV/4KV) (10/700us)
RS IEC 61000-4-3 Level 3 (10V/m)
EFI IEC 61000-4-4 Level 3 (1V/2V)
CSIEC 61000-4-6 Level 3 (10V/m)
PFMF IEC 61000-4-8 Level 4 (30A/m)
DIP IEC 61000-4-11 Level 3 (10V)
ESD IEC 61000-4-2 Level 4 (8K/15K)
Free fall 0.5m
Authentication
CCC, CE, FCC, RoHS
Accessories
Device, Terminals, Specification, Certificate, power adapter(optional)
