Specification

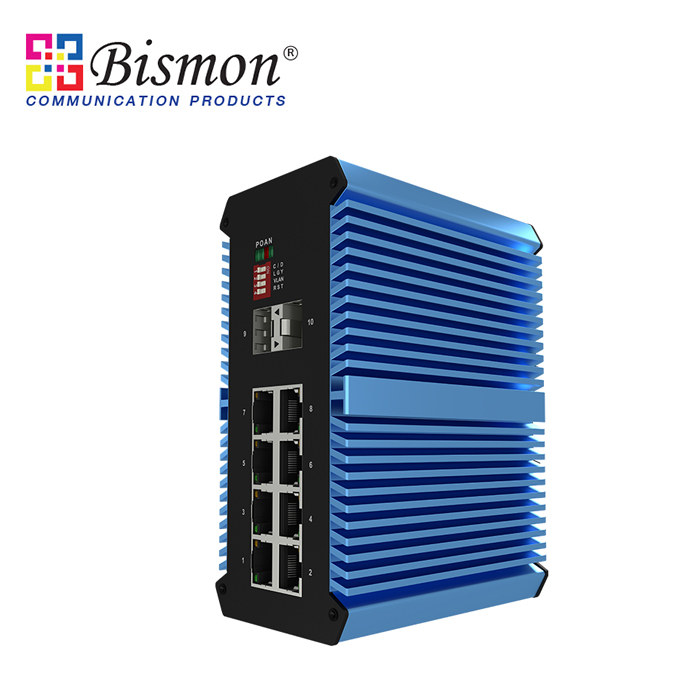

Fixed port                                                        2*1000Mbps SFP Port, 8*10/100/1000Mbps RJ45 Port

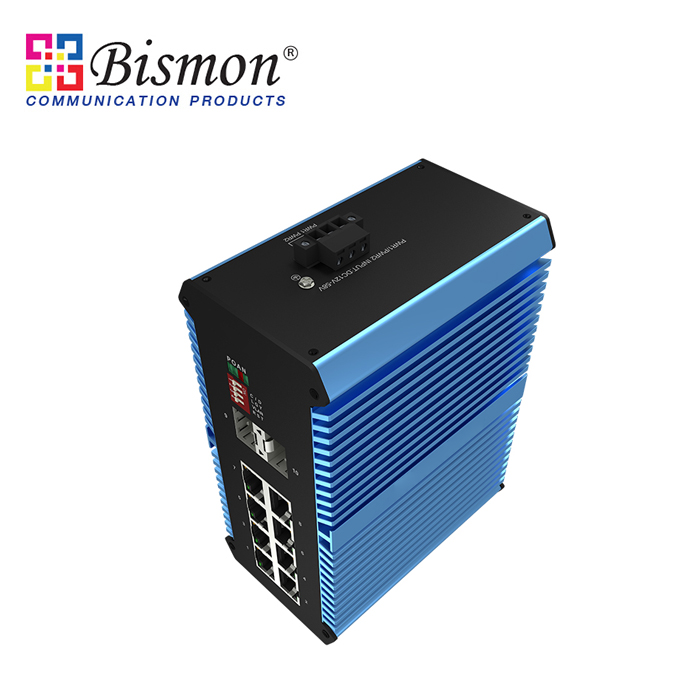

Power interface                                              Phoenix terminal, redundant dual power supply

LED Indicators                                                 PWR, OPT, NMC, ALM

DIP Switch

1 C/D                                                                Remote PD Reset

2 LGY                                                                Stand/Non-standard PoE Mode

3 VLAN                                                             Port Isolation

4 RST                                                                Reset

Cable Type & Transmission Distance

Twisted-pair                                                    0-100m (CAT5e,CAT6)

Monomode optical fiber                               20/40/60/80/100KM

Multimode (optical) fiber                             550m

Network Topology

Ring topology                                                Unsupported

Star topology                                                 Support

Bus topology                                                  Support

Tree Topology                                                 Support

Hybrid topology                                             Support

Electrical Specifications

Input voltage                                                   DC12~58V(Non-PoE), DC48~58V(PoE)

Total Power consumption                            <6W(Non-PoE), <246W(PoE)

Voltage Alarm                                                 Support

PoE

PoE port                                                          1-8

PoE Protocol                                                  802.3af, 802.3at

Pin Assignment                                             1,2,3,6

PoE Mode                                                      Standard & non-standard are supported

PoE Management                                         Unsupported

Remote PD Reset                                          Support

Layer 2 Switching

Switching capacity                                        26G

Packet forwarding rate                                19.34Mpps

MAC address table                                       16K

Buffer                                                              2M

Forwarding delay                                          <5us

MDX/MIDX                                                     Support

Flow control                                                   Support

Jumbo Frame                                                 Support 10Kbytes

WatchDog                                                       Support

Port Isolation                                                  Support

Environment

Operating temperature                                  -40C~+75C (The device is tested for 8 hours at temperatures in 85°C)

Storage temperature                                      -40C~+85C

Relative humidity                                            5%~95% non-condensing

Thermal methods                                            Fanless, natural cooling

MTBF                                                                 100,000 hours

Mechanical Dimensions

Product size                                                     143X104X65mm

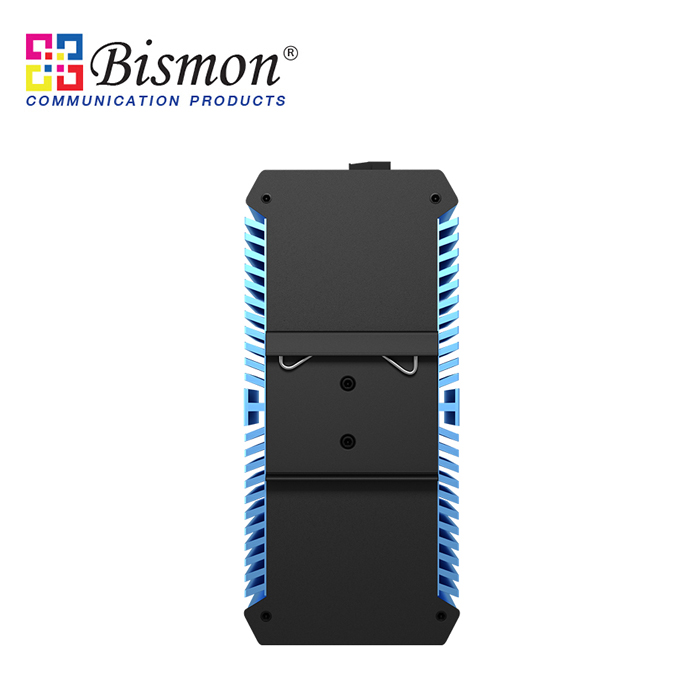

Installation Method                                       DIN-rail

Weight                                                             0.75KG around

EMC & Ingress Protection

IP Level                                                            IP50

Surge protection of Power                           IEC 61000-4-5   Level X (10KV/10KV) (8/20us)

Surge protection of Ethernet port              IEC 61000-4-5   Level X (6KV/4KV) (10/700us)

RS                                                                      IEC 61000-4-3   Level 3 (10V/m)

EFI                                                                     IEC 61000-4-4   Level 3 (1V/2V)

CS                                                                      IEC 61000-4-6   Level 3 (10V/m)

PFMF                                                                IEC 61000-4-8   Level 4 (30A/m)

DIP                                                                    IEC 61000-4-11   Level 3 (10V)

ESD                                                                   IEC 61000-4-2   Level 4 (8K/15K)

Free fall                                                           0.5m

Authentication

Authentication                                               CCC, CE, FCC, RoHS

Accessories

Accessories                                                     Device, Terminals, Specification, Certificate, power adapter(optional)
