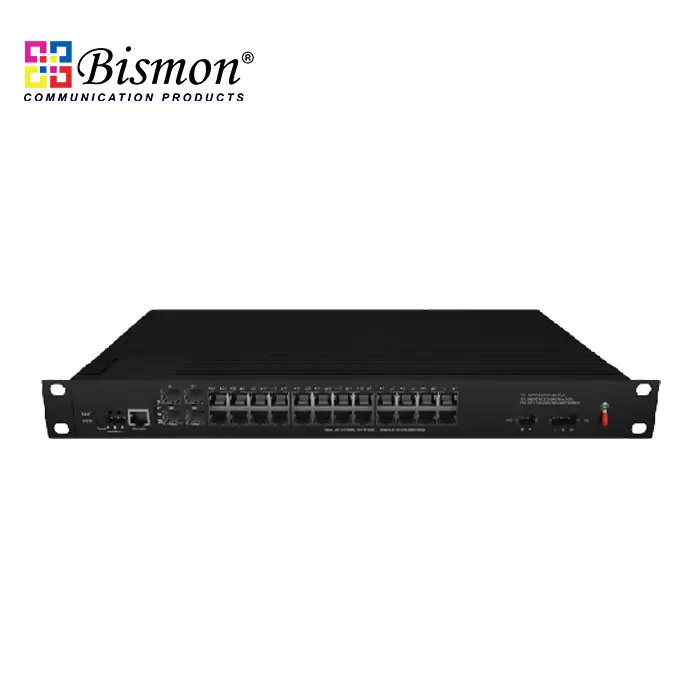

Provider Mode Ports

Fixed port

 4*1000 Base-X ,24*10/100/1000 Base-T

Power interface

 Phoenix terminal, dual power redundancy

LED Indicators

 PWR ,Link/ACT LED

Cable type&Transmission distance

Twisted-pair

 0-100m (CAT5e,CAT6)

Monomode optical fiber

 20/40/60/80/100KM

Multimode optical fibre

 550m

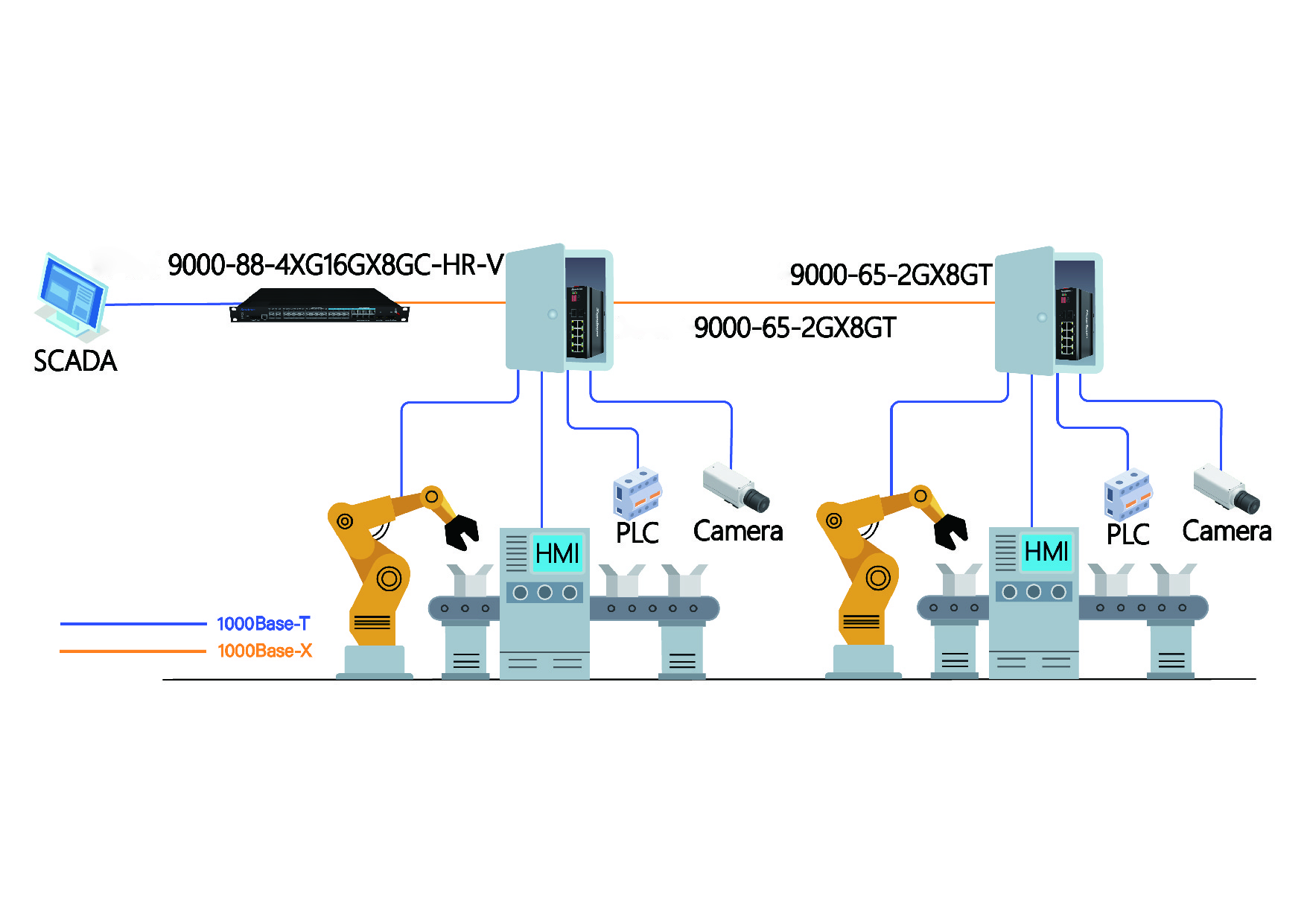

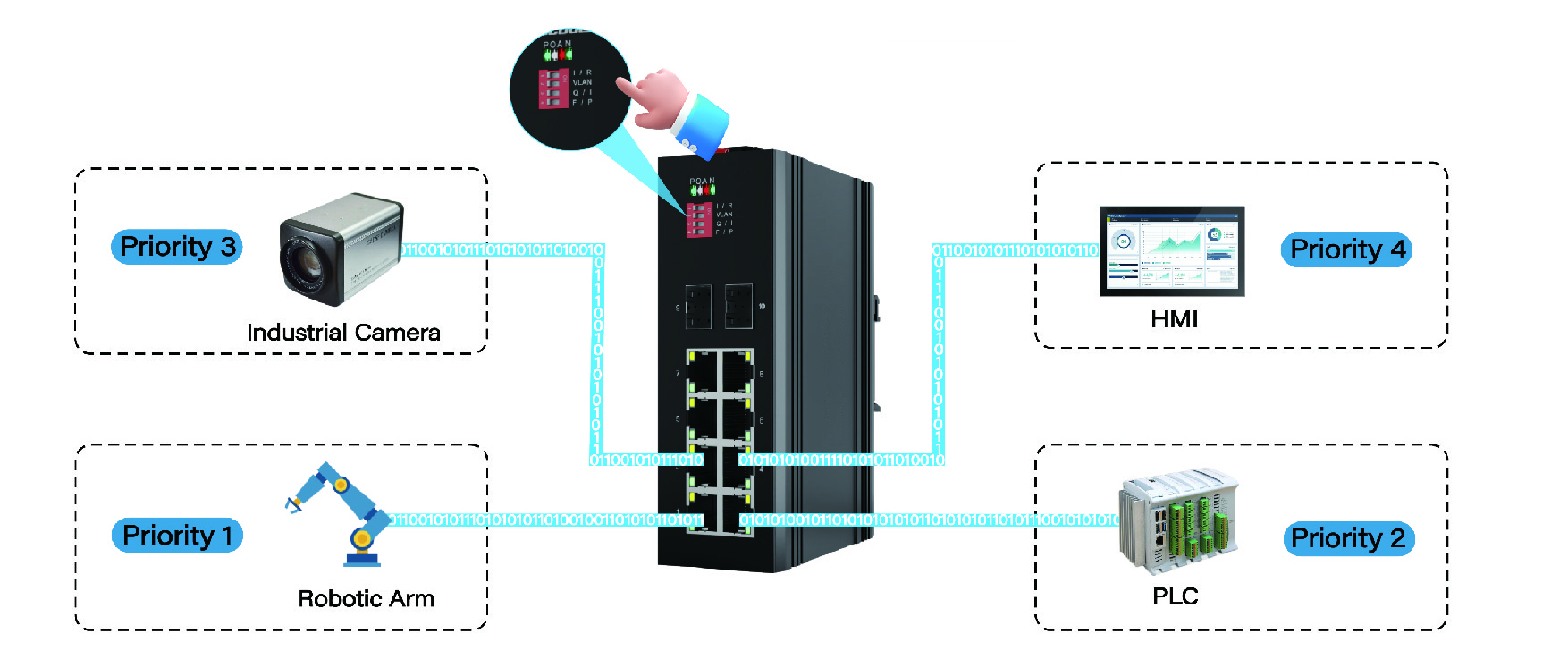

Network Topology

Ring topology

 Not Supported

Star topology

Support

Bus topology

 Support

Tree Topology

 Support

Electrical Specifications

Input voltage

Not PoE:DC12-58V
PoE:DC48-58V

Total Power consumption

 Not PoE<26W
PoE<386W

PoE supports optional configuration

PoE port

 1-24

PoE Protocol

 802.3af ,802.3at

Pin Assignment

 1,2,3,6

PoE support++optional

PoE port

 1-24

PoE Protocol

 802.3af ,802.3at ,802.3bt(1-2& 23-24Single interface supports a maximum of 60W)

Pin Assignment

 1245+  3678-

Layer 2 Switching

Switching capacity

 68G

Packet forwarding rate

 50.59Mpps

MAC address table

 16K

Buffer

 12M

Forwarding delay

 <10us

MDI/MDIX

  Support

Jumbo Frame

  Supports 10Kbytes

Mechanical Dimensions

Product size

 94*104*143mm

Installation Method

 Card rail installation

Weight

1KG

Environment

Operating temperature

Not PoE: -40°C ~ +75°C
PoE:  -40°C ~ +70°C

Storage temperature

-40°C ~ +85°C

Relative humidity

5%~95% non-condensing

Thermal methods

Fanless design, natural heat dissipation

MTBF

100,000 hour

EMC&INGRESS PROTECTION

IP Level

IP40

Surge protection of Power

IEC 61000-4-5  Level X(6KV/6KV)( 8/20us)

Surge protection of Ethernet port

IEC 61000-4-5  Level 4(4KV/4KV)( 10/700us)

RS

IEC 61000-4-3  Level 3( 10V/m)

EFI

IEC 61000-4-4  Level 3( 1V/2V)

CS

IEC 61000-4-6  Level 3( 10V/m)

PFMF

IEC 61000-4-8  Level 4( 30A/m)

DIP

IEC 61000-4-11  Level 3( 10V)

ESD

IEC 61000-4-2  Level 4( 8K/15K)

Free fall

0.5m

Authentication

Authentication

Inspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology?CE/FCC/RoHS
