OVERVIEW

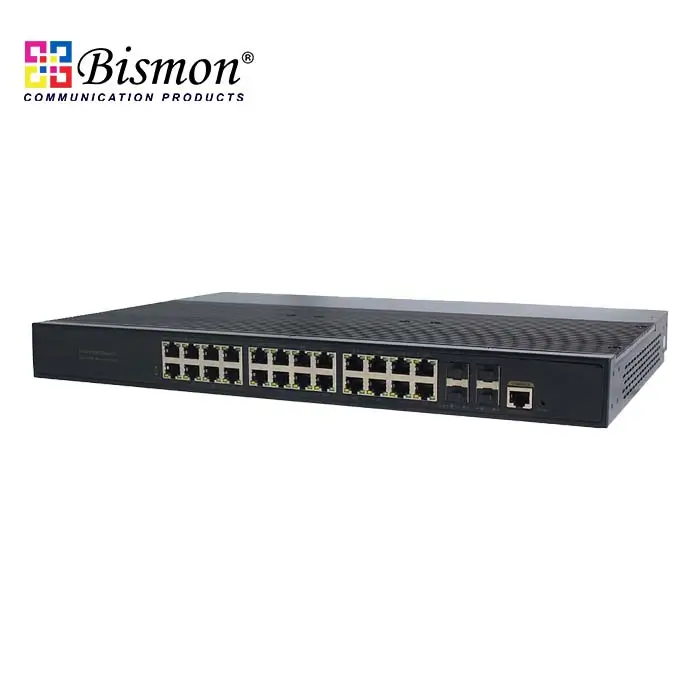

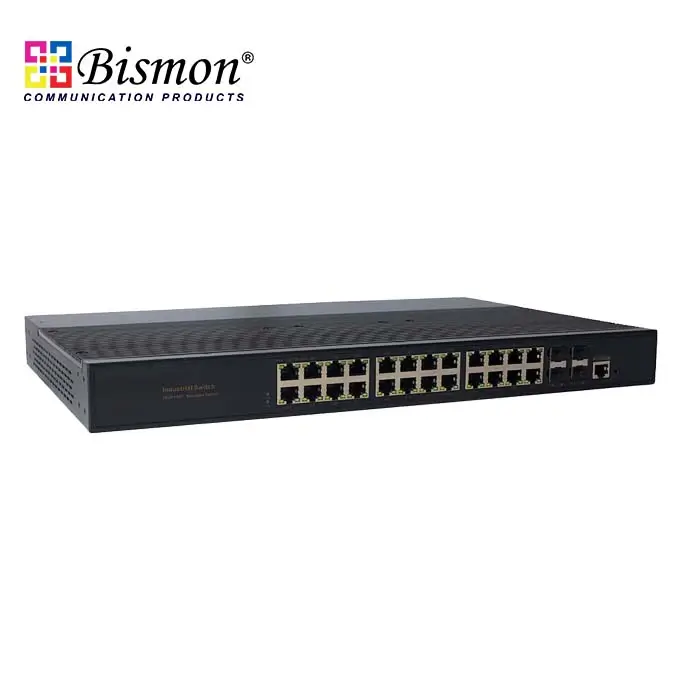

The B1-IPS33028FM is a full gigabit managed industrial Ethernet fiber switch independently developed by BISMON. It has 24*10/100/1000Base-T RJ45 ports and 4*100/1000Base-X SFP fiber slot ports. Each port can support wire-speed forwarding.
The B1-IPS33028FM has L2+ full network management function, supports IPV4 management, static route full line rate forwarding, complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as port traffic control, VLAN division, and SNMP through the Web network management mode. It meets the needs of various industrial Ethernet application environments and is suitable for industrial, intelligent transportation, rail transit, power industry, mining, petroleum, marine, metallurgical and green energy construction to form a cost-effective, stable and reliable communication network.
FEATURE
Gigabit access, Gigabit SFP port uplink
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
- A combination of Gigabit Ethernet port and Gigabit SFP port to meet the networking requirements of various scenarios.
Strong business processing capability
- STP/RSTP/MSTP.
- Static and dynamic aggregation.
- IGMP V1/V2 and IGMP Snooping.
- IEEE802.1Q VLAN, flexible VLAN division, and QinQ configuration.
- QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.
- ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.
Security
- 802.1X authentication.
- Port isolation,Storm control.
- IP-MAC-VLAN-Port binding.
Stable and reliable
- Low power consumption, No fan, aluminum shell.
- Self-developed power supply, high redundancy design, providing a long term and stable power output.
- CCC,CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link.

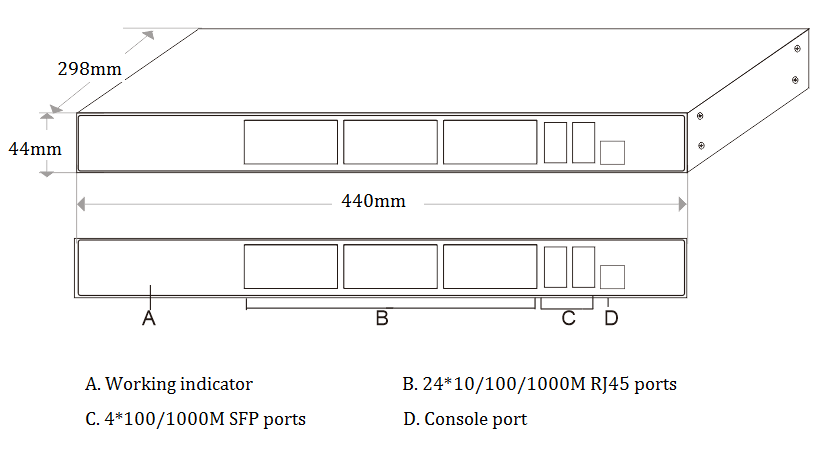

DIMENSION
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS33028FM
|
|
Interface Characteristics
|
|
Fixed Port
|
1*Console port (115200,N,8,1)
Power-off alarm switch (FAULT)
2*AC100-240V power input ports
24*10/100/1000Base-T RJ45 ports (Data)
4*100/1000Base-X uplink SFP fiber ports (Data)
2*DC12-48V power input ports (support anti-reverse protection)
|
|
Ethernet Port
|
Port 1-24 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
|
|
Optical Fiber Port
|
Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
|
|
Chip Parameter
|
|
Network Management Type
|
L2+
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
56Gbps (non-blocking)
|
|
Forwarding Rate @64byte
|
41.7Mpps
|
|
CPU(Hz)
|
500M
|
|
DRAM
|
1G
|
|
Flash
|
256M
|
|
MAC
|
8K
|
|
Buffer Memory
|
4.1M
|
|
LED Indicator
|
Power: PWR (Yellow), System: SYS(Yellow), Network: Link (Yellow), Fiber port: L/A (Green)
|
|
Reset Switch
|
Yes, Press and release for 10 seconds to restore factory settings
|
|
Power Supply
|
|
Total PWR / Input Voltage
|
60W/ (AC100-240V)
|
|
Power Consumption
|
Standby<18W, Full load<35W
|
|
Power Supply
|
Built-in power adapter, AC100~240V 50-60Hz, 0.56A
|
|
Power Supply
|

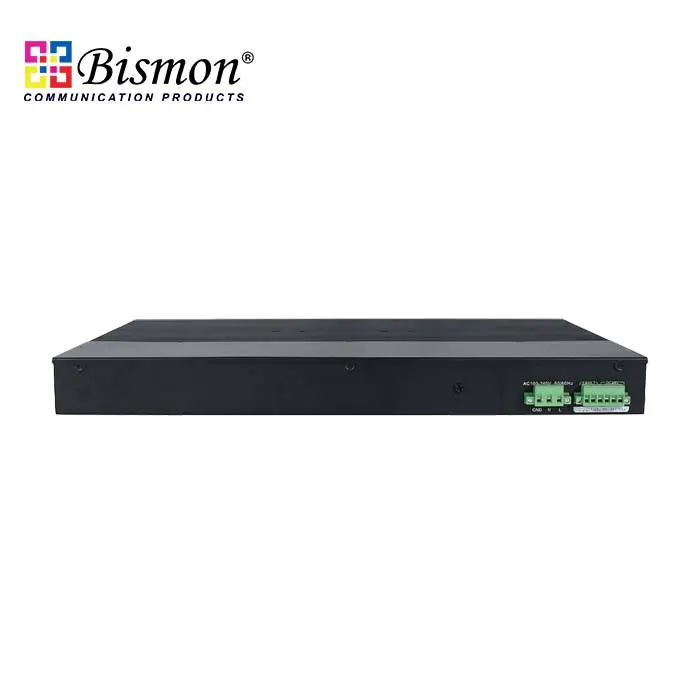

Alarm switch port, 2*AC power input ports, 2*DC12-48V input ports
Dual input power port design: AC power supply priority to support anti-reverse connection protection, and automatically switches to DC connection when power fails.
|
|
Physical Parameter
|
|
Operation Temp/ Humidity
|
-40~+80°C, 5%~90% RH Non condensing
|
|
Storage Temp/ Humidity
|
-40~+85°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
440*298*44mm
|
|
Net /Gross Weight
|
3.9kg / 4.7kg
|
|
Installation
|
Desktop, 1U/19” cabinet
|
|
Certification & Warranty
|
|
Lightning Protection
|
Protection level: IP40
Lightning protection: 6KV 8/20us
IEC61000-4-3(RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22(EN55022): Class B
IEC61000-6-2(Common Industrial Standard)
IEC61000-4-9(Pulsed magnet field): 1000A/m
IEC61000-4-10(Damped oscillation): 30A/m, 1MHz
IEC61000-4-12/18(Shockwave): CM 2.5kV, DM 1kV
IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV
IEC61000-4-16(Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6(Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8(Power frequency magnetic field):100A/m,1000A/m,1-3s
IEC61000-4-5(Surge): Power cable: CM±4kV/DM±2kV, Data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
|
Network Management Feature
|
|
Interface
|
IEEE802.3x flow control (Full duplex)
Broadcast storm suppression based on port rate
Port real-time traffic management (Flow Interval)
Limit the rate of packet traffic on incoming and outgoing ports, mini granularity is 16Kbps and max is 1Gbps
|
|
L3 Feature
|
IPV4 static route/ default route
|
|
VLAN
|
Port-based VLAN (4K), VLAN based on the protocol
IEEE802.1q, Port configuration of Access, Trunk, Hybrid
|
|
Port Aggregation
|
LACP dynamic aggregation, Static aggregation, Max 14 aggregation groups and 8 ports per group
|
|
Spanning Tree
|
RSTP (IEEE 802.1w)
|
|
ERPS
|
ERPSv2
|
|
Multicast
|
Multicast VLAN, User quick exit mechanism, IGMP Snooping v1/v2
|
|
Port Mirroring
|
Bidirectional data mirroring based on port
|
|
QoS
|
802.1p/ DSCP priority mapping, Diff-Serv QoS
Queue scheduling algorithm (SP, WRR, WFQ)
Flow-based rate limiting, Flow-based packet filtering
Flow-based based redirection, 8*Output queues of each port
|
|
ACL
|
Port-based and VLAN-delivered ACL
The L2-L4 packet filtering function can match the first 80 bytes of the packet and provide information based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range to define the ACL.
|
|
Security
|
Port isolation, Port broadcast message suppression
Port-based and Mac-based IEEE802.1X certification
User hierarchical management and password protection
AAA&RADIUS certification, IP source address protection
|
|
DHCP
|
DHCP Client, DHCP Snooping
|
|
Management
|
Web network management (https), Ping detection
ONV-NMS platform cluster management (LLDP+SNMP)
One click recovery, View CPU real-time utilization status
Link Layer Discovery Protocol (LLDP), System work log
Console/ Telnet and CLI configuration, SNMP V1/V2/V3
NTP clock, HTTP file upload and download management
|
|
System
|
Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable
TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
|
