SPECIFICATION

Provider Mode Ports:

• Fixed port: 4*10G Base-X, 16*1000 Base-X, 8*1000 Base-X Combo
• Management Port: Support console
• Power interface: Phoenix terminal, dual power supply redundancy
• LED Indicators: PWR, Link/ACT LED

Cable Type & Transmission Distance:

• Twisted-pair: 0-100m (CAT5e, CAT6)
• Monomode optical fiber: 20/40/60/80/100KM
• Multimode optical fiber: 550m

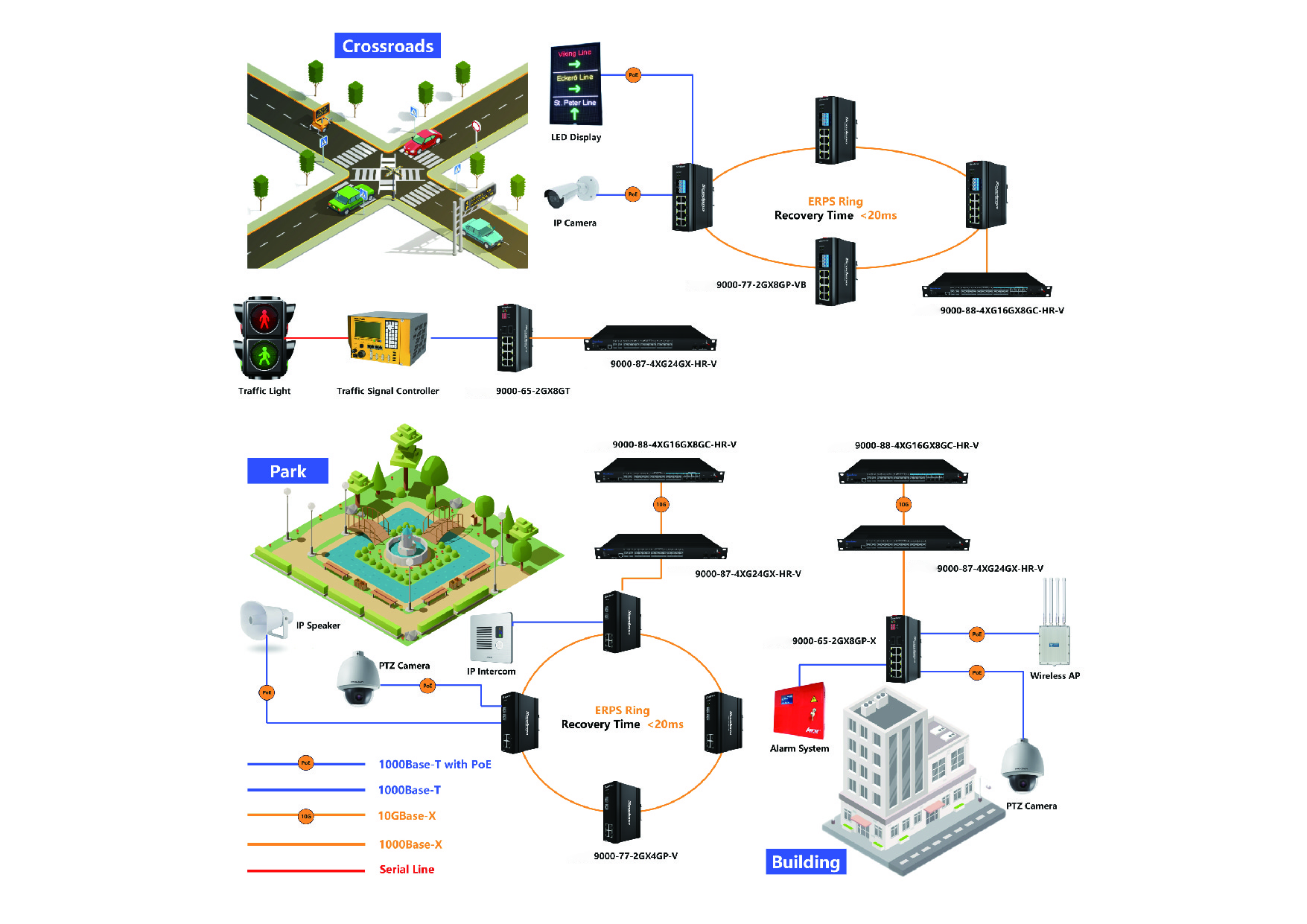

Network Topology:

• Ring topology: Support
• Star topology: Support
• Bus topology: Support
• Tree Topology: Support
• Hybrid topology: Support

Electrical Specifications:

• Input voltage: DC36-75V / AC 100-240V 50-60HZ
• Total Power consumption : <36W

PoE Support:

• PoE port: None
• PoE Protocol: None
• Pin Assignment: None
• PoE Mode: None

Layer 2 Switching:

• Switching capacity: 160G
• Packet forwarding rate: 95.23 Mpps
• MAC address table: 16K
• VLAN: Support 4K
• Buffer: 12M
• Forwarding delay: <10 µs
• MDX/MIDX: Support
• Flow control: Support
• Jumbo Frame: Support 10 Kbytes
• Spanning Tree: Support STP/RSTP/MSTP
• Ring Protocol: Support ERPS
• Link Aggregation: Support 12group
• Multicast: Support IGMP Snooping
• Port Mirroring: Support
• Storm Control: Support
• Interface Counters: Support
• QINQ : Support
• 802.1X: Support
• Radius/Mac authentication: Support
• Port Isolation: Support
• Rmon: Support
• NTP client: Support
• DHCP client: Support
• DHCP snooping: Support
• Ping/tracer detection: Support
• Dying gasp: Support
• Fiber module DDM: Support

Layer 3 Route:

• Static Routes: Support 256 static routes

Convergence:

• ACL : Support ACL 500 lines; Support IP standard ACL; Support MAC extended ACL; Support IP extended ACL
• QOS: Support QoS re-marking, priority mapping; Support SP, WRR queue scheduling; Support egress rate-limited, egress rate-limit; Support Policy-based QoS

Management:

• CLI: Support
• Console: Support
• IP: Support IPv4/IPv6
• Telnet: Support
• WEB: Support
• SNMP: Support SNMPv1/v2c/v3
• User: Support
• System Log: Support
• Configuration File Download/Upload: Support
• Upgrade Firmware: Support

Environment:

• Operating temperature: -40°C~+75°C The device is tested for 4 hours at temperatures in 85°C
• Storage temperature: -40°C~+85°C
• Relative humidity: 5%~95% (non-condensing)
• Thermal methods: Fanless design, natural cooling
• MTBF: 100,000 hours

Mechanical Dimensions:

• Product size: 440*245*44mm
• Installation Method: Rack mounted
• Weight: 3.6KG

EMC & Ingress Protection:

• IP Level: IP40
• Surge protection of Power: DC: IEC 61000-4-5 Level X (8KV/8KV) (8/20 µs); AC: IEC 61000-4-5 Level 3 (4KV/2KV) (8/20 µs)
• Surge protection of Ethernet port: IEC 61000-4-5 Level 3 (4KV/2KV) (10/700 µs)
• RS: IEC 61000-4-3 Level 3 (10V/m)
• EFI: IEC 61000-4-4 Level 3 (1V/2V)
• CS: IEC 61000-4-6 Level 3 (10V/m)
• PFMF: IEC 61000-4-8 Level4 (30A/m)
• DIP: IEC 61000-4-11 Level3 (10V)
• ESD: IEC 61000-4-2 Level 4 (8K/15K)
• Free fall: 0.5m

Authentication:

• Certificates: CCC/CE/FCC/RoHS
• Accessories: Device, Terminals, Specification, Certificate, Adapter(optional)
