OVERVIEW

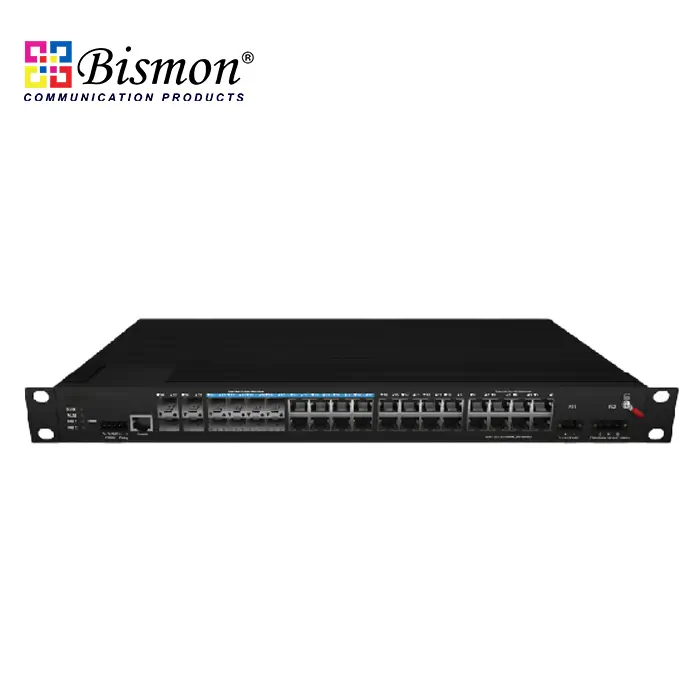

Industrial Switch 16 port Gigabit(1000Mbps) with 4x10GB SFP (10GBase-X) slot fiber optic port with 8x1000M combo port รองรับ 1000Mbps ทั้ง SX, LX, ZX โดยขึ้นอยู่กับ module transceiver SFP Mini GBIC รองรับระยะได้ตั้งแต่ 10,20,40,120km. รองรับ Input Voltage: DC 12-58V และ 100-240V AC 50-60Hz, สามารถทำงานได้ที่ อุณหภูมิ -40 ถึง 75 องศาเซลเซียส, รองรับการใช้งานภายนอกอาคารได้ตามมาตรฐาน IP40 Fanless design และ Anti-static ได้ที่ 8KV-15KV), support IEEE 802.1Q, IEEE 802.1X, QoS, ACL, STP, RSTP, MSTP, ERPS Ring, IPv4/IPv6 Static Routing มีระบบพลังงานสำรองคู่, ป้องกันไฟกระชาก 4KV, support Rack mount 19inch, Standard complies CCC, RoHs, FCC, CE, ISO
- Fixed port: 4*10G Base-X, 8*1000 Base-X Combo, 16*10/100/1000 Base-T
- PoE Support: No
- Input Voltage: DC 12-58V /AC 100-240V 50-60HZ
- ESD: IEC 61000-4-2 Level 4 (8K/15K)
- Thermal methods: Fanless design, natural cooling
- MTBF: 100,000 hours
- Certificates: CCC/CE/FCC/RoHS
SPECIFICATION
Provider Mode Ports:
- Fixed port: 4*10G Base-X, 8*1000 Base-X Combo, 16*10/100/1000 Base-T
- Management Port: Support console
- Power interface: Phoenix terminal, dual power supply redundancy
- LED Indicators: PWR, Link/ACT LED
Cable Type & Transmission Distance:
- Twisted-pair: 0-100m (CAT5e, CAT6)
- Monomode optical fiber: 20/40/60/80/100KM
- Multimode optical fiber: 550m
Network Topology:
- Ring topology: Support
- Star topology: Support
- Bus topology: Support
- Tree Topology: Support
- Hybrid topology: Support
Electrical Specifications:
- Input voltage: DC 12-58V /AC 100-240V 50-60HZ
- Total Power consumption : <36W
PoE Support:
- PoE port: None
- PoE Protocol: None
- Pin Assignment: None
- PoE Mode: None
Layer 2 Switching:
- Switching capacity: 160G
- Packet forwarding rate: 95.23 Mpps
- MAC address table: 16K
- VLAN: Support 4K
- Buffer: 12M
- Forwarding delay: <10 µs
- MDX/MIDX: Support
- Flow control: Support
- Jumbo Frame: Support 10 Kbytes
- Spanning Tree: Support STP/RSTP/MSTP
- Ring Protocol: Support ERPS
- Link Aggregation: Support 12group
- Multicast: Support IGMP Snooping
- Port Mirroring: Support
- Storm Control: Support
- Interface Counters: Support
- QINQ : Support
- 802.1X: Support
- Radius/Mac authentication: Support
- Port Isolation: Support
- Rmon: Support
- NTP client: Support
- DHCP client: Support
- DHCP snooping: Support
- Ping/tracer detection: Support
- Dying gasp: Support
- Fiber module DDM: Support
Layer 3 Route:
- Static Routes: Support 256 static routes
Convergence:
- ACL : Support ACL 500 lines; Support IP standard ACL; Support MAC extended ACL; Support IP extended ACL
- QOS: Support QoS re-marking, priority mapping; Support SP, WRR queue scheduling; Support egress rate-limited, egress rate-limit; Support Policy-based QoS
Management:
- CLI: Support
- Console: Support
- IP: Support IPv4/IPv6
- Telnet: Support
- WEB: Support
- SNMP: Support SNMPv1/v2c/v3
- User: Support
- System Log: Support
- Configuration File Download/Upload: Support
- Upgrade Firmware: Support
Environment:
- Operating temperature: -40°C~+75°C The device is tested for 4 hours at temperatures in 85°C
- Storage temperature: -40°C~+85°C
- Relative humidity: 5%~95% (non-condensing)
