OVERVIEW

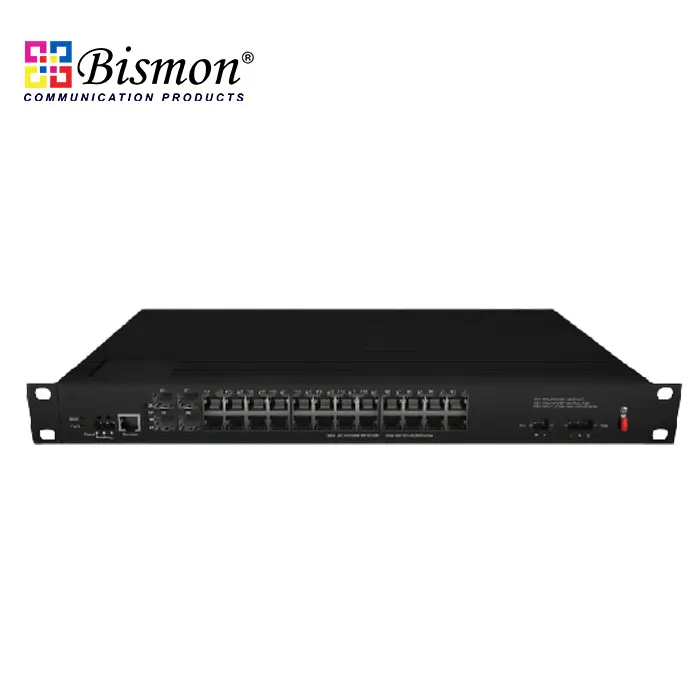

24x10/100/1000Base-T Industrial Switch Managed This model provide 24*1000M optical ports, management industrial Ethernet switches, providing excellent industrial quality such as high/low temperature resistance, lightning protection, etc., through the design of fanless cooling circuit, wide range working environment temperature, high protection grade and other technologies. Besides, various rich protocols, such as integrated switching and security, support public Ethernet multi-ring protection technology (ERPS), greatly improve network flexibility and enhance the reliability and security of industrial networks. It can also meet the deployment requirements of rail transit, safe city, intelligent transportation, outdoor monitoring and other harsh environments.
Specification
Fixed port 24*1000/ Base-X
Management Port Support console
Power interface Phoenix terminal, dual power supply redundancy
LED Indicators PWR Link/ACT LED
Cable Type & Transmission Distance
Twisted-pair 0-100m(CAT5e,CAT6)
Monomode optical fiber 20/40/60/80/100KM
Multimode optical fiber 550m
Network Topology
Ring topology Support
Star topology Support
Bus topology Support
Tree Topology Support
Hybrid topology Support
Electrical Specifications
Input voltage DC36-75V/AC 100-240V 50-60HZ
Total Power consumption Total power <36W
Layer 2 Switching
Switching capacity 160G
Packet forwarding rate 95.23Mpps
MAC address table 16K
VLAN Support 4K
Buffer 12M
Forwarding delay <10us
MDX/MIDX Support
Flow control Support
Jumbo Frame Support 10Kbytes
Spanning Tree Support STP/RSTP/MSTP
Ring Protocol Support ERPS
Link Aggregation Support 12group
Multicast Support IGMP Snooping
Port Mirroring Support
Storm Control Support
Interface Counters Support
QINQ Support
802.1X Support
Radius/Mac authentication Support
Port Isolation Support
Rmon Support
NTP client Support
DHCP client Support
DHCP snooping Support
Ping/tracer detection Support
Dying gasp Support
Fiber module DDM Support
Management
CLI Support
Console Support
Telnet Support
WEB management Support
SNMP Support SNMPv1/v2c/v3
User Management Support
System Log Support
Configuration File Download/Upload Support
Upgrade Firmware Support
Environment
Operating temperature -40C ~+75C
Storage temperature -40C ~+75C
Relative humidity 5%~95% (non-condensing)
Thermal methods Fanless design, natural cooling
MTBF 100,000 hours
Mechanical Dimensions
Product size 440*245*44mm
Installation Method Rack mounted
Weight 3.6KG
EMC & Ingress Protection
IP Level IP40
Surge protection of Power IEC 61000-4-5 Level 3(4KV/2KV) (8/20us)
Surge protection of Ethernet port IEC 61000-4-5 Level 3(4KV/2KV) (10/700us)
RS IEC 61000-4-3 Level 3 (10V/m)
EFI IEC 61000-4-4 Level 3 (1V/2V)
CS IEC 61000-4-6 Level 3 (10V/m)
PFMF IEC 61000-4-8 Level4 (30A/m)
DIP IEC 61000-4-11 Level3 (10V)
EMI CLASS A
ESD IEC 61000-4-2 Level 4 (8K/15K)
Free fall 0.5m
Authentication
Authentication CCC/CE/FCC/RoHS
Accessories
Accessories Equipment, terminals, power adapter(optional), Instructions, product certification
