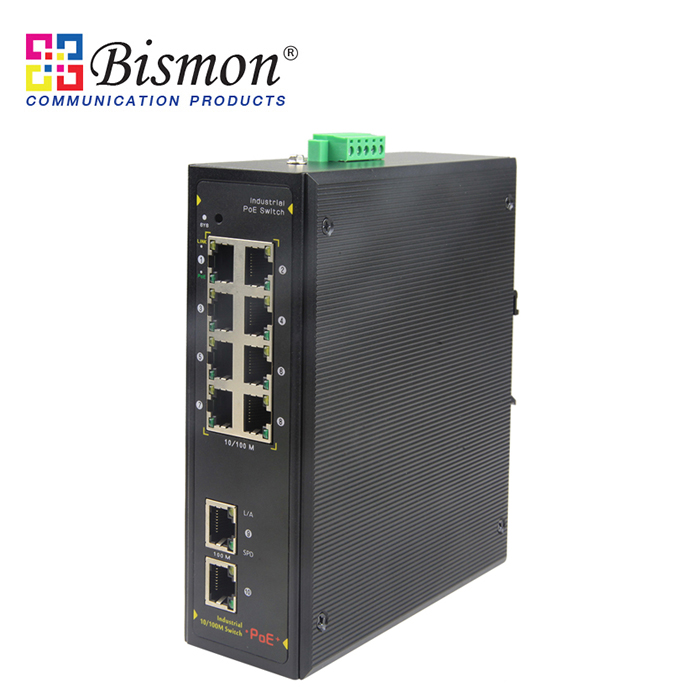

8 Ports 10/100Mbps + 2 Ports 10/100M Uplink Industrial Switch


Part number : B1-IPS31108

Brand : BISMON

Price : 5,268.00 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

This B1-IPS31108 switch provides a network point for data transmission. All the 10 Ethernet ports can be connected with 10/100Mbps quickly, and the uplink port is 3.2Gbps interface. And all ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed. Adopting store-and-forward architecture, forwarding memory reaches at 4M.



This cost-effective B1-IPS31108 is widely used in wind, electricity, assembly automation, subway PIS, SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military, and other industries and is a green and low power industrial Ethernet switches. But also applies to the strict environments that needing for concussion resistibility and high performance of EMC. In addition, its design and materials are in accordance with the industrial product standards, with higher reliability and redundant wide voltage power input/ output, providing safety industrial communication without interruption.



FEATURE

  •  Can transmit data to network surveillance cameras

  •  8x 10/100M auto-sensing RJ45 Ports, 2x 10/100M RJ45 Ports

  •  Meeting Standards of IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control

  •  Supporting port auto-flip (Auto MDI/ MDIX)

  •  Adopts store-and-forward architecture, forwarding memory reaches at 4M

  •  All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed

  •  Packet size: 64 ~ 1522 Bytes, support jumbo frame at 9216 Bytes

  •  Industrial Housing Design, providing DIN35 rail-type installation method

  •  Working Temperature: -40C to 80C



SPECIFICATION



Brand                                                              Bismon

Product Name                                               10-Port 10/100M Industrial Switch

Product Model                                              B1-IPS31108

Interface                                                         8x 10/100M RJ45 ports(All ports support MDI/MDIX),

               2x 10/100M RJ45 ports(Uplink)

Forwarding Mode                                          Store-and-forward

Bandwidth                                                      3.2Gbps (non-blocking)

Packet Buffer Memory                                 4M

Forwarding Rate                                             -

Mac Address Table                                        8K

MTBF                                                               539,608 hours

Network Protocols and Standards             IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x Flow Control; IEEE 802.3af DTE Power via MDI;

Shell                                                                IP40 protection class

Power                                                             Power input: AC100-240V 50/60Hz; (every country use a custom power plug), DC 24V INPUT

Support                                                          Supporting port auto-flip (Auto MDI/ MDIX)

Standards Compliance                                IEEE802.3,IEEE802.3i,IEEE802.3u,IEEE802.3ab,IEEE802.3z

LED Indicators                                              Link/Act

Product Size                                                 165x148x54mm

Working Temperature                               -40C to 80C

Radiation                                                     CE mark, commercial, FCC Part 15 Class B, VCCI Class B ,EN 55022 :CISPR 22, Class B

Safety                                                           CE Mark, commercial, CE/LVD EN60950

Warranty                                                      5 years warranty
