48 Port Wall Outdoor Cabinet for CCTV or IP Camera


Part number : B1-WM48CC-OUT

Brand : BISMON

Price : 8,668.00 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

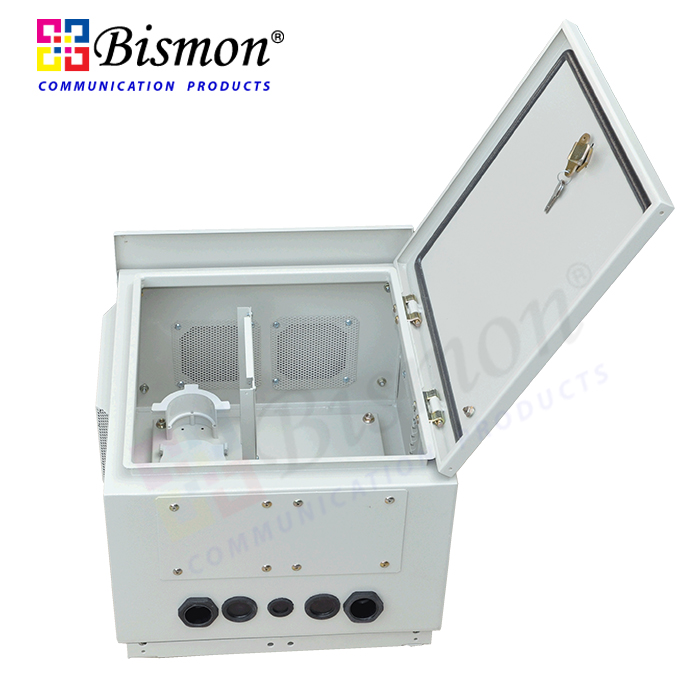

Wall-Mount Outdoor Fiber Optic made of EG(Electro-Galvanized) steel high quality and a long time for use. They can compliant with the IP55 standard. they can accommodate the fiber from12-48 fiber. Cable entry 5 port use cable glands EG/PG29 depend on cable dia. The cable can be held the preformed holes by a 2 section cable inlet or cable feed-through grommet

Specification

Brand Bismon
Model B1-WM48CC-OUT
Equipment Type Wall Mount Outdoor
Size 450 mm x 400 mm x 250 mm (HighxWidthxDepth)
Standard Compliant IP55
Material (EG)-Electro Galvanised Steel
Application Can use for CCTV & IP Camera solution or other fiber optic solution
Features • One door lockable and Double panel left & right airflow and insect protection by grate
  • Double folded gutter at door frame to increase rigidity and prevents water from entering while the door is opened.
  • Provided 4mm thickness CNC foam gasket for protection waterproof for body closure
  • 4 welded studs for fixing mounting plate and service equipment inside.
  • Surface finished cabinet with epoxy-polyester coating, grey color.
  • All screw or nut made of stainless steel
  • Can Change one panel 12-48 port Max. Capacity use for snap-in plate 6 or 12 port
  • Can support Adaptor fiber type to FC-D type, SC, ST, LC, Max:snap-plate 4 pcs
  • Can support splice tray 12 or 24 port maximum 6 ea
  • Can support FAN 4”x4” for airflow, installation Fan 3 point: Top/bottom/ 2 beside (Option)
  • Complete set tools for hang on pole and support 4 hole for wall type
  • Can support hinges provide 130 deg. door opening.
  • Made from material (EG) Electro Galvanized steel, Anti-rust steel
Option (Made to order) -

- Size: W:400x H:450xD:250mm

- Material made from Electro-Galvanized Steel Sheets (EG)

- Epoxy Outdoor color coating type

- Support Fans 4"x4" (Top and Bottom)

- Support airflow 2 sides with filter steel protect insect, bug, fly

- 1 Door and key for easy management

- CNC foam gasket for protection waterproof, humidity

- Double folded gutter at door frame to increase rigidity and prevents water from entering while the door is opened.

- complete set tools for hang on pole or wall type support 4 point
