210/100M RJ45 ports and 1155M uplink SC port 1550nm/20km (Single-mode, Single-fiber) ต้องใช้เป็นคู่A/B

Part number : B1-IPS31032F-B

Brand : BISMON

Price : 5,308.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 pcs

Size : 119*100*30mm

Warranty : 3 Year

OVERVIEW

The B1-IPS31032F-B (Single-mode single fiber SC) is a 10/100M industrial Ethernet fiber switch independently developed by BISMON. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. It has 2*10/100/1000M RJ45 ports and 1*155M uplink SC port. Each port can support full line-rate forwarding.

B1-IPS31032F-B industrial Ethernet switch has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.), protection level up to IP40, It can support dual redundant power supply, low power consumption and no fan cooling technology, MTBF average trouble-free working time up to 35 years, 3-year warranty. It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network.

Unmanaged models, plug and play, no configuration, easy to use.

FEATURE

100M fast Ethernet access

• All series supports "10/100M RJ45 port and dual uplink SC port" combination, which enables users to flexibly build networking to meet the needs of various scenarios.

• Support non-blocking wire-speed forwarding.

• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Port lightning protection, wide voltage input

• Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;

• Industrial dual power input.

• DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V.

Stable and reliable

• CE, FCC, RoHS.

• Low power consumption, No fan, aluminum shell.

• The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.

TECHNICAL SPECIFICATION

Model	B1-IPS31032F-B
Interface Characteristics

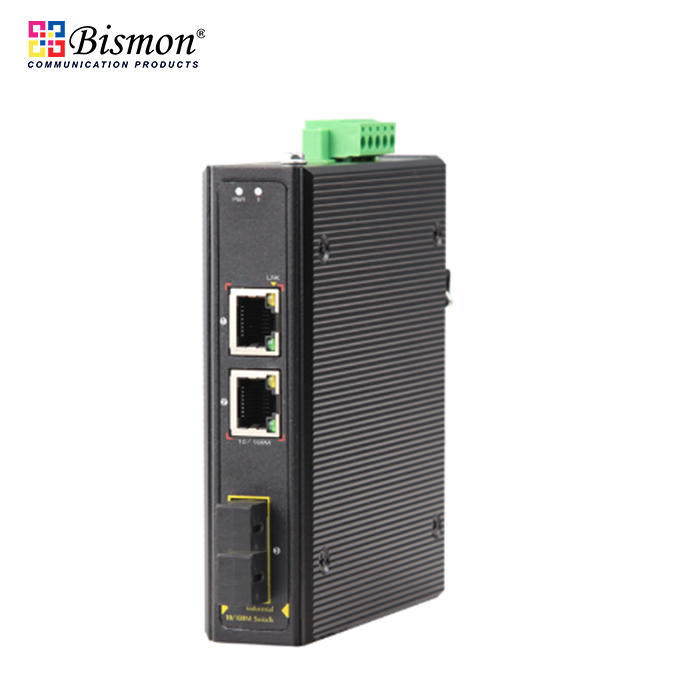

Fixed Port	1155M uplink SC fiber port (Data) Single-fiber(B) 210/100Base-TX RJ45 ports (Data /Power) 2 sets V+, V- redundant DC power ports (5P Phoenix terminal)
Ethernet Port	Port 1-2 can support 10/100Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Default optical module is single-mode dual fiber 20km, SC port (optional single-mode single fiber and multi-mode dual fiber optical module)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-500m, 1310nm /0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	1.6Gbps (non-blocking)
Forwarding Rate @64byte	0.45Mpps
MAC	1K
Buffer Memory	768K
Jumbo Frame	1536bytes
LED Indicator	Power: PWR(Green), Network: Link (Yellow), Fiber port: L/A (Green)
Power Supply
Working Voltage	DC12-48V, 5 Pin industrial phoenix terminal, support anti-reverse protection
Power Consumption	Standby<4W, Full load<6W
Power Supply	No, optional 24V/24W industrial power supply
Physical Parameter
Operation TEMP / Humidity	-40~+80°C, 5%~90% RH Non-condensing
Storage TEMP / Humidity	-40~+85°C, 5%~95% RH Non-condensing
Dimension (LWH)	11910030mm
Net /Gross Weight	0.4kg / 0.5kg

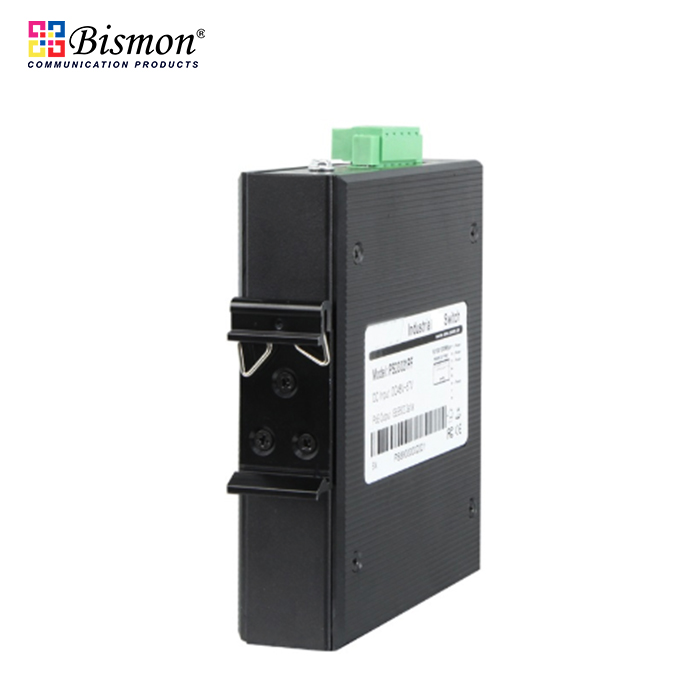

Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
