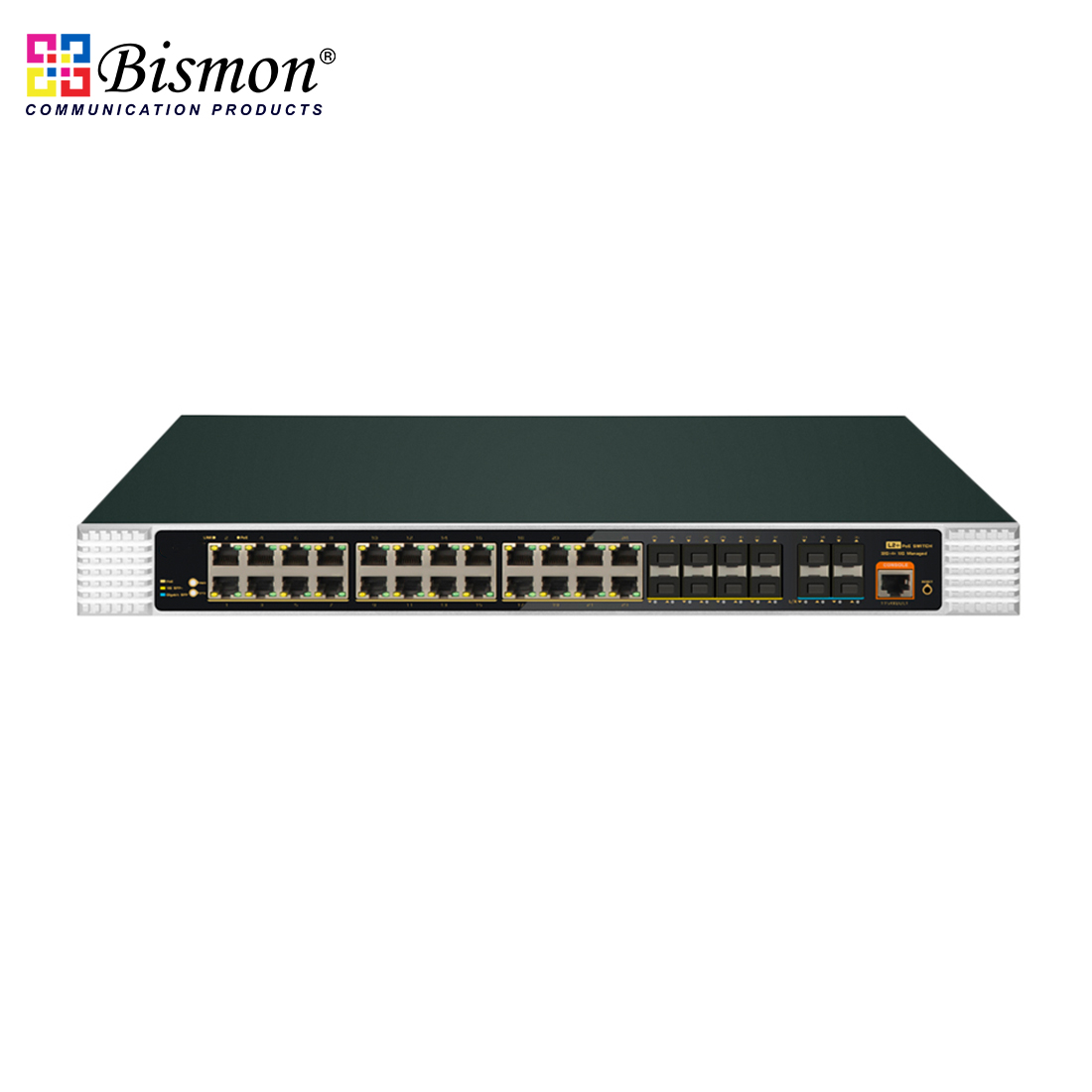

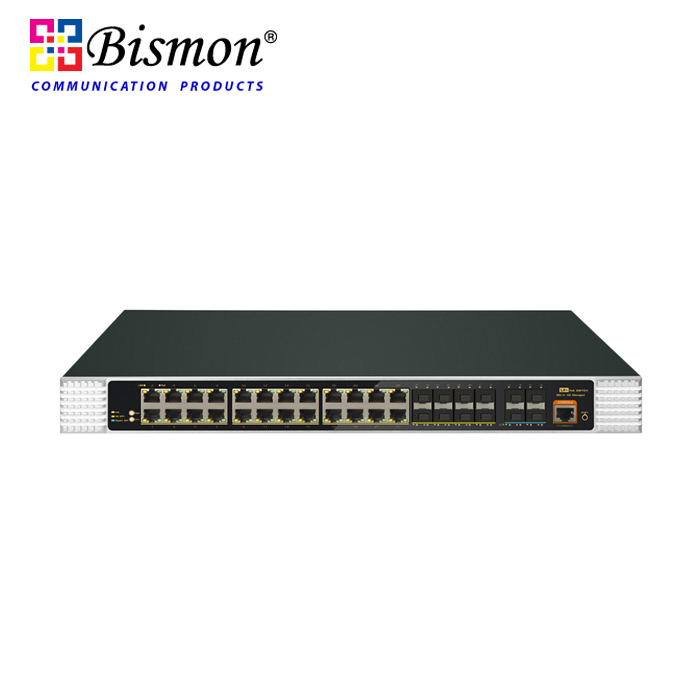

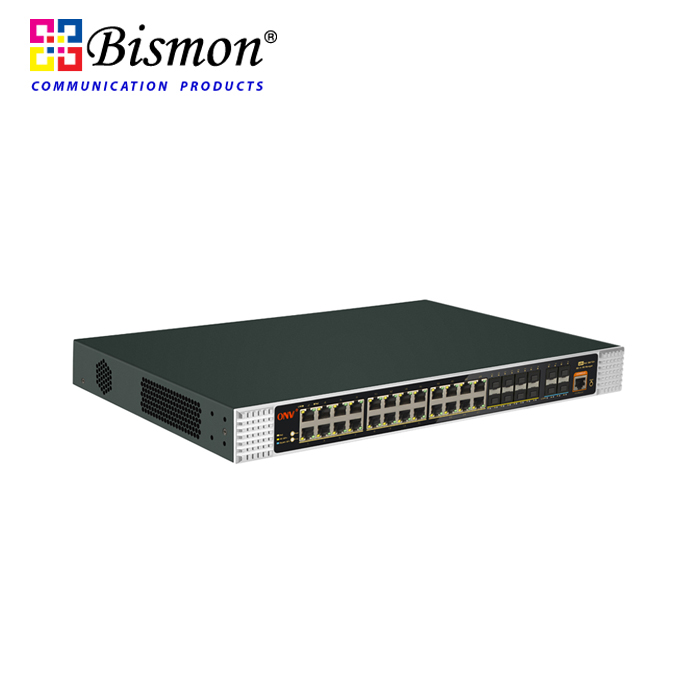

24-RJ45 10/100/1000 PoE + 8-SFP Slot and 4-SFP+ 1/10G, L2+ Managed, industrial switch


Part number : B1-IPS36036PFM

Brand : BISMON

Price : 43,200.00 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

The B1-IPS36036PFM is a 10G uplink managed industrial PoE fiber switch independently developed by BISMON. It has 24*10/100/1000Base-T RJ45 ports and 8*100/1000Base-X SFP fiber slot ports and 4*1/10G SFP+ fiber slot ports. Port 1-24 can support IEEE 802.3af/at standard PoE power supply. single port PoE power reaches 30W, and the maximum PoE output power is 400W. As a PoE power supply device, it can automatically detect and recognize power-compliant devices that meet the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, Industrial scenes such as shipping, metallurgy, and green energy construction form a cost-effective, stable and reliable communication network.



The B1-IPS36036PFM has the L2+ full network management function, supports IPV4/IPV6 management, supports static route full line rate forwarding, supports complete security protection mechanism, complete ACL/QoS policy and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS to improve link backup and network reliability. When one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.

L2+ managed industrial PoE fiber switch with 24* 10/100/1000M RJ45 ports and 8*100/1000M SFP fiber slot ports and 4*1/10G SFP+ fiber slot ports, Port 1-24 can support IEEE 802.3af/at PoE standard, Support 1U/19 inch rack installation.



FEATURE

Gigabit access, 10G uplink

     • All series supports “Gigabit Ethernet port and 10G SFP+ uplink port “combination, which enables users to flexibly build networking to meet the needs of various scenarios.

     • Support non-blocking wire-speed forwarding.

     • Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.



Intelligent PoE power supply function

     • 24*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

     • IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

     • Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

     • PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.



Security

• 802.1X authentication.

• Port isolation, Storm control.

• IP-MAC-VLAN-Port binding.



Strong business processing capability

• IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN and QinQ configuration.

• QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

• ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

• IGMP V1/V2 and IGMP Snooping.

• ERPS/STP/RSTP/MSTP.

• Static and dynamic aggregation.



Stable and reliable

• CCC,CE, FCC, RoHS.

• Low power consumption, galvanized steel casing, The fan active cooling.

• The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

• Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.



Easy operation and maintenance management

• HTTPS, SSLV3, and SSHV1/V2.

• RMON, system log, LLDP, and port traffic statistics.

• CPU monitoring, memory monitoring, Ping test, and cable diagnose.

• Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).



SPECIFICATION

Model B1-IPS36036PFM
Interface Characteristics
Fixed Port 24*10/100/1000Base-T PoE ports (Data/Power)
8*100/1000Base-X SFP fiber slot ports
4*1/10G uplink SFP+ fiber slot ports (Data)
1*Console RS232 port (115200,N,8,1)
Ethernet Port Port 1-24 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter)
Optical Fiber Port Gigabit SFP /10G SFP+ optical fiber interface, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance Multi mode: 850nm / 0 ~ 500M(1.25G), 850nm / 0 ~ 300M (10G); single mode: 1310nm / 0 ~ 40KM, 1550nm /0 ~ 120KM.
Chip Parameter
Network Management Type L2+
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX , IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE802.3ae 10GBase-LR/SR
IEEE802.3x
Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 598Gbps (non-blocking)
Forwarding Rate@64byte 131Mpps
MAC 32K
Buffer Memory 32M
Jumbo Frame 9.6K
LED Indicator Power: PWR (yellow), system:SYS (yellow);  network:Link /Act(yellow); PoE: PoE (green); Fiber port : L/A (green)
Reset Switch Yes, support one key to restore factory settings
PoE & Power
PoE Port Port 1 to 24
PoE Management PoE working status
Delay start of power supply
PoE output priority configuration
Scheduling of PoE operation and time
Total power limit of PoE power supply
PoE output power allocation, off& af &at
Power Supply Pin Default: 1/2 (+), 3/6 (-)
Max Power Per Port 30W, IEEE802.3af/at
Total PWR / Input Voltage 400W (AC100-240V)
Power Consumption Standby<40W; Full Load<400W

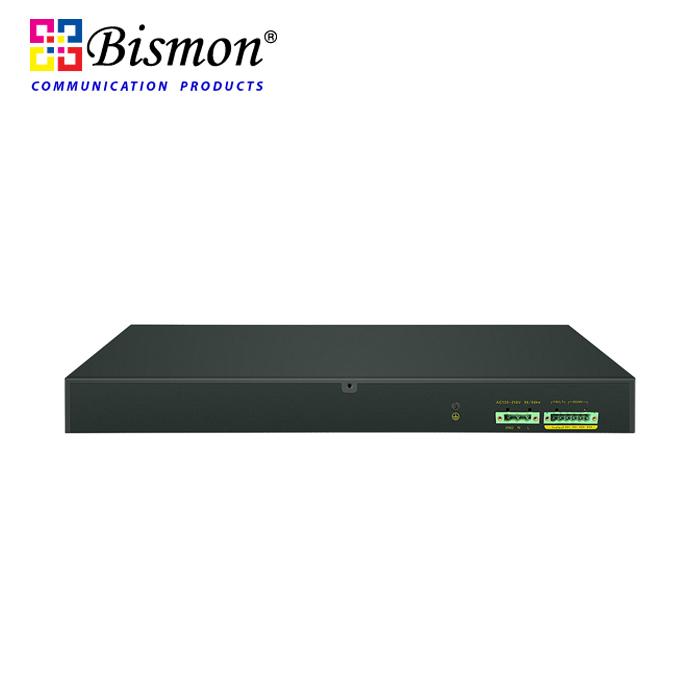

Power Input Interface Dual input power interface design, AC power supply priority,
support anti-reverse protection, power-off automatic switching DC connection; 2 sets of DC12-48V input interface;
alarm switch interface; 1 set of AC power input interface
Power Supply Built-in power supply, AC 100~240V 50-60Hz 5A
Physical Parameter
Operation TEMP / Humidity -40~+80°C;5%~90% RH Non condensing
Storage TEMP / Humidity -40~+85°C;5%~95% RH Non condensing
Dimension (L*W*H) 440*300*45mm
Net /Gross Weight <4.8kg / <5.6kg
Installation Desktop type,19 inch 1U cabinet installation
Certification & Warranty
Lightning protection / protection level Lightning protection: 6KV 8/20us; Protection level: IP30
IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge
IEC61000-4-3(RS):10V/m(80~1000MHz)
IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV
IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV
IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)
IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s
IEC61000-4-9(pulsed magnet field):1000A/m
IEC61000-4-10(damped oscillation):30A/m  1MHz
IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV
IEC61000-4-16(common-mode transmission):30V; 300V,1s
FCC Part 15/CISPR22(EN55022):Class A
IEC61000-6-2(Common Industrial Standard)
Mechanical Properties IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)
Certification CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty 5 years, lifelong maintenance.

Product Review



Related Product in - 1/10G Industrial Switches (1U) L2 Manage (PoE)


1U-Rack-24-Port-RJ45-100-1000M-POE-4SFP-1GB-10GB-Industrial-Switch-Managed-L2

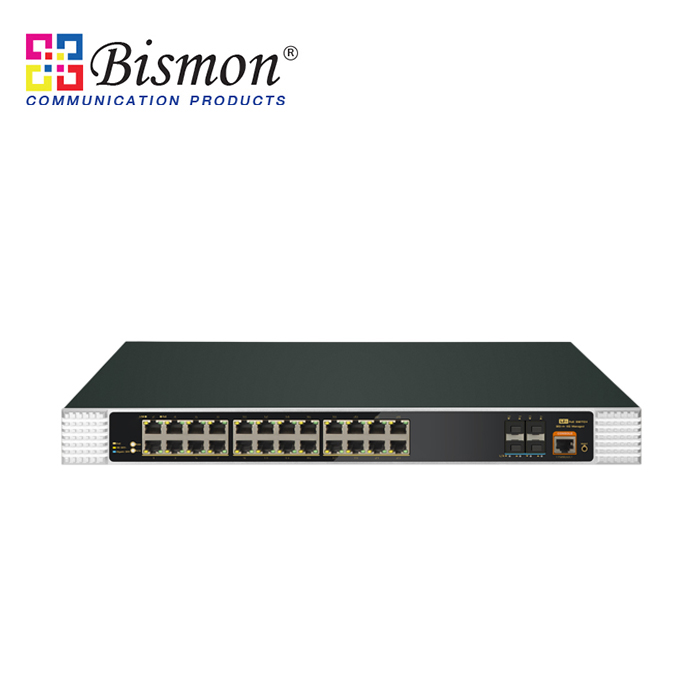

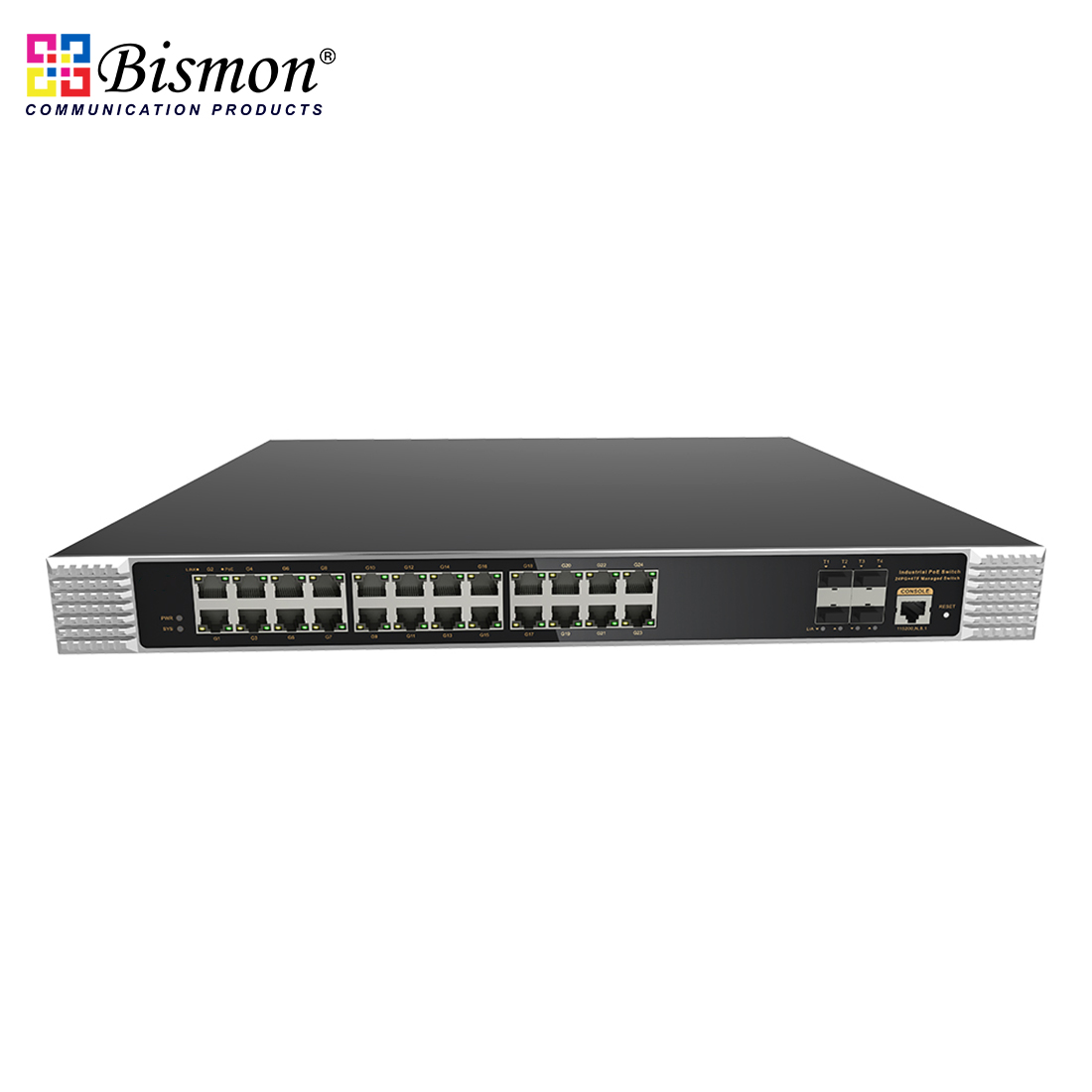

1U Rack 24 Port RJ45 100/1000M POE + 4SFP 1GB/10GB Industrial Switch Managed L2
Price : 41,600.00 Baht
1U-Rack-8-RJ45-1000M-POE-24-SFP-1000M-4SFP-1GB-10GB-Industrial-Switch-Managed-L2

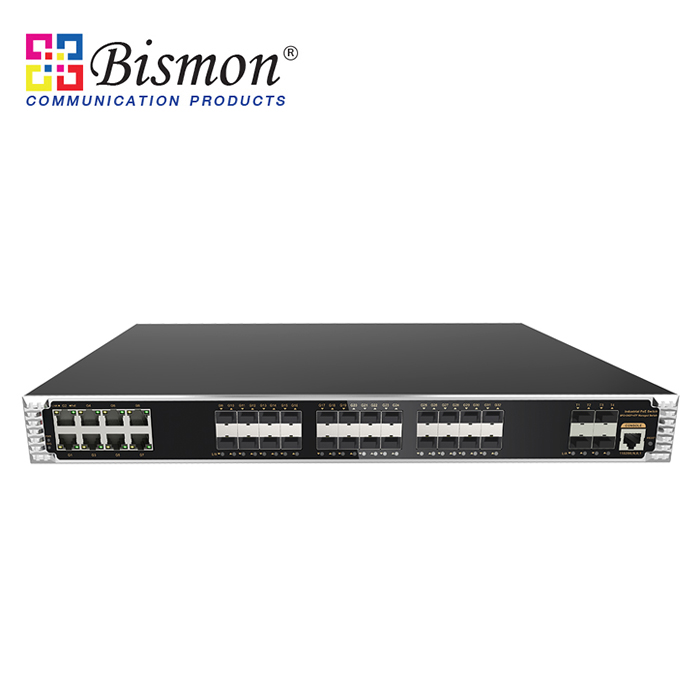

1U Rack 8 RJ45 1000M POE + 24 SFP 1000M +4SFP 1GB/10GB Industrial Switch Managed L2
