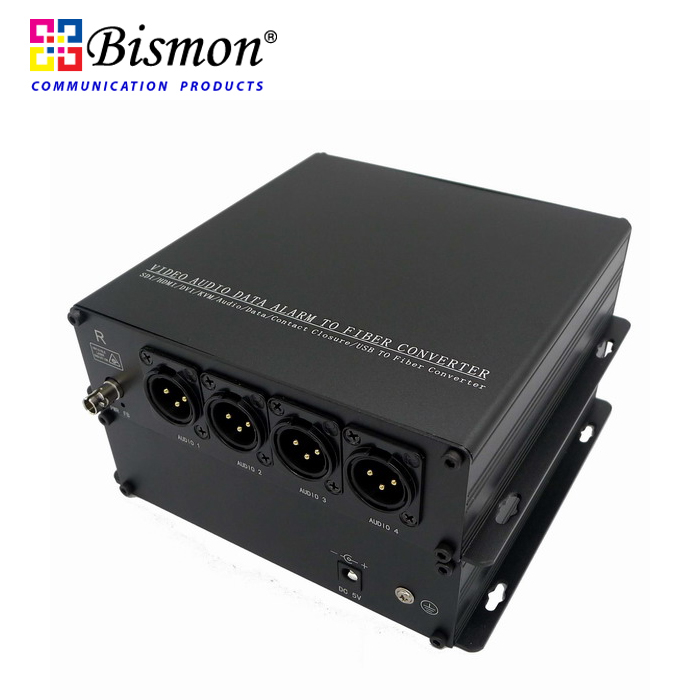

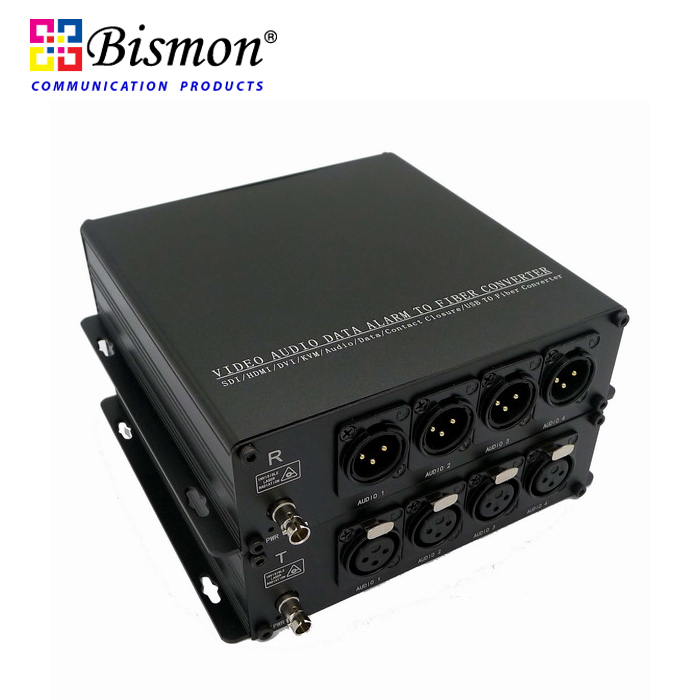

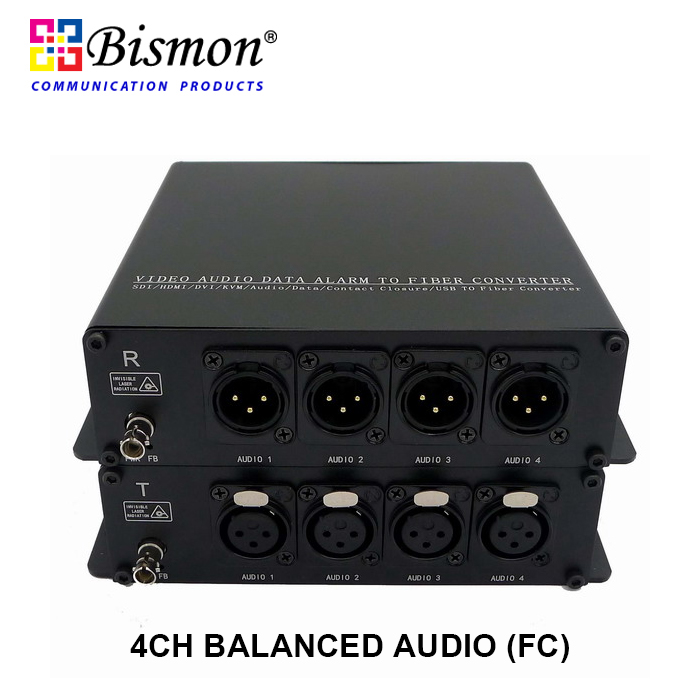

4 CH Balanced Audio (XLR) to Fiber optic Single fiber 20KM(SM), FC Connector

Part number : B1-4AUXLR-FC

Brand : BISMON

Price : 19,600.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

OVERVIEW

4 ch Balanced Audio To Fiber support 4 Channel balanced audio 16-bit digitally encoded broadcast quality balanced audio over one multimode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensure adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Optical
Optical connector	FC
Connector	XLR
Audio	Balanced
Wavelength	1310nm&1470nm~1610nm
Output Power	-14~ -8dBm / -5~0dBm
Optic fiber	50/125u multimode?62.5/125u multimode?9/125u single mode
Rx sensitivity	-30dBm
Optical connector	FC /ST /SC /LC (optional)
Distance	0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM)
Balanced Audio
Number of Channels	4

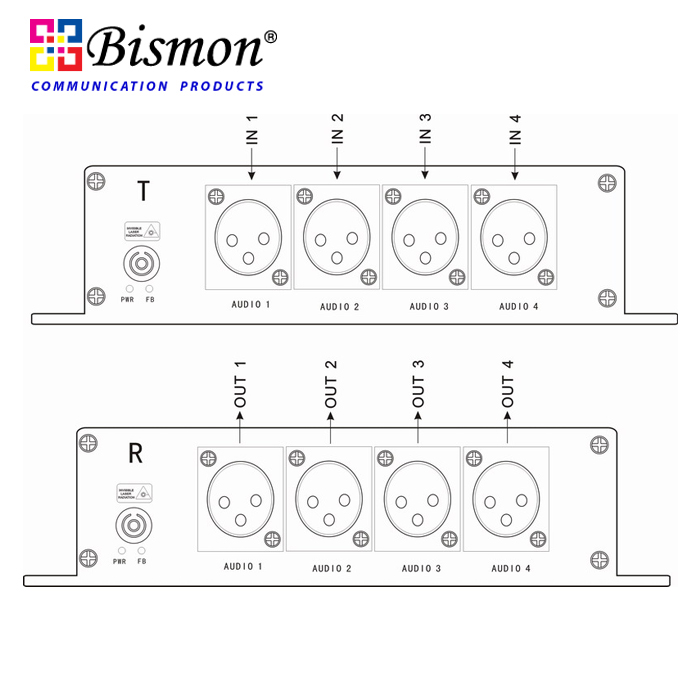

Input Connector	XLR (female)
Output Connector	XLR (male)
Input / Output Impedance	10K Ohm
Input capacitance LINE inputs	10 pF
Max input/output voltage	1.228Vp-p (+4dBu)
Frequency Response	20 Hz to 24kHz @±3dB
Sample Rates From	48kHz
SNR	> 80dB
Electrical & Mechanical
Input Power Requirements:	DC 5V@2A
Power Adapter:	AC 90V~240V
Power Consumption:	< 5W

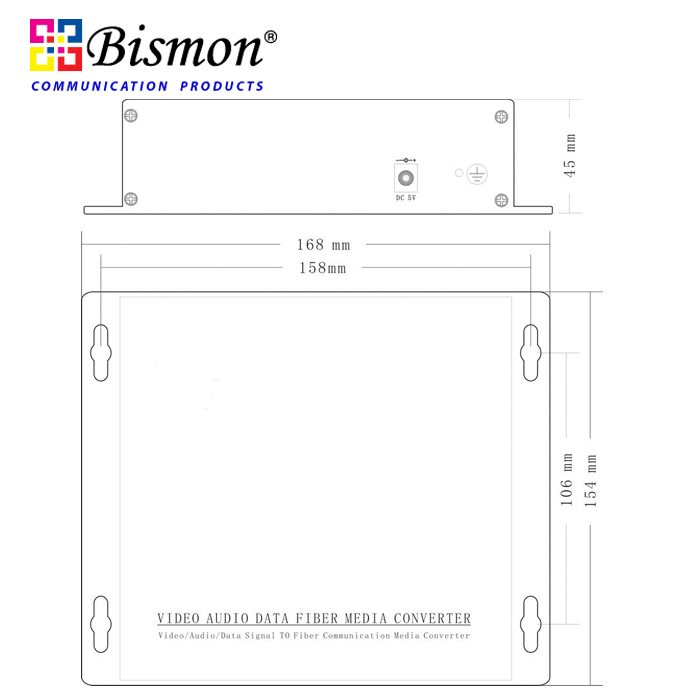

Stand-Alone Dimensions:	168mm × 154mm × 45mm
Shipping Weight:	(include Transmitter & Receiver ) 2.5kg
Environmental
Operating Temperature:	-20°C ~ +75°C
Storage Temperature:	-40°C ~ +85°C
Relative Humidity:	0% ~ 95% (non-condensing)
MTBF:	>100,000 hours

Opitcal? Wavelength 1310nm&1470nm~1610nm Output Power -14~ -8dBm / -5~0dBm Optic fiber 50/125u multimode?62.5/125u multimode?9/125u single mode Rx sensitivity -30dBm Optical connector FC /ST /SC /LC (optional) Distance 0~500M (MM) / 0~20KM/40KM/60KM/80KM (SM) Balanced Audio Number of Channels 4 Input Connector XLR?female? Output Connector XLR?male? Input / Output Impedance 10K Ohm Input capacitance LINE inputs 10 pF Max input/output voltage 1.0Vp-p Frequency Response 20 Hz?24kHz @?3dB Sample Rates From 48kHz SNR > 80dB Electrical & Mechanical Input Power Requirements: DC 5V@2A Power Adapter: AC 90V~240V Power Consumption: < 5W Stand-Alone Dimensions: 168mm ? 154mm ? 45mm Shipping Weight: (include Transmitter & Receiver ) 2.5kg Environmental Operating Temperature: -20?C ~ +75?C Storage Temperature: -40?C ~ +85?C Relative Humidity: 0% ~ 95% (non-condensing) MTBF: >100,000 hours

Download Datasheet
