Specification

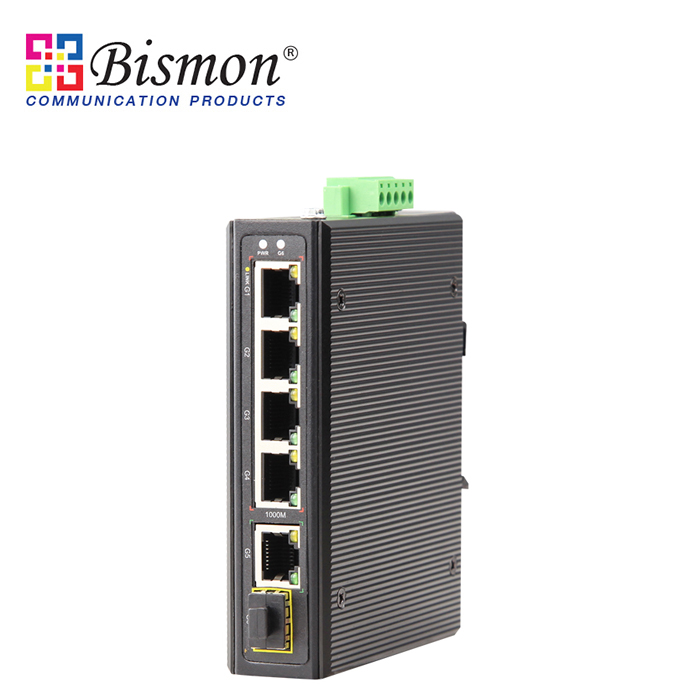

Product Name                                                                   Full gigabit 6-port industrial Ethernet fiber switch

Product Model                                                                  B1-IPS33064FG

Interface Characteristics

Fixed Port                                                                             4*10/100/1000Base-T RJ45 ports (Data)

                                                                                               1*10/100/1000Base-T uplink RJ45 port(Data)

                                                                                               1*1000Base-X uplink SFP fiber slot port(Data)

                                                                                               2 groups V+, V- redundant DC power interface (5P phoenix terminal)

Ethernet Port                                                                      Port 1-5 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption

SC Slot Port                                                                         Gigabit SFP optical fiber interface, default matching optical modules

Optical Cable/ Distance                                                    Multi mode: 850nm 0 - 550M,

       Single mode: 1310nm 0 - 40KM, 1550nm 0- 120KM.

Chip Parameter

Network Protocol                                                                IEEE802.3 10BASE-T, IEEE802.3i 10Base-T

                                                                                                IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-TX

                                                                                                IEEE802.3z 1000Base-X, IEEE802.3x

Forwarding Mode                                                               Store and Forward(Full Wire Speed)

Switching Capacity                                                             12Gbps

Forwarding                                                                          8.93Mpps

MAC                                                                                      8K

Buffer Memory                                                                   2M

Jumbo Frame                                                                       9.2K

LED Indicator                                                                       Power:PWR (green), network: Link, Link/Act (yellow)

Power

Power Consumption                                                           Standby<6W, Full load<10W

Power Supply                                                                       No, optional 24V24W industrial power supply

Working Voltage                                                                 12-48VDC; 5P industrial Phoenix terminal, support anti-reverse protection.

Physical Parameter

Operation TEMP / Humidity                                            -40~+80°C;5%~90% RH Non condensing

Storage TEMP / Humidity                                                -40~+85°C;5%~95% RH Non condensing

Dimension (L*W*H)                                                          119*100*30mm

Net /Gross Weight                                                            <0.7kg / <1.0kg

Installation                                                                          Desktop, DIN rail

Certification & Warranty

Lightning protection / protection level

         Lightning protection: 6KV 8/20us; Protection level: IP40

                                                                                                IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge

                                                                                                IEC61000-4-3(RS):10V/m(80~1000MHz)

                                                                                                IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV

                                                                                                IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV

                                                                                                IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

                                                                                                IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

                                                                                                IEC61000-4-9(pulsed magnet field):1000A/m

                                                                                                IEC61000-4-10(damped oscillation):30A/m  1MHz

                                                                                                IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV

                                                                                                IEC61000-4-16(common-mode transmission):30V; 300V,1s

                                                                                                FCC Part 15/CISPR22(EN55022):Class A

                                                                                                IEC61000-6-2(Common Industrial Standard)

Mechanical Properties

        IEC60068-2-6 (anti vibration)

        IEC60068-2-27 (anti shock)

        IEC60068-2-32 (free fall)

Certification                                                                       CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS;

Warranty                                                                             3 years, lifelong maintenance.
