OVERVIEW

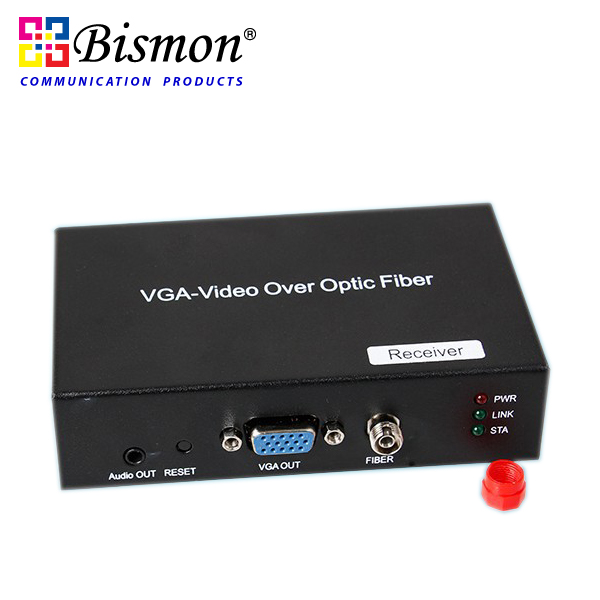

1 Channel VGA Video Converter+1 Channel Audio, 0-20KM (Single-mode) VGA HD video optical transceiver is composed by VGA transmitter (VGAT1) and VGA receiver (VGA-R1), through 1 core single mode fiber to transmit VGA video, Audio

Feature

•  All-digital, uncompressed, high-definition optical transmission

•  Support 1 channel 1 channel VGA high-definition video and two-way audio (analog stereo or digital stereo) signal parallel remote transmission, etc.

•  Compatible with standard VGA ~ WUXGA

•  Automatic identification and configuration of various display modes

•  Support UXGA 1600x1200, WUXGA1920x1080 @ 60Hz, HDTV 1080p 1920x1080 @ 60Hz resolution, resolution, maximum bandwidth of 500MHz

•  Built-in super dynamic image processing technology, the picture is clear and stable

•  Support stereo audio, microphone or headphone output or input

•  AES / EBU digital audio 110

•  balanced professional XLR socket standard

•  Compatible with any professional AES / EBU, AES3id 75

•  unbalanced standard digital audio

•  Compatible with any consumer IEC 60958 Type II S / PDIF 75

•  digital audio standards

•  Built-in cable automatic equalizer and clock retiming

•  Single and multi-mode fiber transmission

•  No software setup, plug and play, hot swappable

•  Industrial design, high reliability
