Specifiation

Brand

Bismon

Model

B1-WM42U-OUT8

Equipment Type

Wall rack outdoor

Size

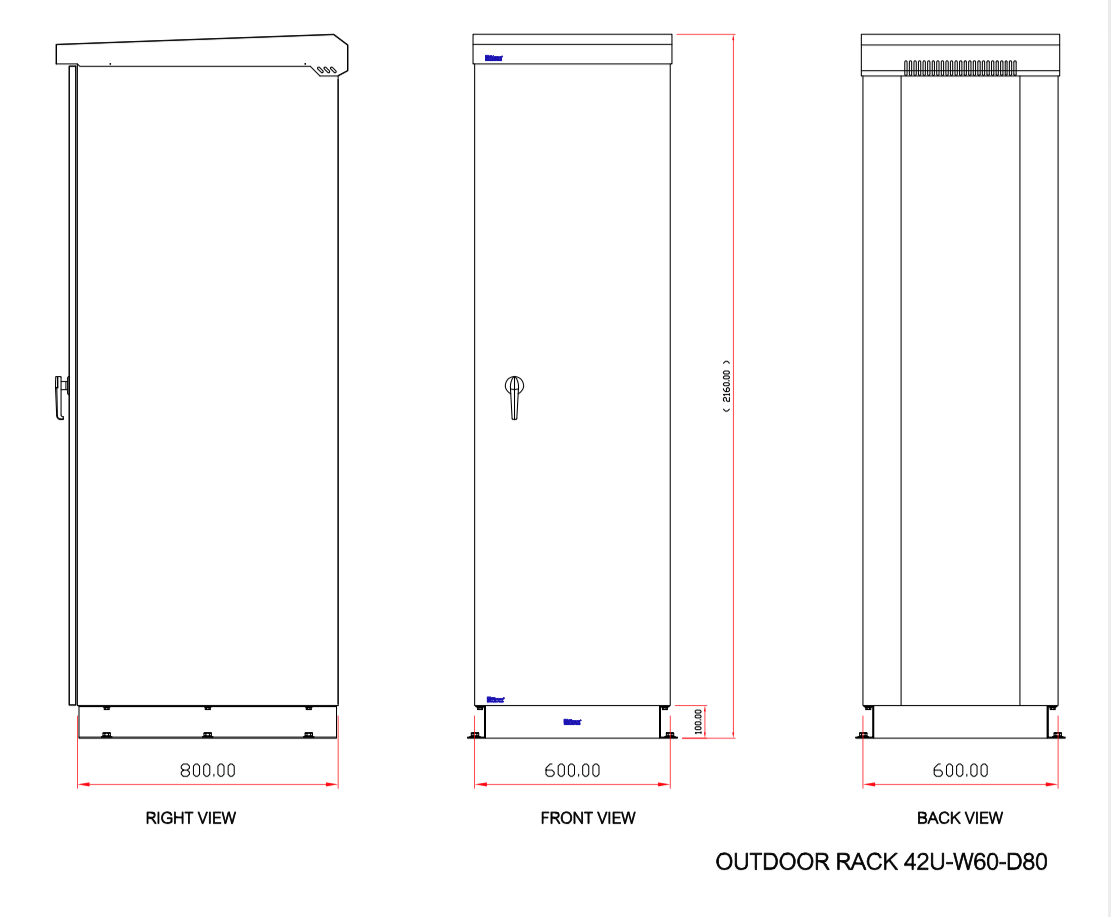

2157 mm x 600 mm x 800 mm (HighxWidthxDepth)

Standard

Compliant IP55, IP65

Material

(EG)-Electro Galvanised Steel

Application

The cabinet can support fiber distribution fiber optic, CCTV, IP Camera, Optical Amplifiers, broadband equipment

Features

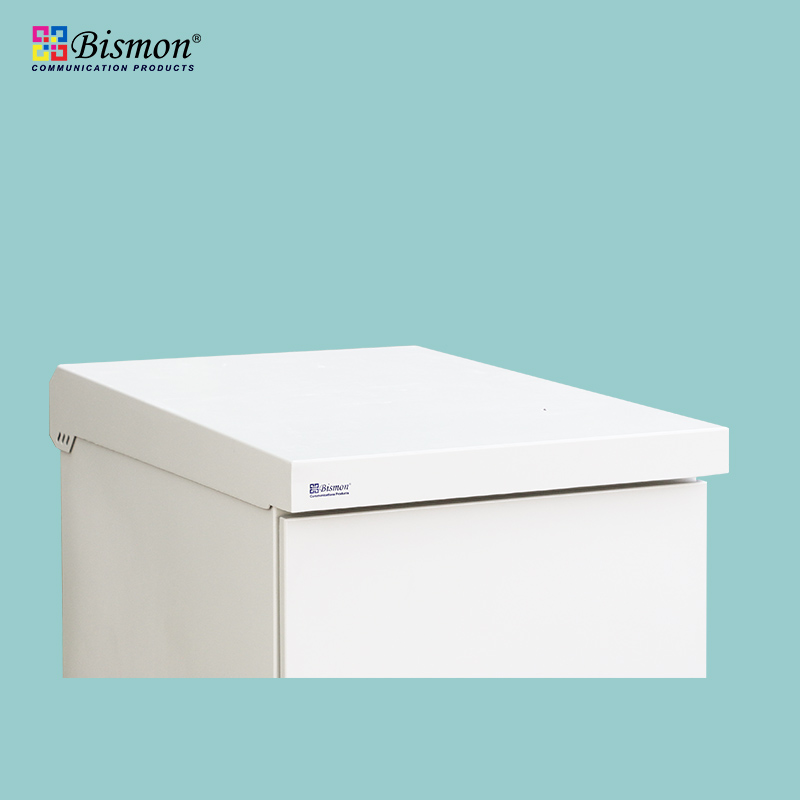

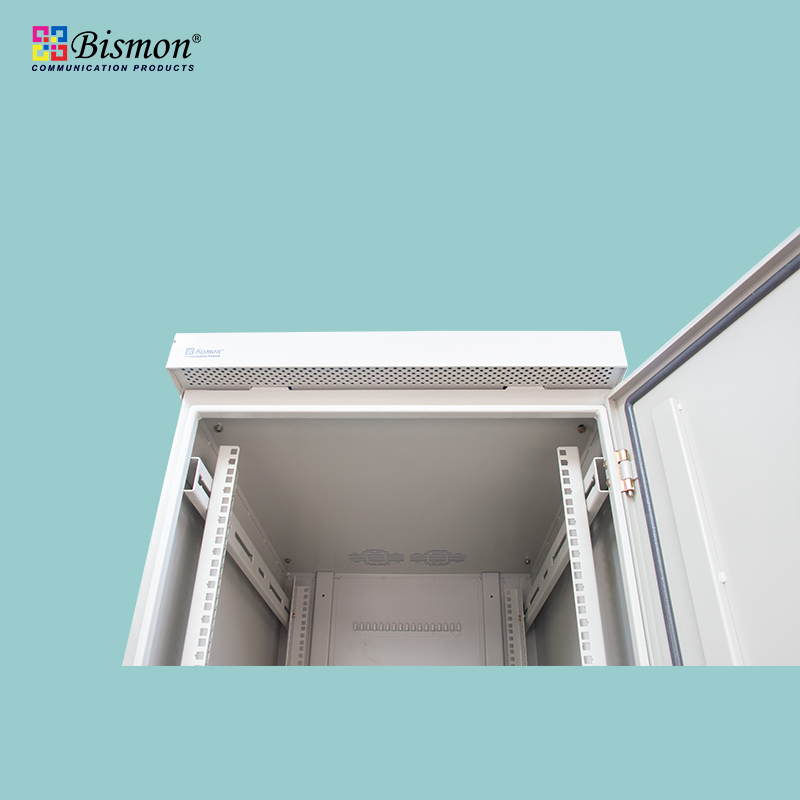

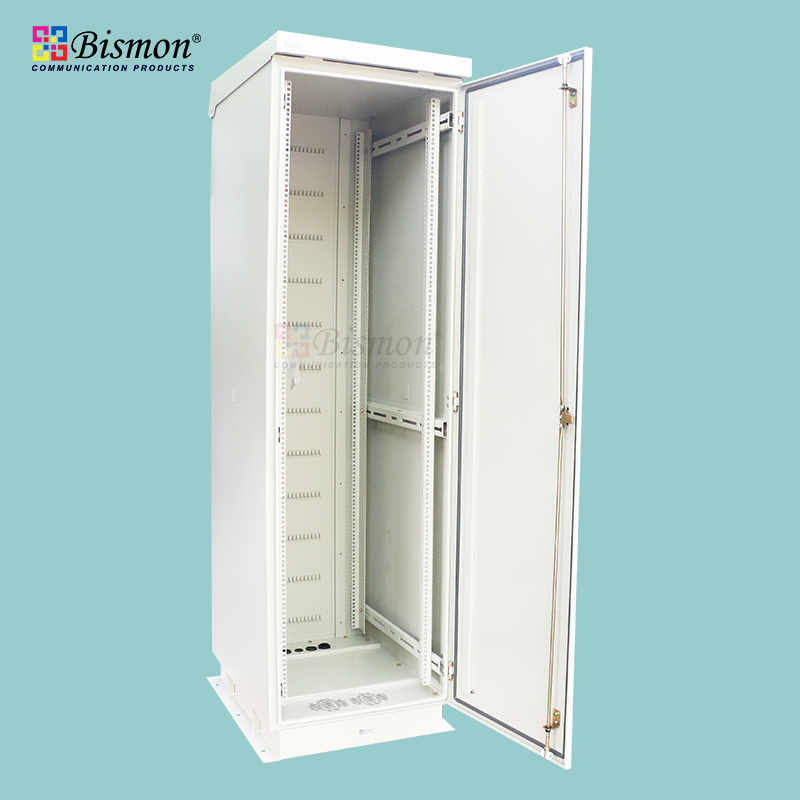

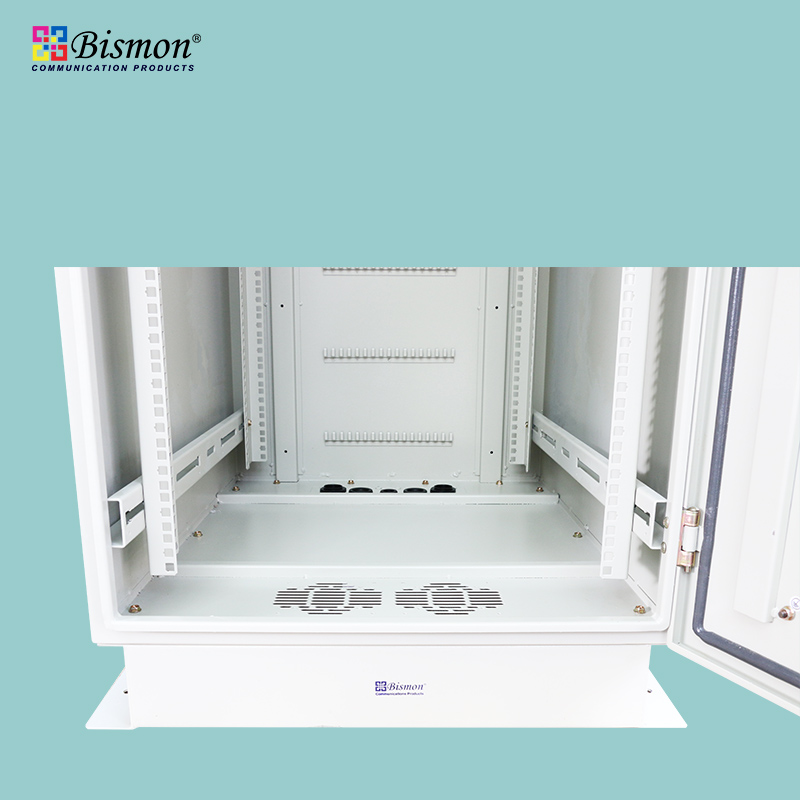

• 19-inch support for rack style standard, 20U High with Roof protect UV and rain

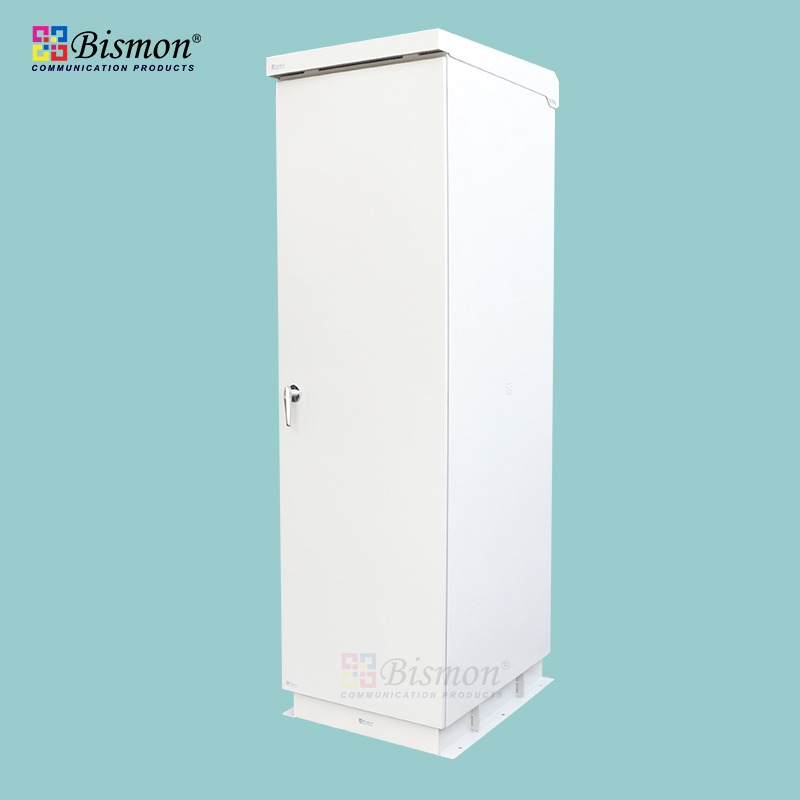

            • One door lockable by key and safe sealing and protection of equipment against water humidity and dust, made from  “ CNC Foam Gaskets” style, not rubber style

            • Double folded gutter at door frame to increase rigidity and prevents water from entering while the door is opened

            • All screw or nut made of stainless steel

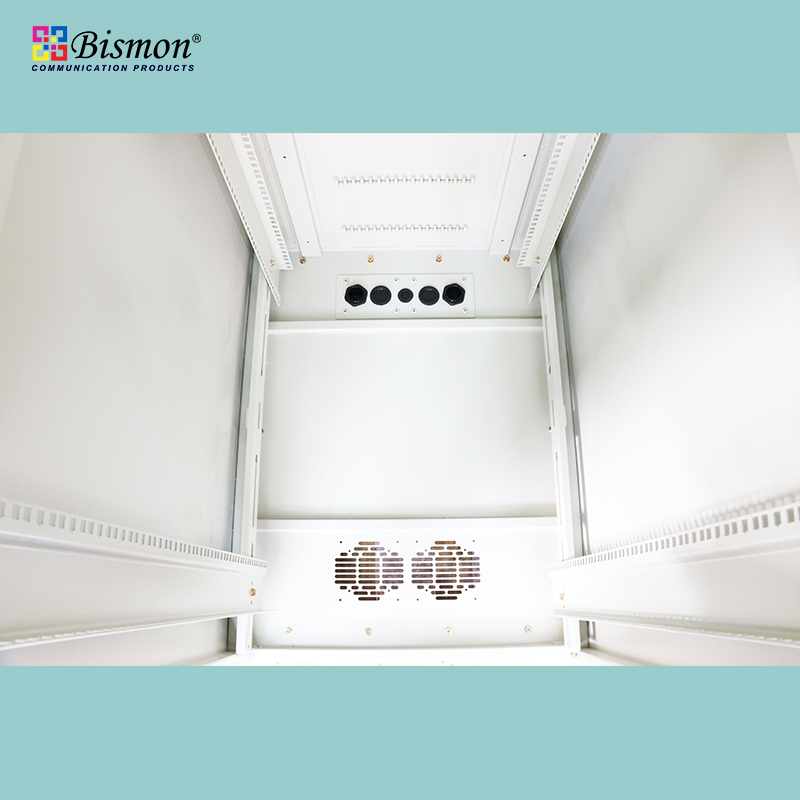

            • Can support cable entry 5 port and 2 cable glands EG/PG29

            • Can support cable management inside easy for use cable tie lock

            • (Mitsubishi)Air Conditioner cooling 8000BTU/HR(2,344Watt), Input watt: 750 Watt, Efficiency : 10.67 BTU/ Watt, system Current 3.45 Amp, (220V 1Ph 50Hz), Dimension(WxHxD) : 400mmx1020mmx225mm), Weight: 46 Kg, Refrigerant air: R-407c, Condensing : 115 Watt, Evaporator : 58 Watt

            • Complete set tools for hang on pole and support 4 hole for wall type

             • Surface finished cabinet with epoxy-polyester coating.

            • Can support hinges provide 130 deg. door opening

Option (Made to order)

Material: SPCC Steel sheet 2.0mm, hot-dipped galvanized for all wall rack cabinet, Stainless, Aluminum
