Wall Mount Fiber Optic OUTDOOR for CCTV&IP CAMERA (ใช้ภายนอก-Premium)

Part number : B1-WM96-OUTP

Brand : BISMON

Price : 15,500.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 2 Day

Minimum order quantity : 1 Box

OVERVIEW

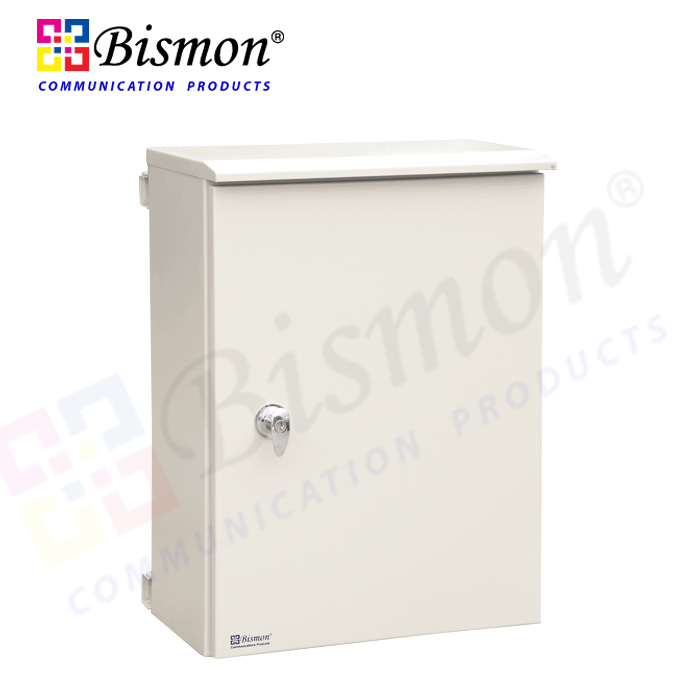

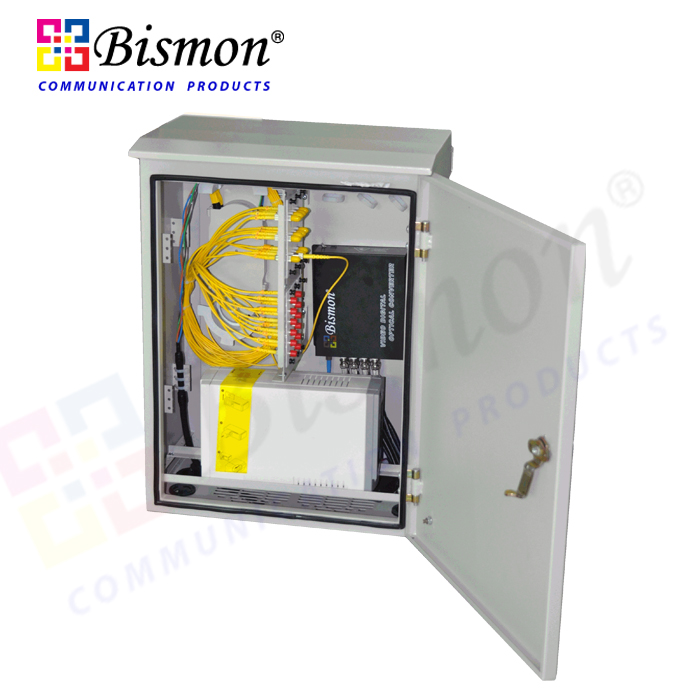

Wall Mount outdoor enclosure for fiber optic or CCTV Premium set, Network Camera, LAN network, FTTH, Broadcasting, Made from EG(Electro Galvanized) Steel material. The cabinet wall outdoor standard compliant with IP55 or IP65 (Option)

Specification

Brand	Bismon
Model	B1-WM96-OUTP
Equipment Type	Wall Mount Outdoor Type
Size	600 mm x 440 mm x 245 mm (HighxWidthxDepth)
Standard	Compliant IP55 or IP 65 standard.
Material	(EG)-Electro Galvanised Steel
Application	Can use for CCTV & IP Camera solution or other fiber optic solution
Features	• One door lockable by keys
	• Double folded gutter at door frame to increase rigidity and prevents water from entering while the door is opened
	• Provided 4mm thickness CNC Foam Gasket Technology for protection water & rustproof
	• The color of cabinet Surface finished cabinet with epoxy-polyester coating, Electrostatic powder system
	• All screw or nut made of stainless steel
	• Can change one panel 12-96 port, Max. Capacity use for snap-in plate 6 or 12 port
	• Can support Adaptor fiber type to FC-D type, SC, ST, LC, Max:snap-plate 8 pcs
	• Can support Multi-mode & Single-mode for 1 Plate, splice tray 12 or 24 port maximum 8 ea
	• Can support FAN 2x4” for airflow at Bottom of Cabinet
	• Support Cable entry 8 port use cable glands EG/PG29 depend on cable dia: 2 pcs

Option (Made to order)	- Stainless Steel 201/304 grade or Aluminum
