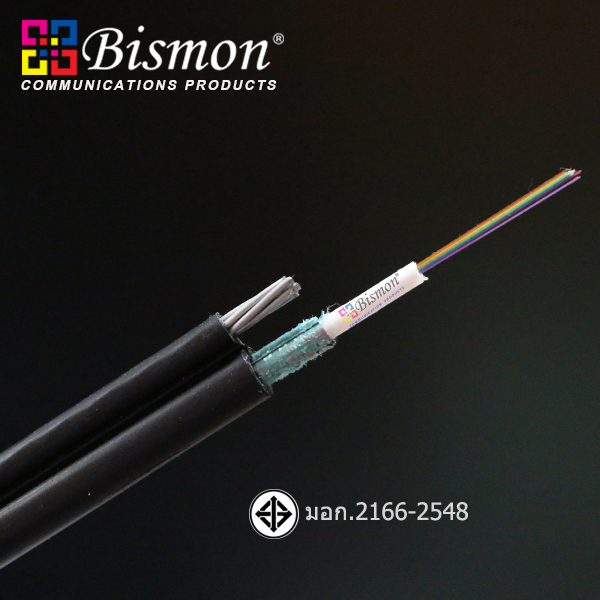

12 Core Small Figure 8 self-support armoured (1x7) Fiber SM G.652.D


Part number : BMFGS12SM9

Brand : BISMON

Price : 23.00 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

BISMON’s Small Figure 8 Armored cables are self-supporting cable designed for aerial installation. The optical fiber cable design provides easy and economical one-step installation and stable performance over a wide temperature range and is compatible with any telecommunication optical fiber cable. The cable inside loose tube filled with a water-resistant filling compound or design for water blocked with water blocking material in side cable. The cable protect animal by corrugated steel armored around the cable core save cost maintenance or use for long term some applications. The cable approved by TISI 2166-2548 in Thailand standard. Standard packing(wooden) 4,000M/Reel.



Applications

 • Adopted to outdoor aerial self-supporting installation

 • Long-distance communication, local trunk line, CATV & computer networks system, Telecom or outside plant campus backbone applications

 • Ethernet LAN Network, CCTV, Network Camera, PLC

 • Mechanically, rugged, cable design suitable for: Aerial



Product Construction

Fiber :

            • 4-12 Core fibers (Single-mode or Multi-mode)

            • Loose tube gel-filled

            • Color-coding per TIA/EIA 598-A

Central Strength Member :

            • FRP rod (Fibre Reinforcement Plastic) Option: Steel wire rod

Ripcords :

            • 1 ripcords made from Polyester cords or Plastic thread. Color: Red

Water blocking elements :

            • Water blocking tape

Armor :

            • Corrugated coated steel tape

Outer Jacket :

            • Black UV-and HDPE

Messenger Wire :

            • 1.0mm x 7 Galvanized stranded steel wire

Max Tensile :

            • Max tensile load: (short term) 3000N

TISI Certificate :

            • TISI 2166-2548



12 Core Small Figure 8 self-support armoured (1x7) Fiber optic cable Single jacket and single loose tube. The cables are mainly designed for digital or analog transmission communication, Used for core net, city local net and CCTV IP networks for applied to aerial.

Products Characteristic: - 12 Core Fiber optic cable - Single-mode 9/125um (G.652.D) - The messenger wire 1.0mmx7 made from Galvanized stranded steel wire - Loose tube filling compound : Thyrotrophic jelly compound - Loose tube material:PBT (Natural or white color) - Loose tube diameter: 2.6mm - Water blocking tape - Ripcord material: Aramid yarn - Sheath material: HDPE - Approved : (TISI) มอก.2166-2548
