OVERVIEW

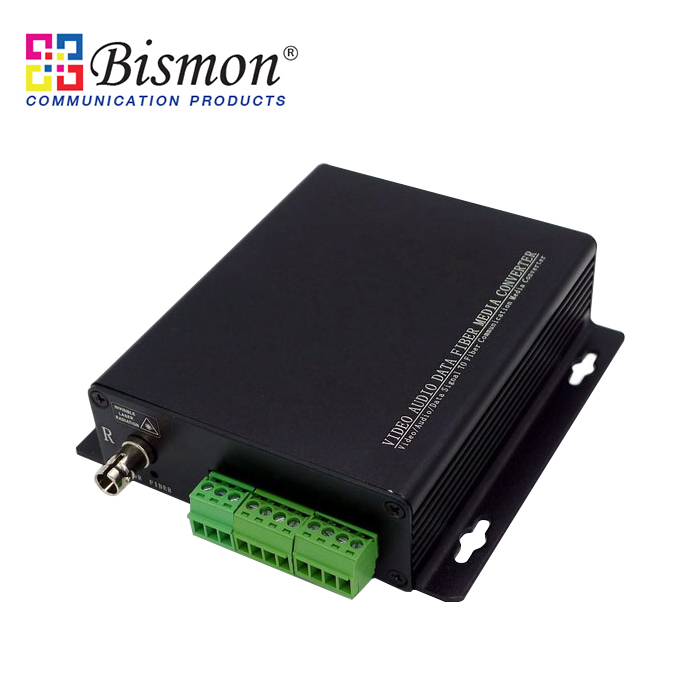

2ch Contact Closure To Fiber support 2 ch contact closure over one multi-mode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications with Access Control System, Alarm Event Triggering, Building Automation and Environmental Control Systems, Fire & Alarm Systems, PIR signal Transmission, Traffic Signal Control Equipment, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.

Plug and Play design ensures adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Features

• Support Point-to-Point or Daisy-Chain connection

• Dry Contact Closure or TTL data over one fiber

• Multimode Fiber Support for Distances up to 2 km

• Single-Mode Fiber Support for Distances up to 100 km

• LED Status Provide Rapid Indication of Operating Parameters

• No EMI or RFI and no ground loops

• Stand-alone or rack-mount

• Produce according to customer's specifications, providing OEM

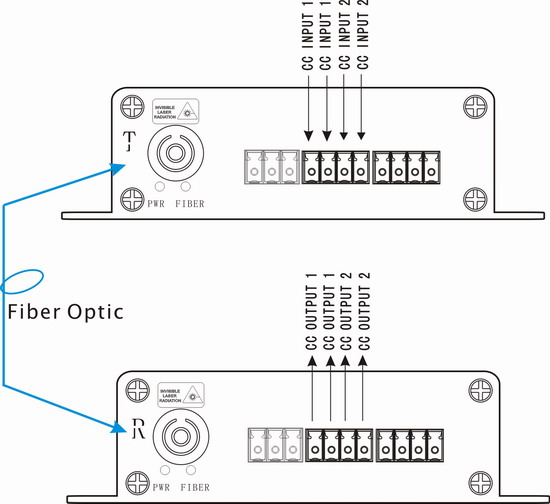

System Connection Diagram
