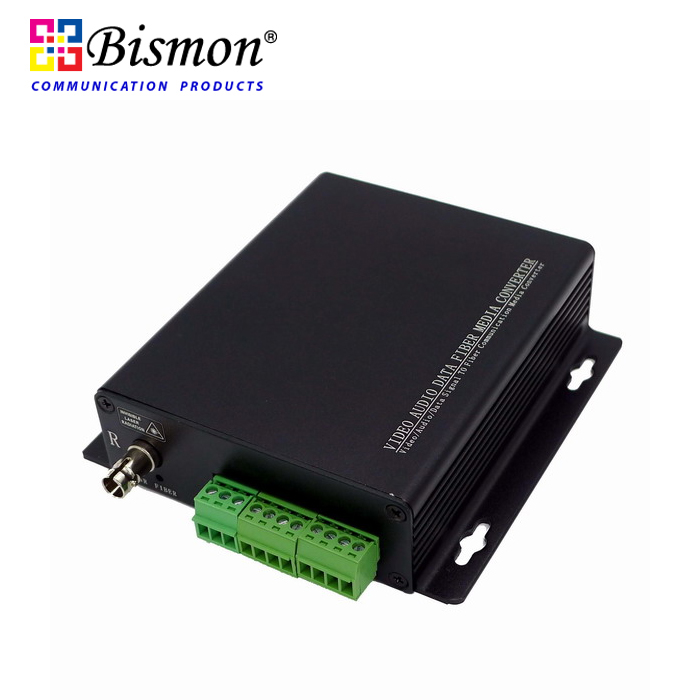

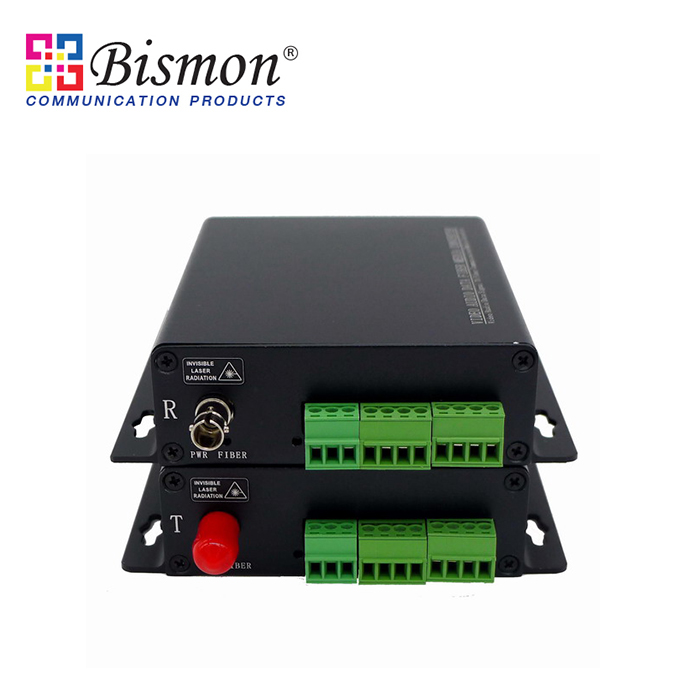

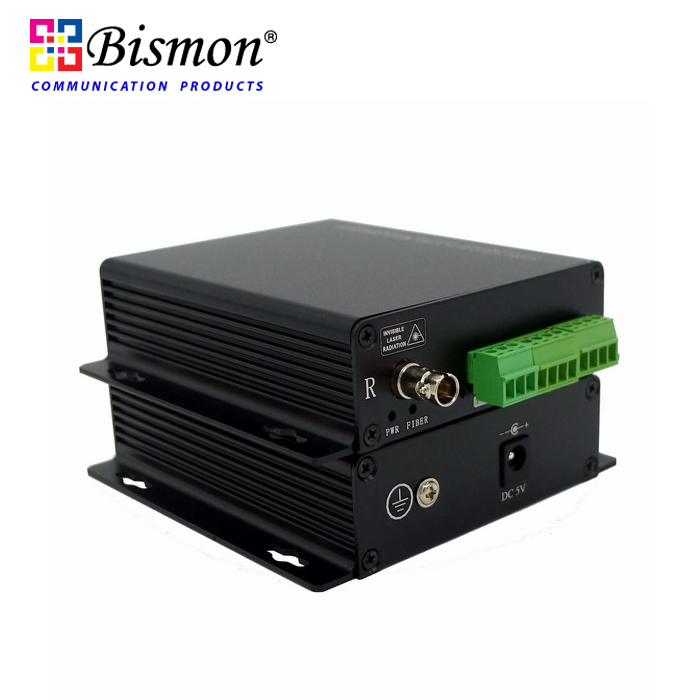

2 CH BIDI contact closure to Fiber optic Single fiber 20KM(SM), FC Connector


Part number : B1-2CHBIDICCSM-FC

Brand : BISMON

Price : 8,468.00 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

2ch BIDI Contact Closure over Fiber support 2 Channels BIDI contact closure over one multimode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications with Access Control System, Alarm Event Triggering, Building Automation, and Environmental Control Systems, Fire & Alarm Systems, PIR signal Transmission, Traffic Signal Control Equipment, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors is optional.
Plug and Play design ensure adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Features

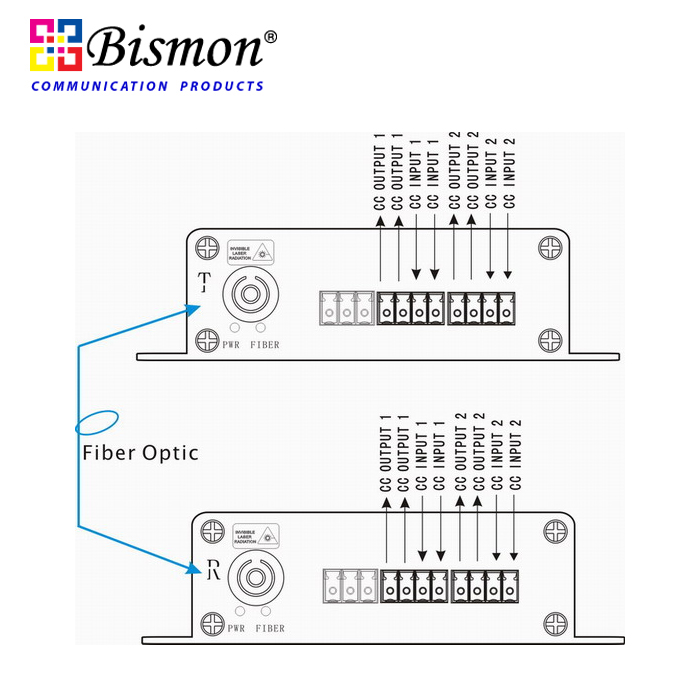

•  Support Point-to-Point or Daisy-Chain connection
•  Dry Contact Closure or TTL data over one fiber
•  Multimode Fiber Support for Distances up to 2 km
•  Single-Mode Fiber Support for Distances up to 100 km
•  LED Status Provide Rapid Indication of Operating Parameters
•  No EMI or RFI and no ground loops
•  Stand-alone or rack-mount
•  Produce according to customer's specifications, providing OEM

Specifications

Optical
Optical connector FC
Connector Standard terminal lead
Wavelength 1310nm&1470nm~1610nm
Output Power -14~ -8dBm /   -5~0dBm
Optic fiber 50/125u multimode, 62.5/125u multimode, 9/125u single mode
Rx sensitivity -30dBm
Optical connector FC, ST, SC (optional)
Distance 0~2KM (MM)   /   0~100KM   (SM)
Contact Closure:
Connector Standard terminal lead
Signal input alarm, Binary input, support TTL, RS-232/422/485 or passive dry Contact Closure
Signal output Arbitrary alarm, Binary output, support TTL, RS-232/422/485 or relay output
Electrical & Mechanical
Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 3W
Stand-Alone Dimensions: 104mm × 104mm × 28mm
Shipping Weight: (include Transmitter & Receiver ) 0.75kg
Environmental
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours




Opitcal? Wavelength 1310nm&1470nm~1610nm Output Power -14~ -8dBm / -5~0dBm Optic fiber 50/125u multimode?62.5/125u multimode?9/125u single mode Rx sensitivity -30dBm Optical connector FC?ST?SC (optional) Distance 0~2KM (MM) / 0~100KM (SM) Contact Closure: Connector Standard terminal lead Signal input alarm, Binary input, support TTL?RS-232/422/485 or passive dry Contact Closure Signal output Arbitrary alarm, Binary output, support TTL?RS-232/422/485 or relay output Electrical & Mechanical Input Power Requirements: DC 5V@2A Power Adapter: AC 90V~240V Power Consumption: < 3W Stand-Alone Dimensions: 104mm ? 104mm ? 28mm Shipping Weight: (include Transmitter & Receiver ) 0.75kg Environmental Operating Temperature: -20?C ~ +75?C Storage Temperature: -40?C ~ +85?C Relative Humidity: 0% ~ 95% (non-condensing) MTBF: >100,000 hours
