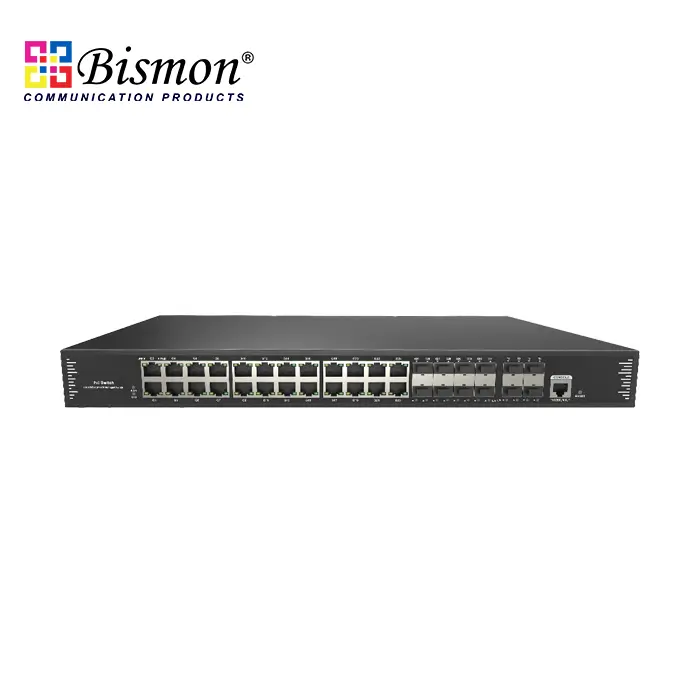

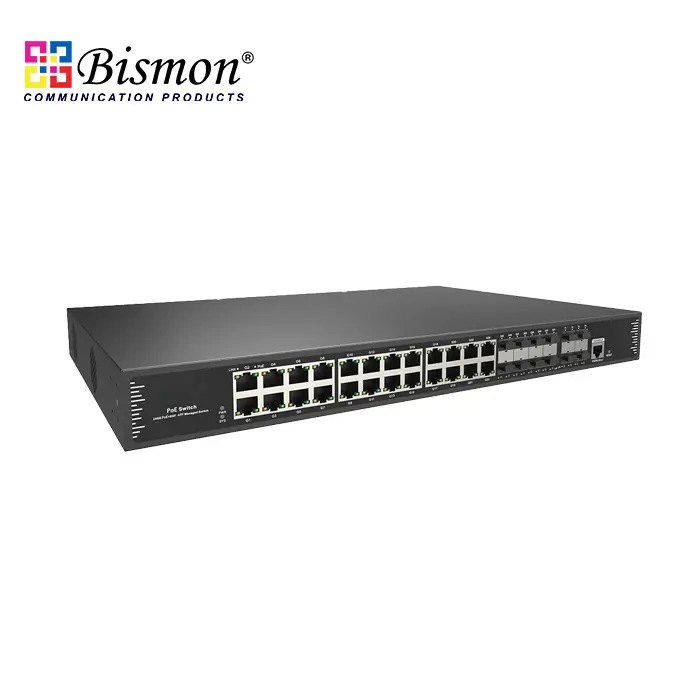

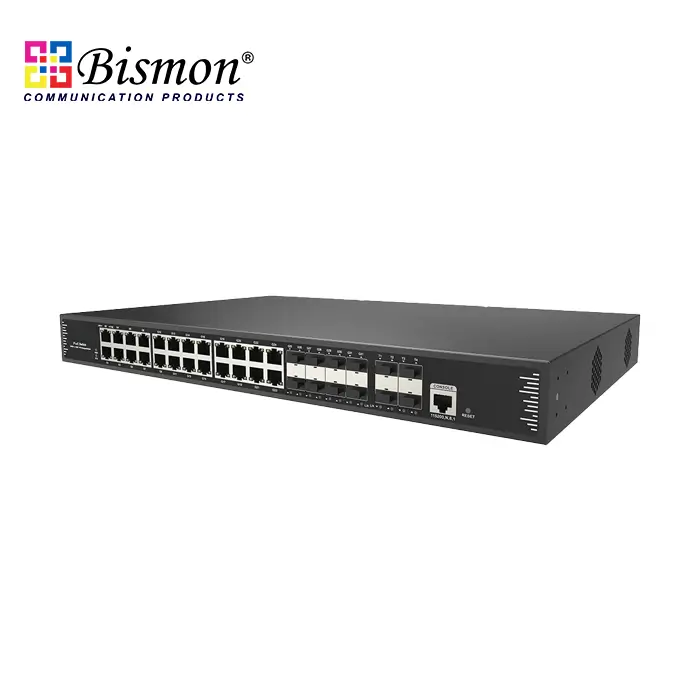

24*10/100/1000M RJ45 ports and 8*100/1000M SFP fiber ports (combo port) and 4*1/10G uplink SFP+ L3 managed PoE switch (400W)
คำอธิบายสินค้า สวิตช์จัดการเครือข่าย L3 ระดับมืออาชีพที่มีพอร์ต RJ45 ความเร็ว 10/100/1000M จำนวน 24 พอร์ต พอร์ต SFP fiber ความเร็ว 100/1000M จำนวน 8 พอร์ต และพอร์ต Uplink SFP+ ความเร็ว 1/10G จำนวน 4 พอร์ต พร้อมฟังก์ชัน PoE ในตัวกำลังไฟ 400W ที่สามารถจ่ายไฟสูงสุด 30W ต่อพอร์ต เหมาะสำหรับสถาปัตยกรรมเครือข่ายขนาดใหญ่ที่ต้องการความเสถียรและความเร็วสูง อุปกรณ
Part number : B1-POE58036PFM
Brand : BISMON
Price : 33,868.00 Baht
Delivery time : 15 Day
Minimum order quantity : 1 Pcs.
Size : 440*290*44.5mm
Warranty : 2 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
The B1-POE58036PFM is a 10G uplink L3 managed PoE fiber switch independently developed by BISMON. It has 4*1/10G uplink SFP+ fiber ports and 24*10/100/1000Base-T adaptive RJ45 ports and 8*100/1000Base-X SFP fiber ports (combo port). Port 1-24 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP camera, VoIP phone, building visual access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises.
The B1-POE58036PFM has L3 full network management function, supports IPV4/ IPV6 management, dynamic route full-speed forwarding, complete security protection mechanism, complete ACL/ QoS policy, and rich VLAN functions, and is easy to manage and maintain. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important Uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
FEATURE
Gigabit access, uplink 1/10G SFP+ fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
- Support Gigabit RJ45 port and 1/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
- PoE ports support priority. When the remaining power is insufficient, priority is given to high-priority ports to avoid equipment overload.
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- 24*10/100/1000Base-T RJ45 ports support PoE power supply to meet security monitoring, conference call systems, wireless coverage, and other scenarios.
Strong business processing capability
- IEEE802.1Q VLAN, flexible VLAN division, and QinQ configuration.
- ERPS/STP/RSTP/MSTP spanning tree protocol eliminates layer 2 loops and realizes link backup.
- QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
- ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
- Static aggregation and dynamic aggregation effectively increase link bandwidth, achieve load balancing, and link backup, and improve link reliability.
- Support IGMP V1/V2/V3 multicast protocol and IGMP Snooping to meet the needs of multi-terminal high-definition video surveillance and video conferencing access.
Security
- Port isolation and storm control.
- Support IP+MAC+port+VLAN quadruple flexible combination binding function.
- Support 802.1X authentication to provide authentication functions for LAN computers, and control the authorization status of controlled ports according to the authentication results.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, and PoE.
- Using self-developed power supply with high redundancy design provides long-term and stable PoE power output.
- Low power consumption, with fan, Galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.
Easy O&M management
- CPU monitoring, memory monitoring, Ping detection, and cable length detection.
- Encryption management methods such as HTTPS, SSLV3, and SSHV1/V2 are more secure.
- RMON, system logs, and port traffic statistics facilitate network optimization and transformation.
- LLDP facilitates the network management system to query and determine the communication status of the link.
- Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet and other diversified management and maintenance methods.
DIMENSION
