Bismon All  of communication products

6-Cores 50/125 um Fiber Optic Outdoor All Dielectric Cable


Part number : 3-0769509-2

Brand : COMMSCOPE

Price : 51.25 Baht
(Dealer price can log-in/ Exclude Vat)

download pdf



OVERVIEW



AMP OSP (outside plant) cables are designed for campus-type environments, Aerial links (when use a messenger strand) or Ducted underground service for long runs between buildings. AMP cables are tested to the TIA requirements for optical fiber cable performance, and are designed to exceed all of the performance requirements for current and proposed applications such as 100BASE-F, 155/622 Mbps ATM ,AMP NETCONNECT distribution cables has been designed to meet or exceed the requirements of 10Gigabit while still supporting legacy LED and VCSEL The system fulfills the specifications of IEEE 802.3gigabit Ethernet, IEEE 802.3ae,10Gigabit Ethernet. The cables are available with either single mode, 62.5-micron Extended Grade or 50-micron and 50/125 Laser Optimized (XG).

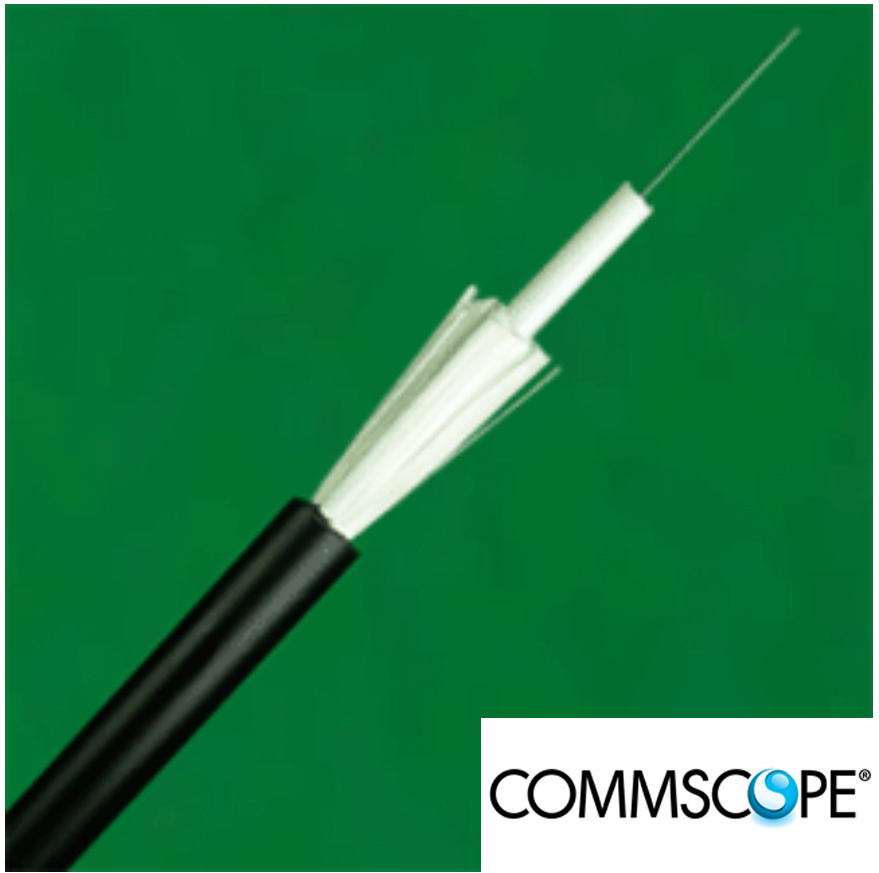

The optical fiber cable shall contain (4,6,12) strain-free (single-mode, 62.5-micron Extend grade or 50-micron, 50/125-micron laser optimized XG) fibers in a central PBT Loose tube surrounded by water-blocking gel, (Thixotropic Gel) and glass yarn reinforcement strength member, TIA/EIA 598 color coded fibers for easy identified, All dielectric and a protective outer jacket MDPE Polyethylene jacket for UV/harsh outdoor environment protection, (HDPE available on request). The cable jacket shall black color. The cable shall meet the applicable performance requirement listed in the following tables.



Feature



 • Suitable for inter-building backbone cabling (aerial, duct or direct burial)

 • TIA color-coded fibers for easy identification

 • Water-blocking Gel technology

 • Small diameter single tube construction saves space inside ducts

 • UV-protected jacket for harsh outdoor environments

 • Low friction jacket for ease of pulling through ducts

 • All-dielectric construction

 • Compatible with splitter kits, for termination with epoxy/polish, Light Crimp and Light Crimp Plus connectors

สายใยแก้วนำแสง จาก AMP NETCONNECT เป็นสายที่ไม่มีส่วนเป็นสื่อนำไฟฟ้าทั้งเส้น เหมาะสำหรับงานด้านต่างๆทั่วไปทั้งใน อาคาร ภายนอก ร้อยท่อได้เป็นอย่างดี (ทางบริษัท บิสม่อน จำกัด ยังมีบริการแบ่งตัดสาย ย่อยในระยะที่ลูกค้าต้องการ ในราคาเป็นกันเอง)
