8 ports 10/100/1000M RJ45 PoE +4 SFP slot(10GB)Industrial Switch Managed Layer3


Part number : B1-IPS38168PFM

Brand : BISMON

Price : 27,868.00 Baht
(Dealer price can log-in/ Exclude Vat)

Delivery time : 15 Day

Minimum order quantity : 1

Warranty : 3



OVERVIEW



The B1-IPS38168PFM is a 10G uplink L3 managed industrial PoE fiber switch independently developed by BISMON. it has 12*10/100/1000Base-T RJ45 ports and 4*1/10G SFP+ fiber slot ports. Port 1-8 can support IEEE 802.3af/at standard POE, single port POE power up to 30W, and the maximum POE output power of the whole machine is 120W(at-240W).  As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, web camera, VoIP phone, industrial sensor through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.

The B1-IPS38168PFM has L3 full network management, supports IPV4/IPV6 management, static route full line rate forwarding, security protection mechanism, ACL/QoS policy and VLAN, and is easy to manage and maintain. It has the leading ring network technology, supporting a variety of industrial redundant redundant ring network protocol, any port can be a ring, support chain type, star type, double star type, ring type, tangent ring, intersecting ring, coupling ring, ring network 20ms self healing. It has high reliability, security and manageability, ensure reliable transmission of key data, support remote management, and can manage cluster management with ONV-NMS network management platform. B1-IPS38168PFM industrial series products fully follow industrial product design and material. The casing uses aluminum alloy to enhance heat dissipation. It has excellent industrial field environment adaptability (including mechanical stability, climate and environment adaptability, electromagnetic environment adaptability, etc.), Protection level is IP40, support dual power supply, low power consumption no fan heat dissipation technology, MTBF average fault free working time can reach 35 years, 5 years warranty.



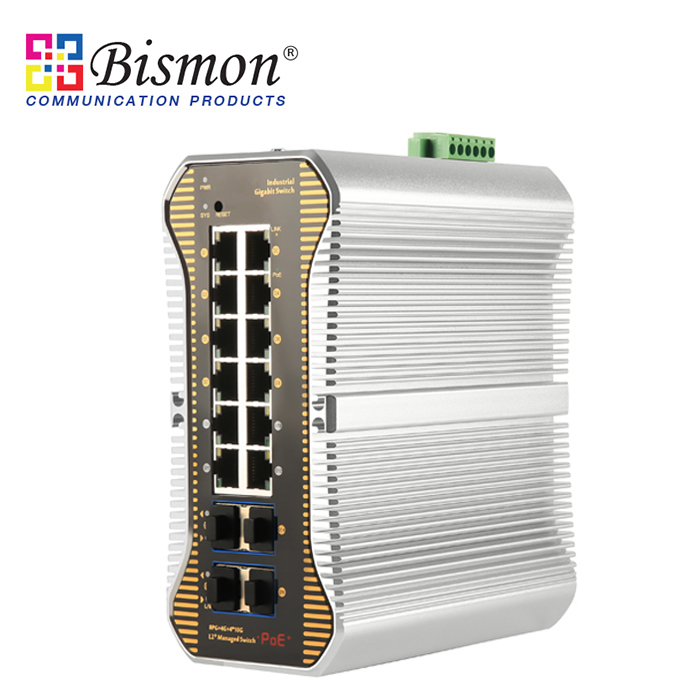

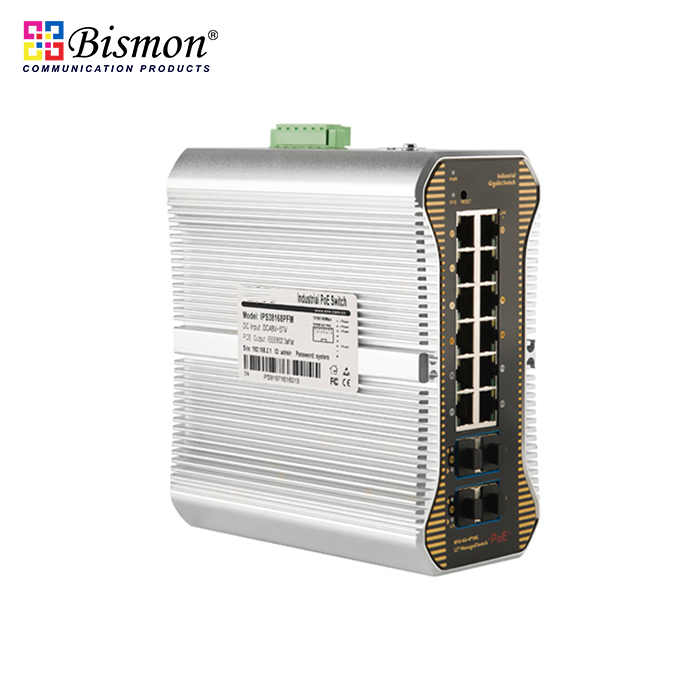

L3 managed industrial PoE fiber switch with 12*10/100/1000M RJ45 ports and 4*1/10G uplink SFP+ slot ports, Port 1-8 can support IEEE802.3af/at PoE. Support dual DC power supply input and DIN rail mounting.



FEATURE

Full gigabit port ,10G uplink

 • All series supports Ethernet port and 10G SFP+ port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

 • Support non-blocking wire-speed forwarding.

 • Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.



Intelligent PoE power supply

 • 8*10/100/1000Base-T RJ45 ports can support POE power supply to meet the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

 • IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

 • Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

 • PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.



Security

 • 802.1X authentication.

 • Port isolation,Storm control.

 • IP-MAC-VLAN-Port binding.



Strong business processing capability

 • IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN, and QinQ configuration.

 • QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

 • ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

 • IGMP V1/V2 and IGMP Snooping.

 • ERPS/STP/RSTP/MSTP.

 • Static and dynamic aggregation.



Stable and reliable

 • CCC,CE, FCC, RoHS.

 • Low power consumption, no fan , aluminum casing.

 • The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.



Easy operation and maintenance management

 • Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

 • HTTPS, SSLV3, and SSHV1/V2.

 • RMON, system log, LLDP, and port traffic statistics.

 • CPU monitoring, memory monitoring, Ping test, and cable diagnose.



Specification



Product Name                                                               10G uplink 16-port L3 managed industrial PoE switch

Product Model                                                              B1-IPS38168PFM

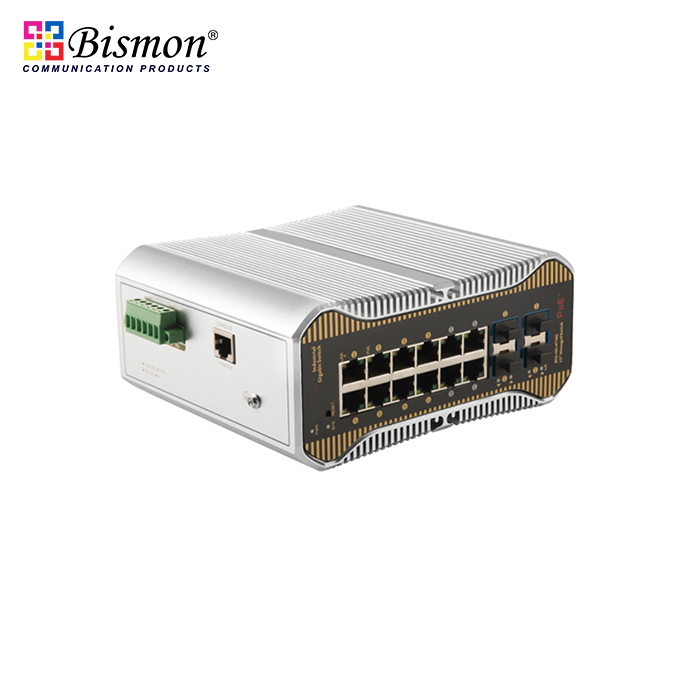

Fixed Port                                                                       8*10/100/1000Base-T PoE ports (Data/Power)

  4*10/100/1000Base-T uplink RJ45 ports (Data)

  4*1/1G uplink SFP+  slot ports (Data)

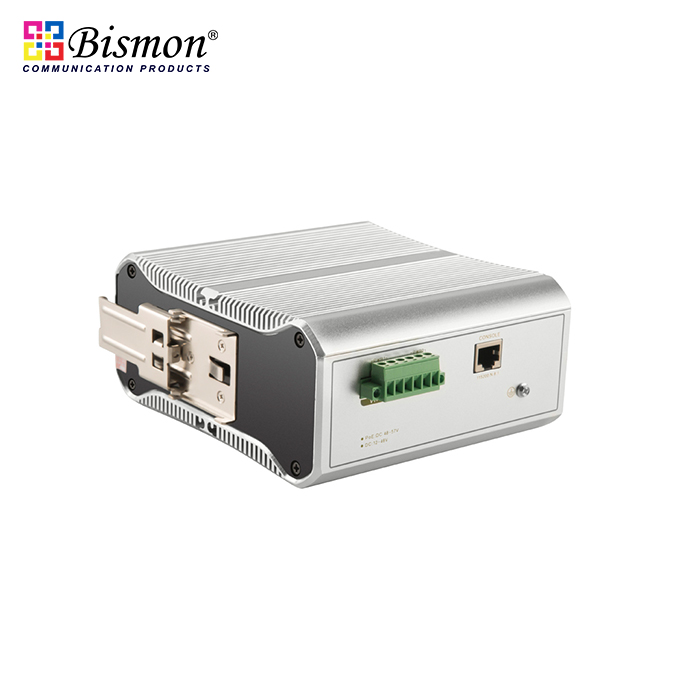

  2 set of V+, V- redundant DC power interface (6 Pin Phoenix terminal)

Ethernet Port                                                                Port 1-12 support 10/100/1000Base-T,auto-sensing,Full/half duplex MDI/MDI-X self-adaption



Chip Parameter

Network Management Type                                      L3

Network Protocol                                                        IEEE802.3 10BASE-T, IEEE802.3i 10Base-T

 IEEE802.3u 100Base-TX , IEEE802.3ab 1000Base-T

 IEEE802.3z 1000Base-X

 IEEE802.3x

Forwarding Mode                                                       Store and Forward(Full Wire Speed)

Switching Capacity                                                      598Gbps

Forwarding                                                                   77.38Mpps

MAC                                                                               32K

Buffer Memory                                                            32M

Jumbo Frame                                                               9.6K

LED Indicator                                                                System : SYS (green), Network: Link (yellow), Fiber Port : L/A (green), PoE: PoE (green)

Reset Switch                                                                 Yes, One-button factory reset



PoE & Power

PoE Port                                                                         Port 1 to 8

PoE Management                                                        PoE working status

 Delay start of power supply

 PoE output priority configuration

 Scheduling of PoE operation and time

 Total power limit of PoE power supply

 PoE output power allocation, off& af &at

Power Supply Pin                                                         Default: 1/2 (+), 3/6 (-)

Max Power Per Port                                                     30W, IEEE802.3af/at

Total PWR / Input Voltage                                          120W /48VDC

Power Consumption                                                    Standby<15W, Full load<120W

Working Voltage                                                           48-57VDC, 6 Pin industrial Phoenix terminal, support anti-reverse protection.

Power Supply                                                                No, optional 48V/120W or 48V/240W industrial power supply



Physical Parameter

Operation TEMP / Humidity                                      -40~+80°C;5%~90% RH Non condensing

Storage TEMP / Humidity                                           -40~+85°C;5%~95% RH Non condensing

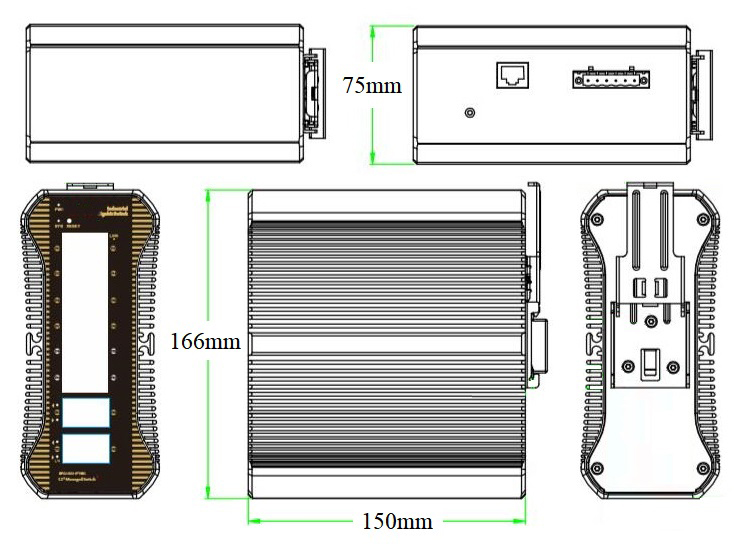

Dimension (L*W*H)                                                    166*149*74.5mm

Net /Gross Weight                                                       <1.9kg / <2.4kg

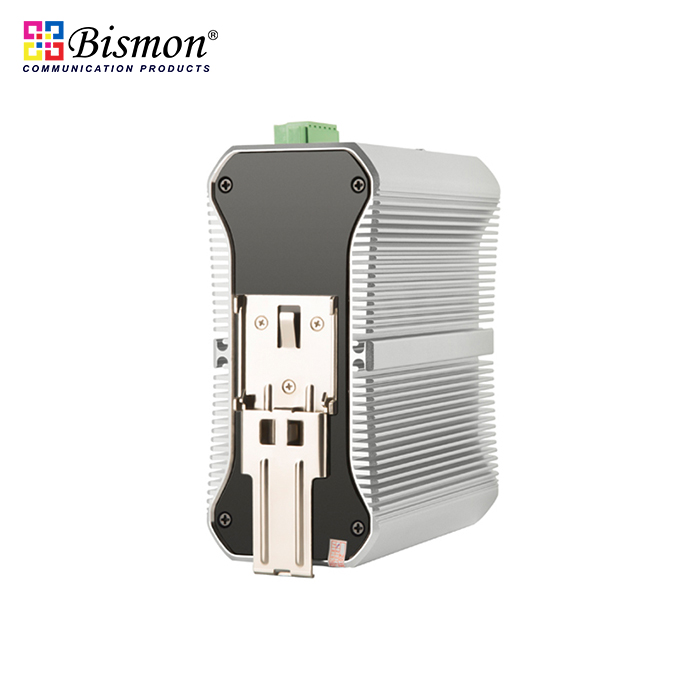

Installation                                                                    Desktop, DIN rail



Certification & Warranty

Lightning protection / protection level

Lightning protection: 6KV 8/20us; Protection level: IP40

IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge

IEC61000-4-3(RS):10V/m(80~1000MHz)

IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV

IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV

IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz)

IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s

IEC61000-4-9(pulsed magnet field):1000A/m

IEC61000-4-10(damped oscillation):30A/m  1MHz

IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV

IEC61000-4-16(common-mode transmission):30V; 300V,1s

FCC Part 15/CISPR22(EN55022):Class A

IEC61000-6-2(Common Industrial Standard)

Mechanical Properties                                               IEC60068-2-6 (anti vibration)

IEC60068-2-27 (anti shock)

IEC60068-2-32 (free fall)

Certification                                                                 CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS

Warranty                                                                      3 years, lifelong maintenance.
