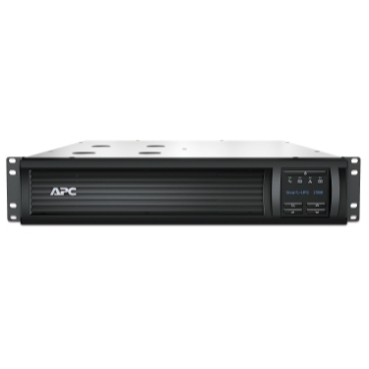

APC Smart-UPS, Line Interactive, 1500VA/1000W, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartSlot, AVR, LCD
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1500VA line interactive tower UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 8x NEMA 5-15R outlets. It has a SmartSlot for an optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts, and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 3-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Specifications
|
Overview
|
|
Presentation
|
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
|
|
Lead time
|
Usually in Stock
|
|
Main
|
|
Run time for load: 1000W
Min-max: 100-1000 W
|
7min 9s
|
|
Max. Capacity Used
|
100 %
|
|
Main Input Voltage
|
230 V
|
|
Other Input Voltage
|
220 V
240 V
|
|
Main Output Voltage
|
230 V
|
|
Other Output Voltage
|
220 V
240 V
|
|
Rated power in W
|
1000 W
|
|
Rated power in VA
|
1500 VA
|
|
Input Connection Type
|
IEC 320 C14
|
|
output connection type
|
4 IEC 320 C13
2 IEC Jumpers
|
|
number of rack unit
|
2U
|
|
Battery type
|
Lead-acid battery
|
|
provided equipment
|
USB cable
Documentation CD
Installation guide
Rack mounting support rails
Smart UPS signalling RS-232 cable
|
|
General
|
|
Number of power module filled slots
|
0
|
|
Number of power module free slots
|
0
|
|
Redundant
|
No
|
|
Physical
|
|
colour
|
Black
|
|
Height
|
8.6 cm
|
|
Width
|
43.2 cm
|
|
Depth
|
45.7 cm
|
|
Product weight
|
28.64 kg
|
|
Mounting location
|
Front
|
|
Mounting preference
|
Lower
|
|
Mounting mode
|
Rack-mounted
|
|
Two post mountable
|
0
|
|
USB compatible
|
Yes
|
|
Input
|
|
input voltage limits
|
151...302 V adjustable
160...286 V
|
|
network frequency
|
50/60 Hz +/- 3 Hz auto-sensing
|
|
Output
|
|
Harmonic distortion
|
Less than 5 % at full load
|
|
Maximum configurable power in VA
|
1500 VA
|
|
Maximum configurable power in W
|
1000 W
|
|
Transfer time
|
2 ms typical
|
|
UPS type
|
Line interactive
|
|
Wave type
|
Sine wave
|
|
output frequency
|
47...53 Hz for 50 Hz nominal sync to mains
57...63 Hz for 60 Hz nominal sync to mains
|
|
Conformance
|
|
Product certifications
|
CE
CSA
EAC
RCM
TÜV
VDE
|
|
standards
|
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
|
|
Environmental
|
|
Acoustic level
|
46 dBA
|
|
Heat dissipation
|
90 Btu/h
|
|
Operating altitude
|
0...10000 ft
|
|
Ambient air temperature for operation
|
0…40 °C
|
|
Ambient air temperature for storage
|
-15…45 °C
|
|
Storage altitude
|
0.00…15240.00 m
|
|
relative humidity
|
0…95 %
|
|
storage Relative Humidity
|
0…95 %
|
|
Communications & Management
|
|
Alarm
|
Alarm when on battery : distinctive low battery alarm : configurable delays
|
|
control panel
|
Multifunction LCD status and control console
|
|
Emergency power off
|
Optional
|
|
Free slots
|
1
|
|
Surge Protection and Filtering
|
|
Surge energy rate
|
459 J
|
|
Noise suppression
|
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
25.1 cm
|
|
Package 1 Width
|
59.4 cm
|
|
Package 1 Length
|
60.3 cm
|
|
Package 1 Weight
|
31.91 kg
|
|
Unit Type of Package 2
|
P12
|
|
Number of Units in Package 2
|
8
|
|
|
