OVERVIEW

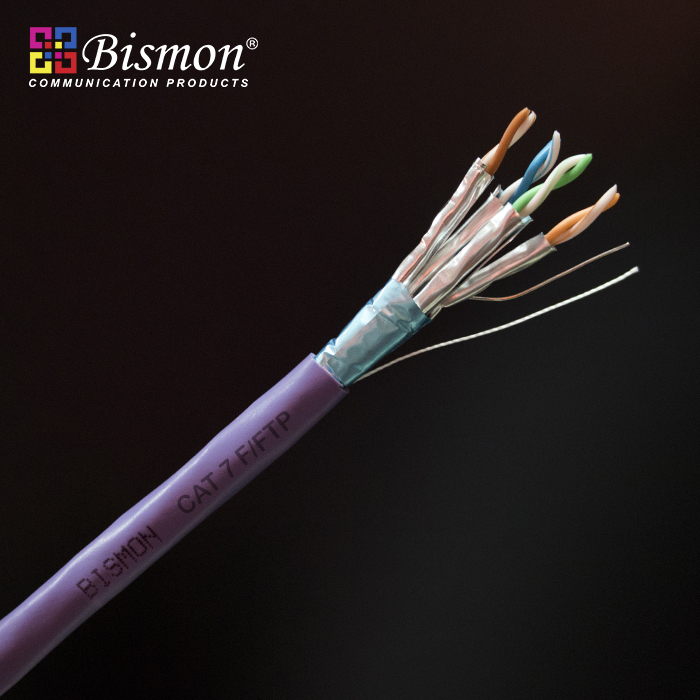

Category 7, Full speed 10GB copper Twisted pair cable F/FTP (Overall Foil shield/Foil shielded twisted pair), 4 pairs, Solid copper, 305M/Reel Meets IEC 61156-5 category 7, 6a, 6 and 5 requirements and IEC 61156, ISO/IEC 11801, The cable meets IEC 60332-1, UL CMR jacket -Shielded Copper cable, 4 pairs, category 7, solid 4 separately foil-shielded pairs, General shield: aluminum foil, Cable is used for indoor installation
Applications
• 4Mbps Token Ring (IEEE 802.5)
• 10Mbps 10Base-T Ethernet (IEEE 802.3u)
• 16Mbps Token Ring (IEEE 802.5)
• 100Mbps Fast Ethernet (IEEE 802.3u, ANSI X3T9.5 TPDDI)
• 100 VG ANYLAN (IEEE 802.12)
• 155 Mbps ATM
• 622Mbps ATM
• 1000Mbps 1000Base-T Gigabit Ethernet (IEEE 802.3)
• 10000Mbps 10GBase-T Ethernet (Distance 100Meter) (IEEE 802.3an)
• Broadband Video and voice, ISDN
• Voice over Internet Protocol (VoIP), IP Camera, CCTV
• Power over Ethernet (PoE) - IEEE 802.3af, IEEE 802.3at
General standards
• Complies with Category 7 cables exceed standards: ISO/IEC 11801 Class F, ANSI/TIA/EIA 568-B.2
• RoHs complies
• UL listed CMR Fire rated
• PVC: IEC 60332-1, UL CM, CMR
• LSZH: IEC 61034, IEC 60754, IEC 60332-1
| SPECIFICATION CATEGORY 7 F/FTP (600MHz) |
| |
|
| PHYSICAL |
|
| UTP Cable |
4 PAIR UTP CAT7 (600MHZ) |
| Gauge |
23 AWG (Solid bare copper) |
| Conductor Dia. Nom. |
0.57 mm |
| Insulation Material |
PE-Foam/skin-PE |
| Individual pair screen |
Aluminum Foil |
| Insulation Dia |
1.30 mm |
| Conductor |
Annealed Solid Bare Copper |
| Overall Shield |
Aluminum Foil |
| Drain Wire |
0.40 mm, Material: Tinned copper |
| Jacket |
PVC, CMR Rate(UL) |
| Sheath Thickness Outer |
0.45mm |
| Diameter |
7.5 mm |
| Ripcord |
1 Ripcord |
| Tensil strength Max. load |
110N(25lbf) (CMR rate) |
| Bending Min. install |
4x dia. |
| Operating Temperature Range |
-20 C ~ 60 C |
| Storage Temperature Range |
-20 C ~ 75 C |
| ELECTRICAL |
|
| Characteristic impedance (1-100MHz) |
100 ohm+-15 ohm |
| Characteristic impedance (100-600MHz) |
100 ohm+-25 ohm |
| Delay Skew |
45ns/100m |
| Conductor resistance |
< 93.8 ohm/km |
| Electrical Data at 20 C |
|
| Frequency |
600.0 MHz |
| Attenuation (dB/100M) |
46.6 |
| NEXT (dB) |
54.7 |
| ACR (dB) |
N/A |
| Return Loss (dB) |
10 |
| PS NEXT (dB) |
51.7 |
| PS ACR (dB) |
N/A |
| ELFLEXT (dB) |
32.6 |
| PSELFLEXT (dB) |
29.6 |
