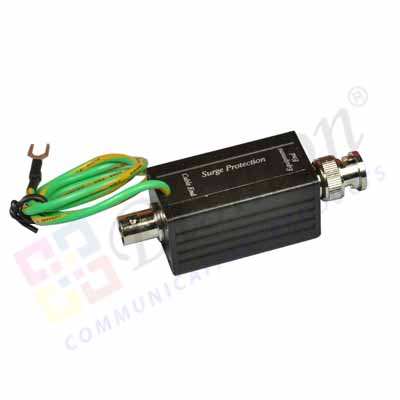

Coaxial Video Surge Protector BNC Connector


Part number : SP001

Brand : BISMON

Price : 1,376.00 Baht
(Dealer price can log-in/ Exclude Vat)

download pdf



OVERVIEW

Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.



Features:

Performs a different function than grounding requirements.

Protects equipment from high voltage surges from nearby lightning strikes.

Two stage protection: 130V, AC/DC 12V

Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR, etc.



Application

CATV System

Antenna of Television

Video Cassette Recorders

FM receivers

Video Cameras and monitors

Multiplexers and Quad Processor



Specifications:

BNC male to BNC female, Hi Frequency for both CCTV and CATV use

Surge Protection Attack Time: 1 ns

Maximum Surge Current:4 KV

Surge Life:300 surges of 100Amps

Normal Resistance Across Coax: 10,000 M£[

Surge Resistance Approx: 0£

BAND PASS: 0~1 GHZ

Power Passing Capability 130V AC/DC, 65 Vrms at 10Amps

Insertion Loss:Less than 0.2 dB

Return Loss (75 ohms):16dB

Return Loss (75 ohms): 16dB

WEIGHT: 80g
