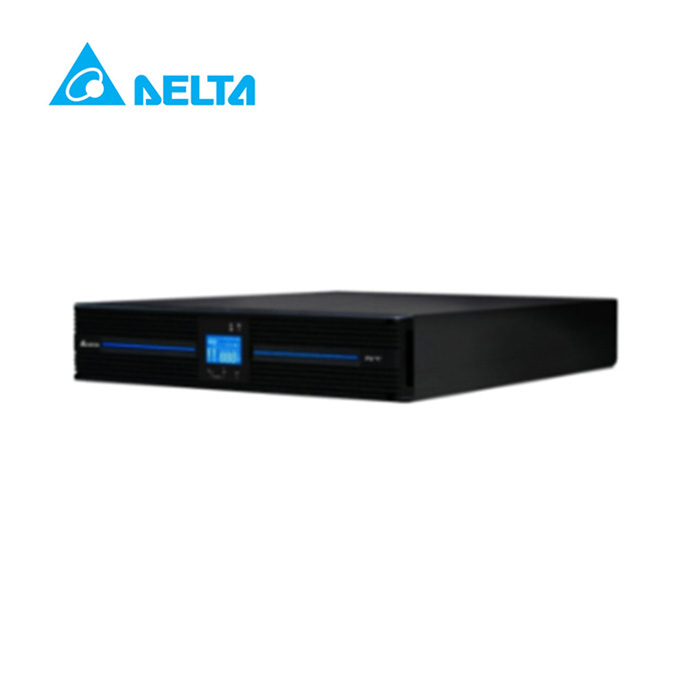

DELTA RT-SERIES ONLINE 2000VA/1800W LCD RACKMOUNT 2U 3Y WARRANTY ONSITE

Part number : RT-2K-3Y

Brand : Delta

Price : 24,300.00 Baht

(Ex-Vat 7%)

Delivery time : 1-2 Day

Warranty : 3Y

Model	R-2K

Power Rating	2kVA/1.8kW

Input	Nominal Voltage 200/208/220/230/240 Vac
	Voltage Range 175 ~ 280 Vac (full load) ; 80 ~ 175 Vac (50% ~ 100% load)
	Frequency 50/60 Hz ± 10 Hz
	Power Factor > 0.99 (full load)
	Current Harmonic Distortion < 3%

Output	Power Factor 0.9
	Voltage 200/208/220/230/240 Vac
	Voltage Regulation ± 1% (linear load)
	Frequency 50/60 Hz ± 0.05 Hz
	Voltage Harmonic Distortion < 3% (linear load)
	Overload Capability < 105%: Continuous; 105 ~ 125%: 1 minute; 125 ~ 150%: 30 seconds
	Receptacle IEC C13 x 6 ,IEC C19 x 1

Efficiency	Up to 93%
	Up to 96%

Battery	Battery Voltage 48 Vdc
	Charge Current 4A (up to 8A with optional inbuilt charger)

Audible Noise	< 43 dB

Display	LCD display and LED indicators

Interface	Mini Slot x 1, RS-232 Port x 1, USB Port x 1

Conformance	Safety CE

Dimensions (Wx Dx H)	440 x 430 x 88 mm

Weight	9.0 kg

Brand	DELTA
Model	RT-2K
Type	True online
Rated Capacity	2000VA/1800W
Nominal Input Voltage	200/208/220/230/240 Vac *When the UPS is de-rated to 90% of its capacity.
Nominal Output Voltage	200/208/220/230/240 Vac *When the UPS is de-rated to 90% of its capacity.
Input Frequency	40 - 70Hz
Backup Time	7 minutes When the total load reaches 75%.
Transfer Time	zero transfer time
Display	LCD
Input Connections	N/A
Output Connections	6 x IEC C13 1 x IEC C19
Interface Port	1 x SMART Slot 1 x RS-232 Port 1 x USB Port 1 x REPO
Indicator & Audible Alam/ Protection	N/A
Battery Type	N/A
Waveform Type	N/A
Typical recharge time	3 hours to 90%
Battery Replacement	N/A
Features	N/A
Cord Length	N/A
Environment	Operating Temperature : 0 ~ 50°C Relative Humidity : 5% ~ 95% (non-condensing)
Package Contents	N/A
