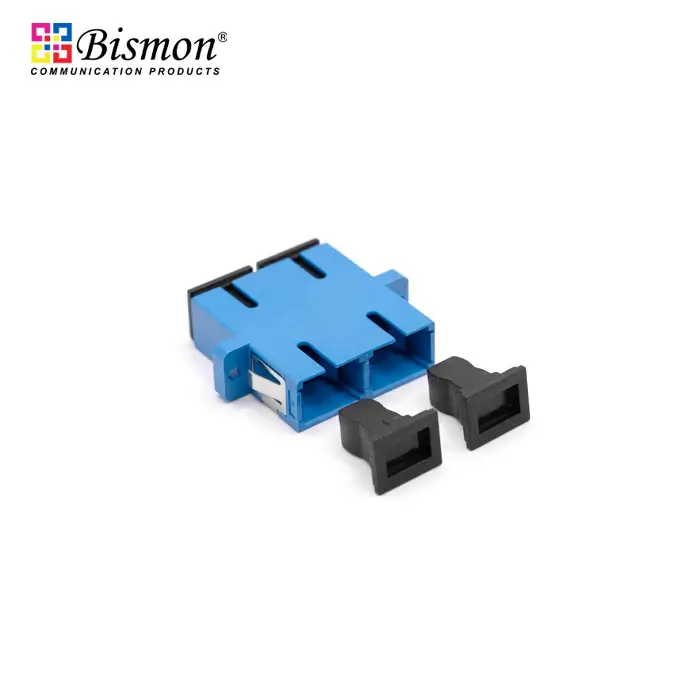

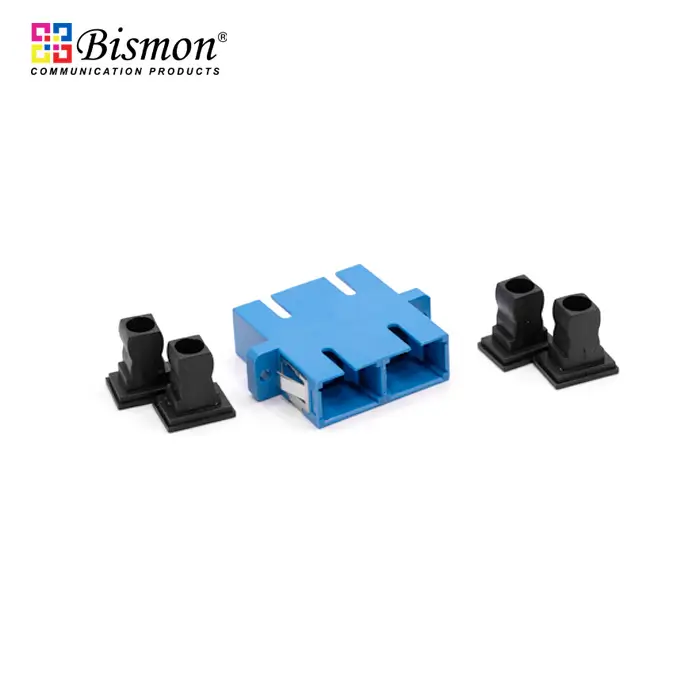

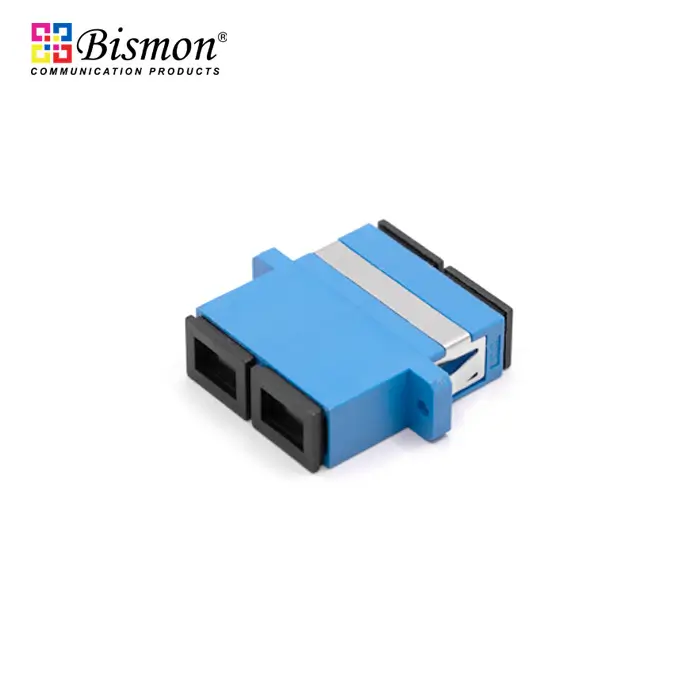

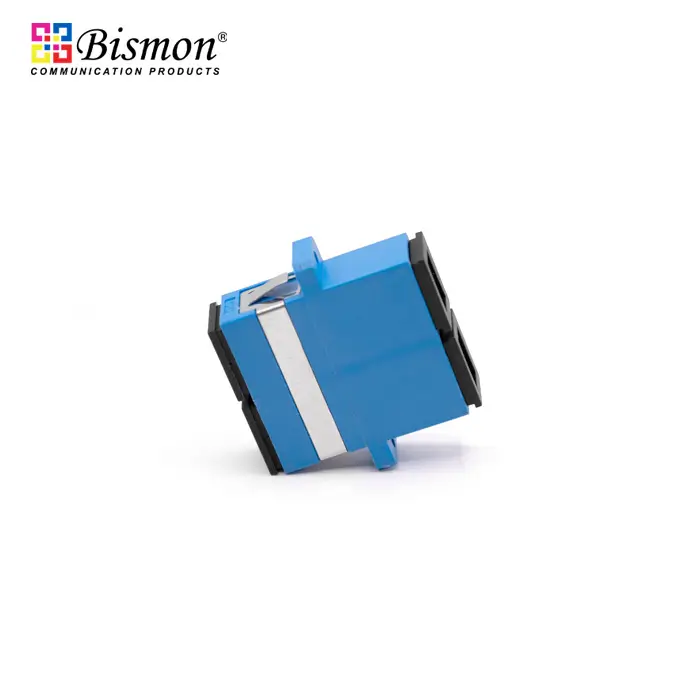

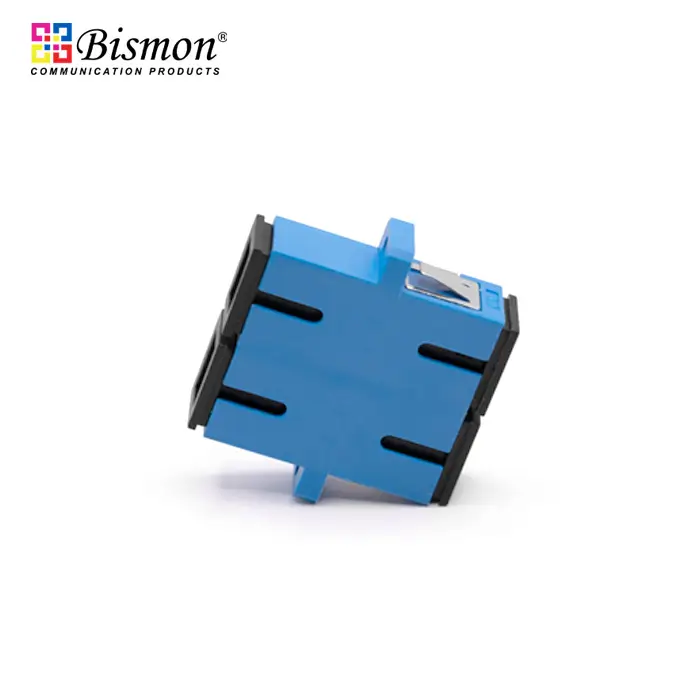

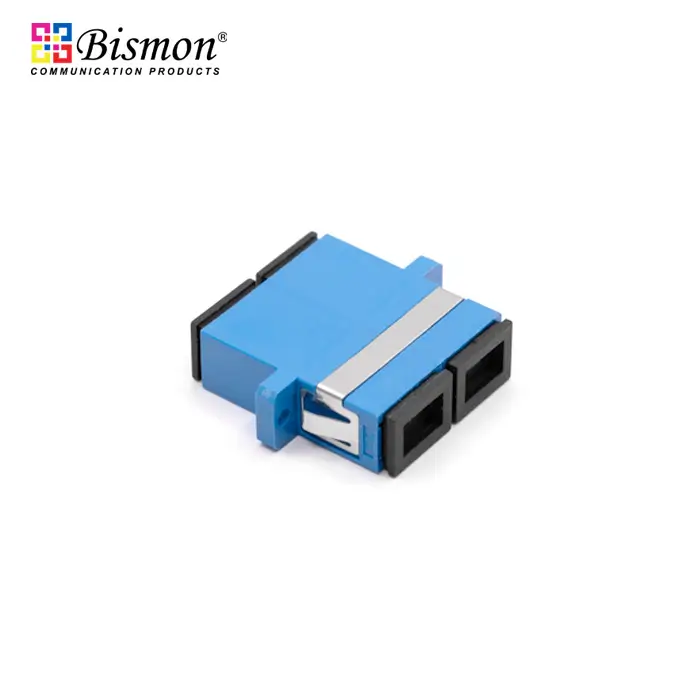

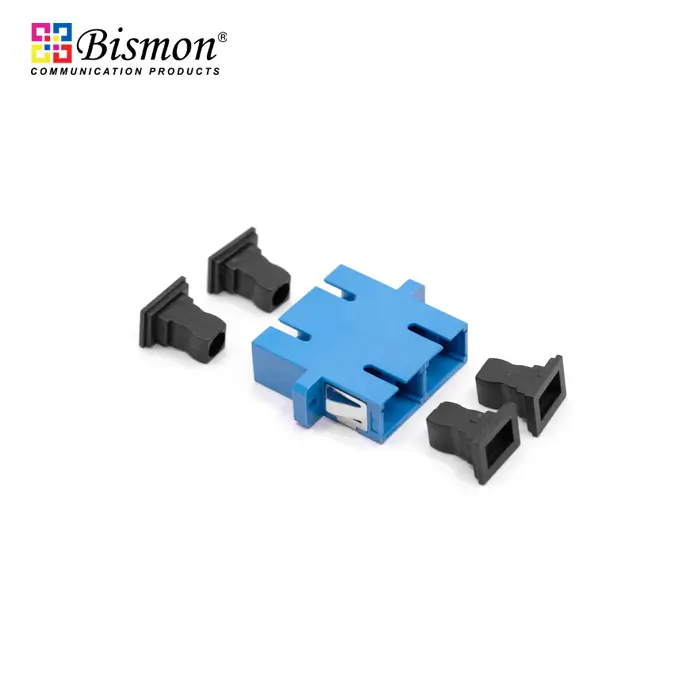

The SC Duplex fiber optic adapter single-mode is designed for reliable and efficient fiber connections, allowing easy plug-and-play of SC fiber cables. It offers minimal insertion loss variation, high compressive strength, and supports high-density installations. The single-mode SC adapters feature zirconia ceramic sleeves for tighter tolerance and precise alignment of fiber end faces.
These adapters can be easily mounted on fiber patch panels and termination boxes, making them ideal for use in fiber optic communication systems, CATV, LANs, test equipment, commercial buildings, residential networks, security systems, FTTH, FTTP, FTTA, and environments with high EMI.
Applications
The single-mode LC couplers are easy to mount on fiber patch panels and termination boxes. They’re perfect for use in:
-Fiber optic communication systems
-CATV networks
-Local area networks (LAN)
-Test and measurement equipment
-Commercial and residential setups
-Security systems
-FTTH, FTTP, FTTA deployments
-High EMI environments
Key Features
-Low insertion loss (< 0.2 dB)
-Durable one-piece design prevents breakage
-Environmentally stable for dependable performance
-Long-lasting: Up to 500 mating cycles
-Easy to install in various setups
-Good insertion/extraction life
-VFL-compatible: Light from visual fault locator can still pass through for easy signal tracing
Standards Compliance
-ISO/IEC 11801
-Cenelec EN 50173-1 / 50173-5
-ANSI/TIA-568 D.3
-ISO/IEC 24764 / TIA-942
Applications
-Fiber Telecommunications
-Optical Security and CATV
-FTTx (FTTH, FTTP, FTTA)
-Local, Wide, and Global Area Networks (LAN/WAN/GAN)
-High EMI/RFI environments
-Server rooms, racks, and patch panels







Specification |
|
|
|
|
|
Optical Performance |
Ceramic |
Conformance |
Insertion Loss |
0.20dB |
IEC 61300-3-4 |
Return Loss |
>-60 |
IEC61300-2-2 |
Mating Durability |
500 |
IEC 61754-20 |
Ferrule |
Zirconia ceramic |
|
Operating Temperature |
-25 to +70,12 cycles |
IEC 61300-2-22 |
