Overview

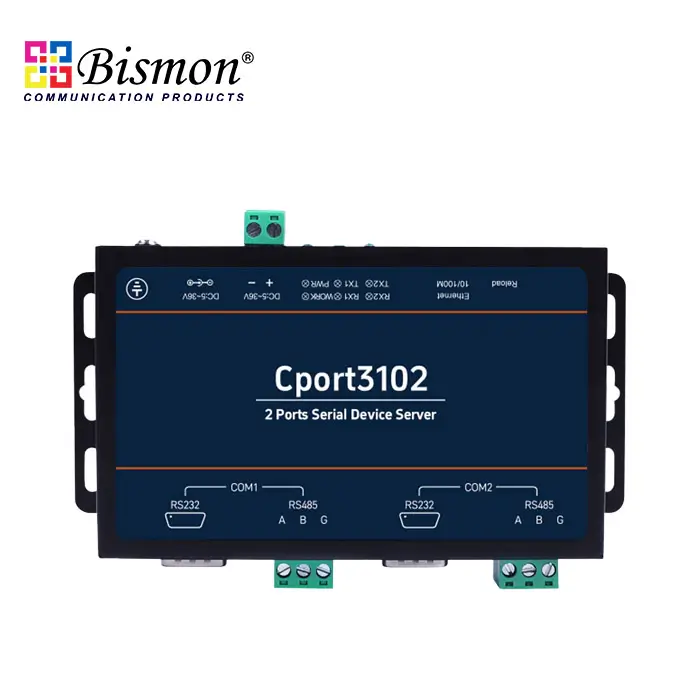

B1-Cport3102 is 2-ports serial to Ethernet converter. It adopts the Cortex-M7 solution, which has a main frequency up to 400MHz, powerful performance, fast transmission speed, and high reliability. Equipped with a deeply optimized TCP/IP stack, built-in hardware and software watchdog and a variety of keepalive mechanisms, B1-Cport3102 keeps online all the time. It supports TCP Client, TCP Server, UDP Client, UDP Server and HTTPD Client working modes, achieves data transparent transmission via simple configuration.

The B1-Cport3102 supports Modbus RTU Master for retrieving field site data from serial meters. After collecting data, users can convert serial data to MQTT json format data, allowing users to get field site data. This two-in-one design reduces system complexity and the amount of space required in the network topology, as well as overall installation time.

Modbus Gateway

It supports Modbus TCP and Modbus RTU protocol mutual conversion, a multi-host polling function.

Industrial Grade Design

The device conforms to industrial design standards. Reliable EMC protection and -40~85? operating temperature make it endure various complex industrial scenarios.

Dual Sockets

Each serial port supports connecting to two different servers at the same time. Two sockets are mutually backed up, providing higher reliability and better flexibility

Product Features;

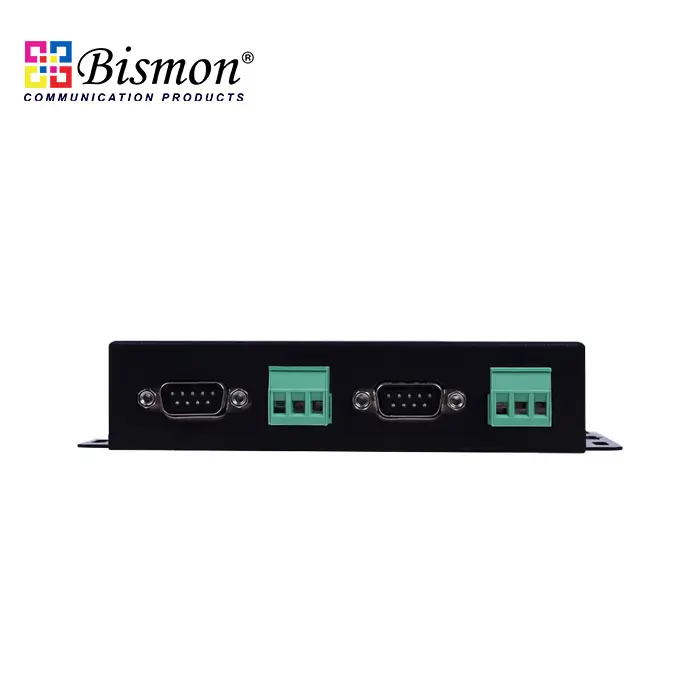

- Support 2 serial ports working independently.

- Support 5V-36V wide voltage input, with reverse polarity protection.

- Support Modbus RTU to Modbus TCP protocol conversion.

- Support the keepalive mechanism to quickly detect dead connections and reconnect.

- Support hardware watchdog, which automatically restarts when the device goes down.

- Provide remote serial access over the Internet for industrial serial devices

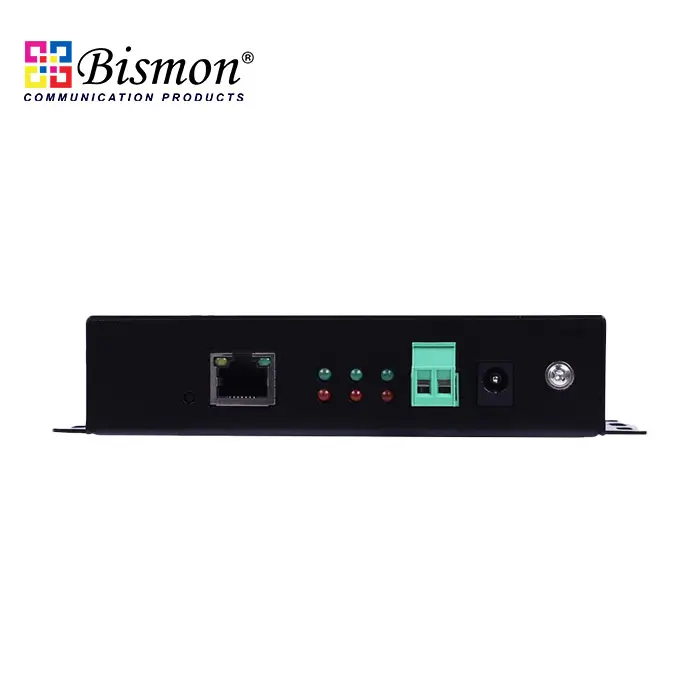

- 10/100Mbps Ethernet port and support Auto MDI/MDIX

- Software selectable RS-232/422/485 3-in-1 serial port?N5X0 models?

- Rugged metal housing with IP30 protection for wall or optional DIN-Rail mount

- Built-in 15KV ESD serial port protection

- Support a wide industrial operating temperature,-40?~85?

- Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
