OVERVIEW

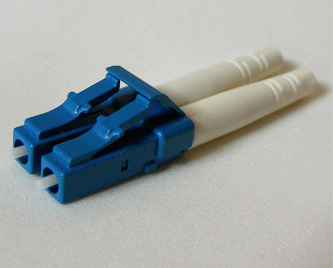

LC-Connector Duplex SM Zirconia Ferrule (PC), 3.0mm Boot

The LC connector licensed by Lucent Technologies provides a pull-proof and small size perfect for high density applications. Available in simplex or duplex versions. The LC connector is provided with a 1.25mm zirconia ferrule. The LC also incorporates a unique latching mechanism providing stability in system rack mounts.

Application:

 • Telecommunications

 • Local area network

 • Fiber optic sensors

 • Testing instruments

 • CATV

Feature:

 • PC ferrule with20mm radius fast polishing

 • 8-degree angle PC ferrule Ceramic/Zirconia with ultra-low insertion loss

 • Low back reflection los s

 • Easy to handle

 • Environmentally stable

 • Typical Insertion Loss, dB: Single mode (9/125um) = 0.15

 • Typical Insertion Loss, dB: Multi mode(50,62.5/125um) = 0.3

 • Operating Temperature, C: - 40 ~ +75

 • Storage Temperature, C: - 55 ~ + 85
