General Information
Manufacturer: Allied Telesis, Inc
Manufacturer Part Number: AT-X950-52XSQ-B05
Manufacturer Website Address: http://www.alliedtelesis.com
Brand Name: Allied Telesis
Product Series: x950
Product Model: x950-52XSQ

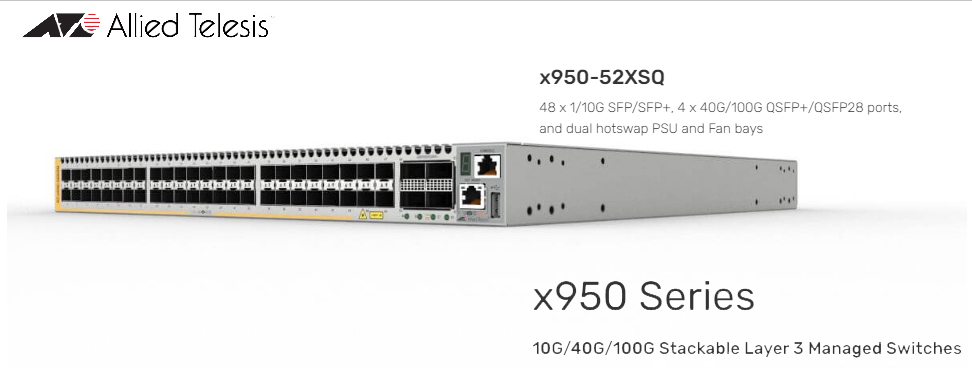

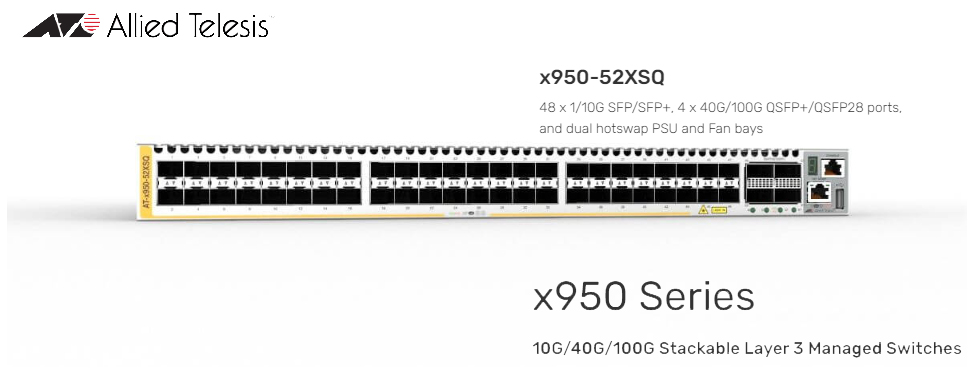

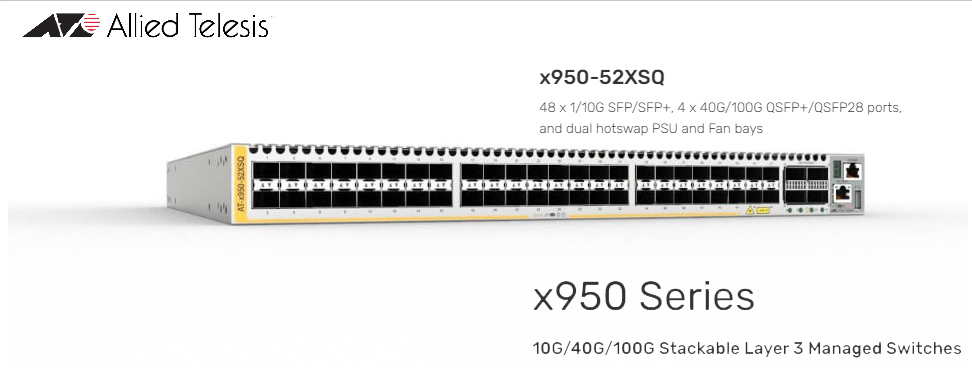

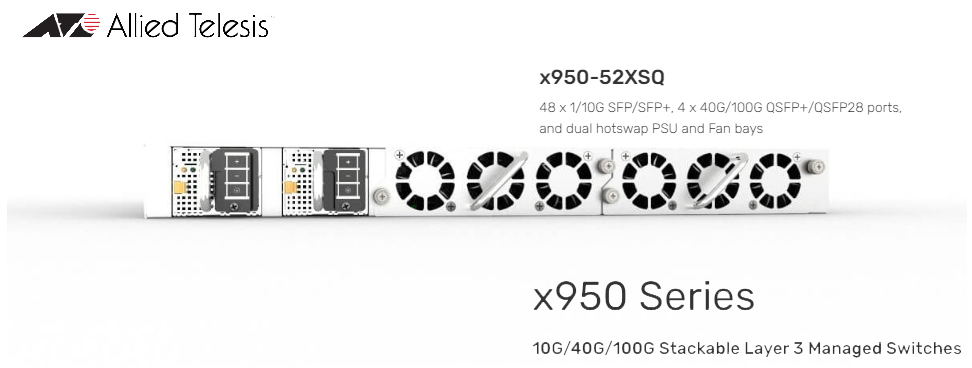

Product Name: x950-52XSQ Layer 3 Switch
Product Type: Layer 3 Switch
Interfaces/Ports
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

• 48 x 10 Gigabit Ethernet Expansion Slot
• 4 x 100 Gigabit Ethernet Expansion Slot

Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology:

• 10 Gigabit Ethernet
• 100 Gigabit Ethernet

Network Technology:

• 10GBase-X
• 100GBase-X

I/O Expansions
Number of Total Expansion Slots: 52
Expansion Slot Type:

• SFP+
• QSFP28

Number of SFP+ Slots: 48
Network & Communication
Layer Supported: 3
Networking Standards:

• IEEE 802.1x
• IEEE 802.1ae
• IEEE 802.2
• IEEE 802.3
• IEEE 802.3ab
• IEEE 802.3ae
• IEEE 802.3an
• IEEE 802.3az
• IEEE 802.3ba
• IEEE 802.3bj
• IEEE 802.3bz
• IEEE 802.3x
• IEEE 802.3z
• IEEE 802.1ab
• IEEE 802.1p
• IEEE 802.1AX
• IEEE 802.1D
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.3ad
• IEEE 802.1Q
• IEEE 802.1v
• IEEE 802.3ac

Management & Protocols
Manageable: Yes
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Power Source: Power Supply
Power Consumption: 266.10 W
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.4″
Depth: 17.7″
Weight (Approximate): 16.53 lb

Overview
Build a resilient network core or distribution solution with the ability to stack multiple units using VCStack™
Create resilient, distributed backbones that are easy to manage with long-distance stacking
Enable multiple converged services in Smart City and IoT networks, with the same high capacity as the SwitchBlade x908 Gen2 in a 1RU form-factor
Support high-speed wireless, and network upgrades over legacy cabling, with 2.5G and 5G connectivity
Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
Manage up to 250 access points with the Autonomous Wave Control (AWC) Lite wireless controller, which automatically optimizes wireless connectivity and

throughput
View the network graphically and simplify wireless deployment with floor and heat maps using the Device GUI
