Overview

2.4G, IEEE 802.11 b/g/n Wi-Fi 4 Industrial Wireless Client

-Support RS232 serial port to Ethernet, and Ethernet to WIFI and into TCP/IP network interface

-Support most WIFI encryption methods and algorithms, WAP2-PSK/WAP-PSK, encryption type TKIP/AES

-Support IEEE 802.11 b/g/n. High-power APs used for long-distance coverage mostly use 802.11 n protocol

-Support network protocols: TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP/MQTT

-Support WIFI+ network port, and the network port supports routing function

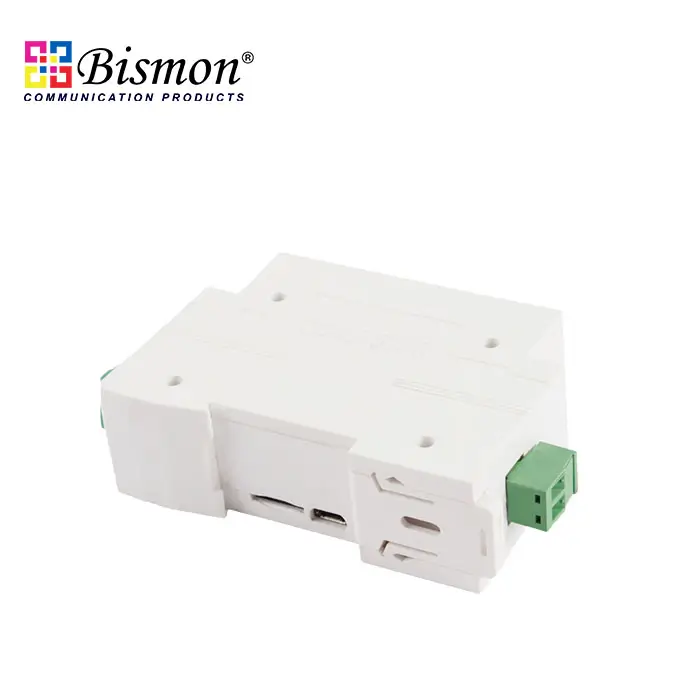

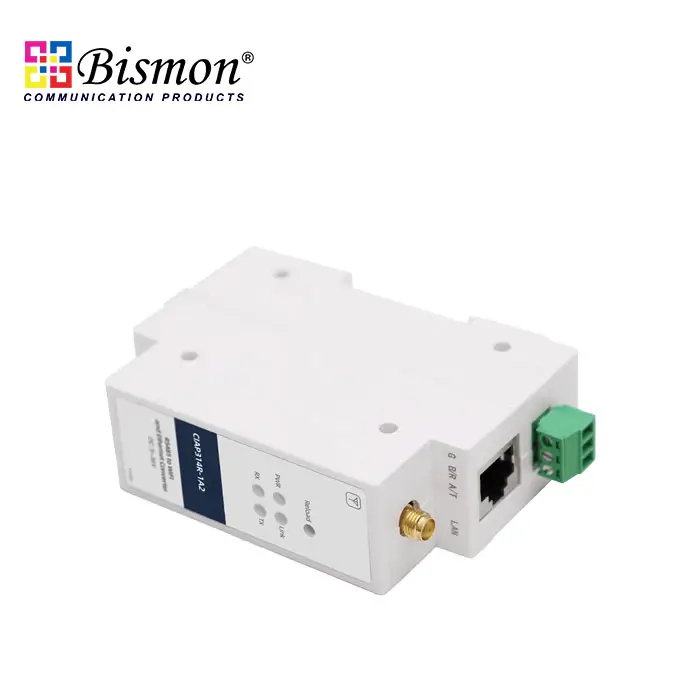

B1-CIAP314R-1A2-232 serial port server realizes the functions of serial port to WIFI, RS232 serial port to Ethernet, and Ethernet to WIFI. It can convert RS232 serial port into TCP/IP network interface and realize two-way transparent transmission of data between RS485 serial port and WIFI/Ethernet.

Product Features

- Rich status indicators PWR, Link, RX, TX

- The highest supported baud rate is 460800bps

- Support most WIFI encryption methods and algorithms, WAP2-PSK/WAP-PSK, encryption type TKIP/AES

- Support IEEE 802.11 b/g/n. High-power APs used for long-distance coverage mostly use 802.11 n protocol, which this module also perfectly supports

- Support automatic acquisition of IP through DHCP, and supports assigning IP to slave devices when working in AP mode

- Support network protocols: TCP/UDP/ARP/ICMP/HTTP/DNS/DHCP/MQTT

- Support up to 24 Client connections in TCP Server mode

- Restore to factory settings by pressing the reload button for more than 5seconds, without worrying about setting wrong

- Support wireless work in AP mode and node (Station) mode, Android system can directly access the friendly Web configuration page, and configure parameters through the web page

- Serial port frame delay and data volume can be set

- Support human cloud function, supports human cloud AT Command query/configuration, remote configuration, transparent data transmission, frequent disconnection alarm, remote upgrade
