Overview

Serial to Wi-Fi and Ethernet Converter

-1xRS232/485 serial port, 1×10/100M RJ45(WAN/LAN configurable)

-Support TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client/MQTT client mode

-SSL/TLS encryption V1.2, compatible with lower version

-Work as AP/STA/AP+STA, repeater, and bridge mode

-Wide voltage DC 5~36V

-Designed with guide rails for easy installation

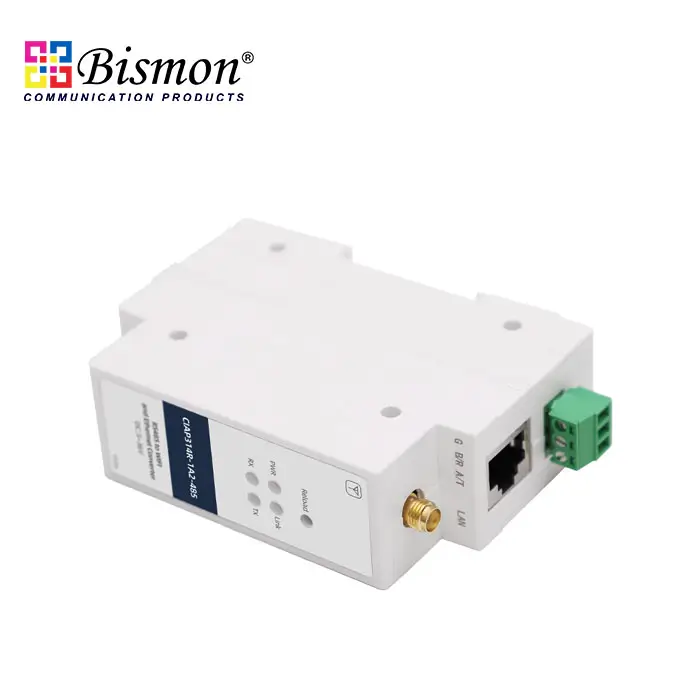

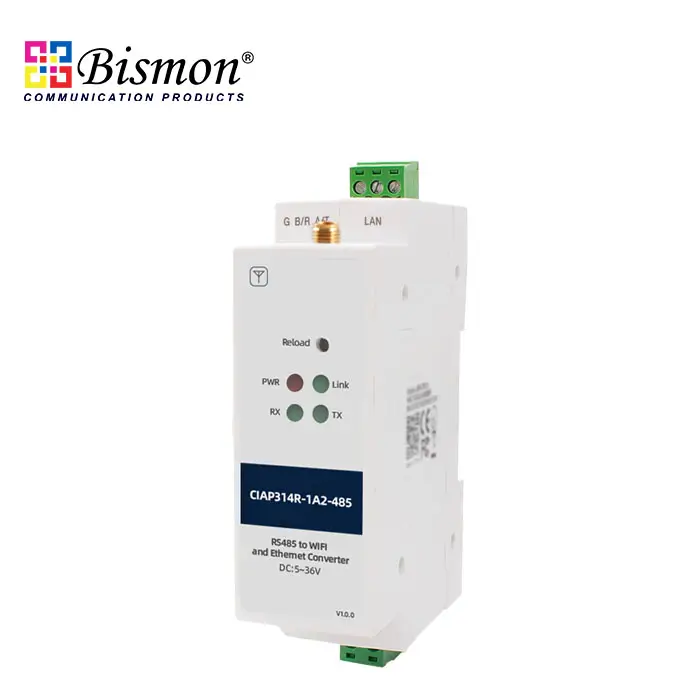

B1-CIAP314R-1A2-485 is a device that can realize data communication between RS485 and Ethernet/Wi-Fi. The device supports Modbus RTU/TCP protocol conversion, through which the field serial port device can communicate with the remote SCADA system.

It integrates rich network protocols such as MQTT, TCP, UDP, SSL, etc., supports multiple networking modes, and is suitable for various scenarios. SSL encryption can protect the secure transmission of customers’ data and avoid the risk of data leakage.

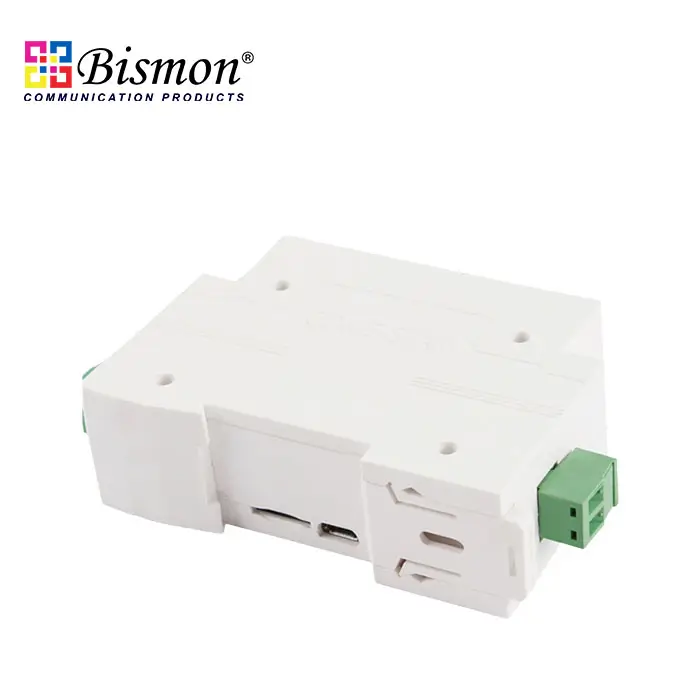

The device is compact and supports DIN rail mounting, which can save installation space and reduce costs. It can be widely used in smart agriculture, smart medical treatment, factory monitoring and other scenarios.

Product Features

- WIFI@2.4GHz 802.11b/g/n wireless standards

- Work as AP/STA/AP+STA, repeater, and bridge mode

- Support TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client/MQTT client mode

- SSL/TLS encryption V1.2, compatible with lower version

- Web socket function supported

- 1xRS232/485 serial port, 1×10/100M RJ45(WAN/LAN configurable)

- 5KV electrostatic protection for Ethernet port

- Registration packet, heartbeat packet, and timeout reset is supported

- Support Websocket and realize the timing communication for serial port and web page

- Support one key (press the reload button for more than 5 seconds) to restore factory settings

- Support Web Server, setup software, serial/network AT command to configure module

- Rich indicator: power, link, RXD, TXD

- Wide voltage DC 5~36V, 3-pin terminal block terminal

- Add hardware watch dog, makes more stable

- Remote firmware upgrading supported

- Long distance communication: two serial server can transport for 150m(Test conditions: open line of sight, two WIFI serial servers self-networking, 57600 baud rate, no packet loss during transmission)
