Overview

Serial to Dual Band Wi-Fi Converter

-Dual band WiFi 2.4G & 5.8G, support IEEE 802.11 a/b/g/n

-Support AP/STA/AP+STA mode

-Rich communication protocol MQTT/TCP/UDP/HTTP

-Support Modbus TCP/RTU conversion, heartbeat packet and registration packet

-Support SmartAPLink app to set up network parameter

-Multiple configuration methods AT command, browser, serial AT command, network AT command

-Rich indicators Power, Work, COM, Link

-Long transmission distance up to 200 meters(2.4G WiFi, open environment)

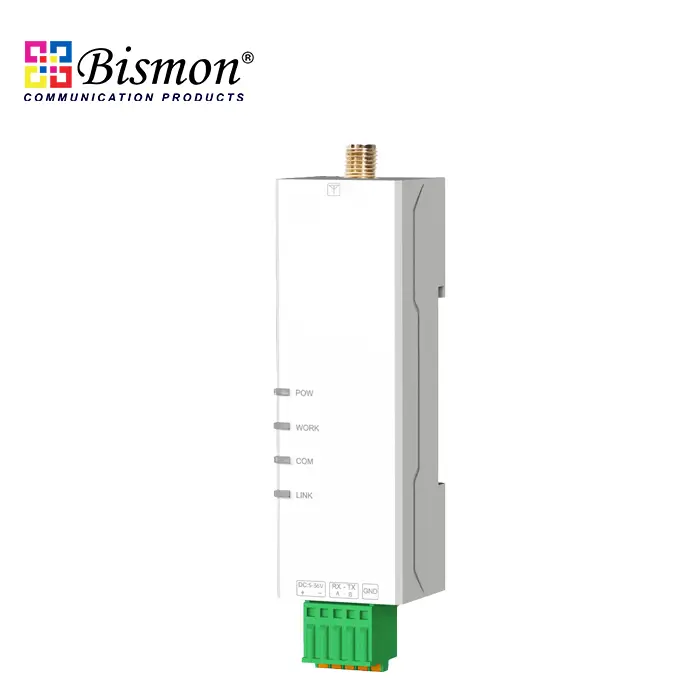

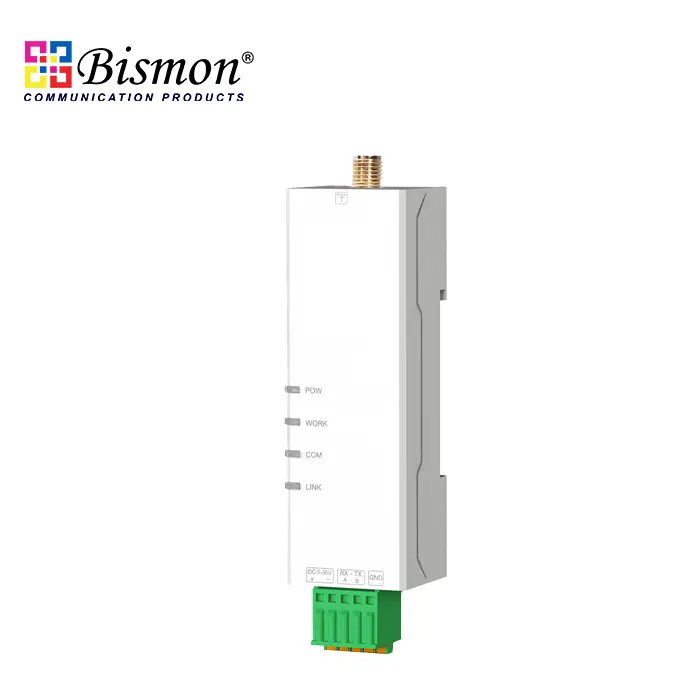

B1-CIAP315R-1A25-485 is an ultra-small size dual band WiFi serial server device with one serial port. It can realize transparent transmission between RS485 and WiFi device.

It supports 2.4G & 5.8G WiFi, compatible with IEEE 802.11 a/b/g/n standard. With 2.4 G WiFi, it has longer range signal while with 5.8G WiFi, it has fast speed and better resistance to signal interference.

In software, it supports multiple networking methods AP/STA/AP+STA mode, which is convenient for users to conduct wireless networking. And supports multiple communication protocols like TCP/UDP/HTTP/MQTT, and supports Modbus TCP/RTU conversion, so this device can establish a data communication bridge between the serial device and the server of different protocols, which is convenient for users to monitor the device remotely.

Product Features

- Dual band WiFi 2.4G & 5.8G, support IEEE 802.11 a/b/g/n

- Ultra small size, save your space

- Wide Operating Temp -40°C ~ 85°C, industrial grade design, stable operation in harsh environments

- V0 flame retardant rating

- Wide power input designed DC 5-36V, EMC level 2

- Hardware and software watchdog to ensure stable operation

- DIN rail mounting, easy for installation

- Support AP/STA/AP+STA mode

- Rich communication protocol MQTT/TCP/UDP/HTTP

- Support Modbus TCP/RTU conversion, heartbeat packet and registration packet

- Support SmartAPLink app to set up network parameter

- Multiple configuration methods AT command, browser, serial AT command, network AT command

- Rich indicators Power, Work, COM, Link

- Long transmission distance up to 200 meters(2.4G WiFi, open environment)
