Overview

Dual Band Wi-Fi Device Server (1G WAN Port)+(1G LAN Port)+(2.4GHz/5GHz Antenna Interface)DC9 ~ 36V

-Metal housing, IP30 protection

-Wide operating temperature: -35?~+70?

-Wide voltage input: DC 9-36V with power reverse protection.

-Built-in hardware watchdog, fault self-detection, self-repair, firmware backup and restore functions to ensure system stability without crashing.

-Support WIFI6 technology (IEEE 802.11 ax),

-Support dual-band WIFI (2.4 and 5G) AP/STA/AP+STA/bridge mode.

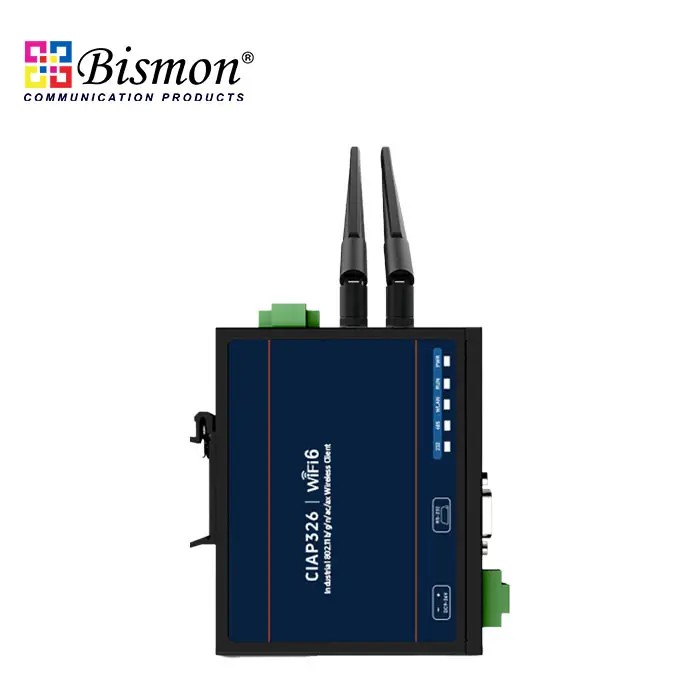

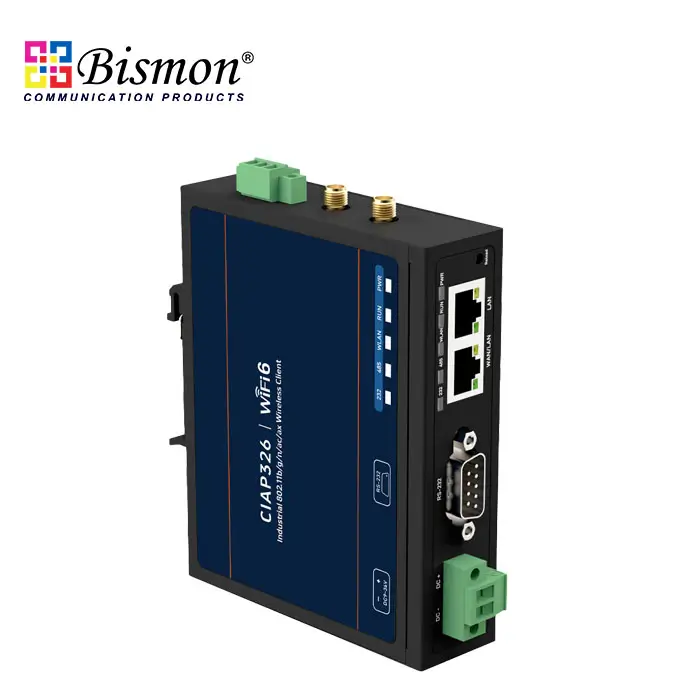

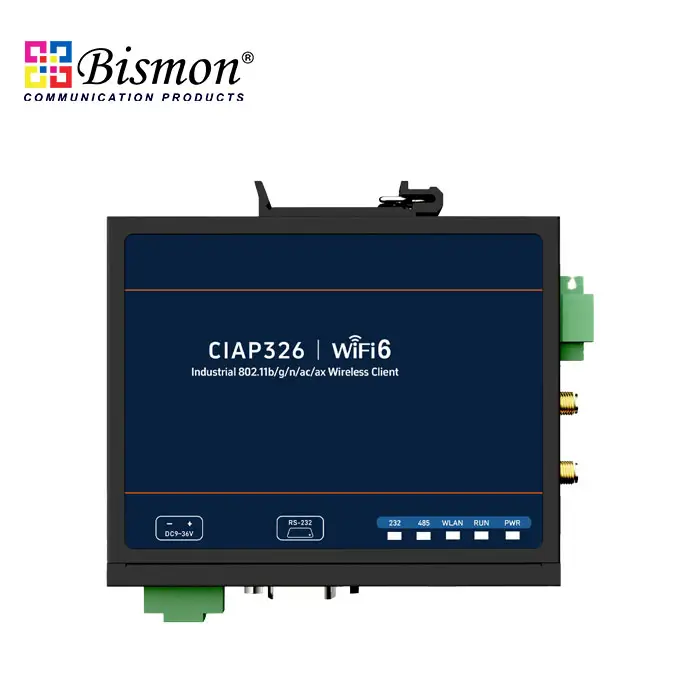

B1-CIAP326-2A25-2D is a Wi-Fi 6 industrial wireless client or serial to wifi6 converter with high speed, wide connection, low delay, and high stability. The measured rate of Wi-Fi 6 is up to 800Mbps. In AP hotspot mode, it can carry more than 8 Wi-Fi users. It integrates rich hardware interfaces: 1xRS232, 1xRS485, Ethernet ports (1LAN+1WAN/LAN). It supports AP/STA/AP+STA/bridge mode and can provide stable and reliable networking solutions for different scenarios and industries.

This device adopts industrial-grade standards: wide temperature and wide voltage, EMC protection. In software, it supports MODBUS, MQTT, TCP, UDP and other transmission protocols. The device supports single-link fast roaming. In a wireless local area network composed of multiple APs, roaming can be realized without AP switching operations. The built-in software and hardware dual watchdog, fault self-recovery can ensure the device operates stably and reliably in different harsh environments and industry scenarios like AGV automated transportation, robot, smart medical, smart storage, smart factories etc.

Product Features

- Metal housing, IP30 protection

- Wide operating temperature: -35?~+70?

- EMC protection: Surge protection, level 3; ESD protection, level 3; EFT protection, level 3; IEC61000

- Wide voltage input: DC 9-36V, with power reverse protection.

- Built-in hardware watchdog, fault self-detection, self-repair, firmware backup and restore functions to ensure system stability without crashing.

- Supports wall mounting, Din rail mounting, desktop placement.

- Support WIFI6 technology (IEEE 802.11 ax), support dual-band WIFI (2.4 and 5G) AP/STA/AP+STA/bridge mode.

- Support fast Wi-Fi roaming, network switching as low as 100ms.

- Support Gigabit ports: 1 x WAN/LAN, 1 x LAN.

- Support RS232/RS485, serial port data acquisition is easier.

- Compatible with mainstream industrial protocols: TCP/UDP/MODBUS/HTTP/MQTT/SNMP, etc.

- Supports connecting to mainstream cloud platforms such as Alibaba Cloud and AWS Cloud, making it easy for devices to go to the cloud.

- Support a complete anti-drop mechanism to ensure the stability of data transmission.

- Support wired/STA multi-network intelligent backup function, keep the link always unblocked.

- Users can open the built-in webpage operation and maintenance of wireless client through platform, which facilitates centralized management of equipment Support SNMP, NTP time calibration, MAC-IP binding, anti-access restriction and other special functions.
