Overview

Dual Band Wi-Fi Device Server

-1×10/100Base-T(X) WAN port, 1×10/100Base-T(X) LAN port, 1xRS232/485 serial port, 1x4G antenna interface and 2×2.4G antenna interfaces, 1xdual nano SIM card slot

-Link backup and mutual backup of wired, 4G cellular networks

-Support AP, Client and AP+Client wireless modes, working as Wi-Fi hotpot, wireless client or Ethernet bridge

-Support UDP, TCP, Modbus, HTTPD, WebSocket, MQTT protocols, support virtual com port

-DC 9~36V input, reverse polarity protection

-High strength aluminum alloy shell, IP40 protection grade

-Fanless design, case heat dissipation

-Work in -40? ~ + 75? harsh environment

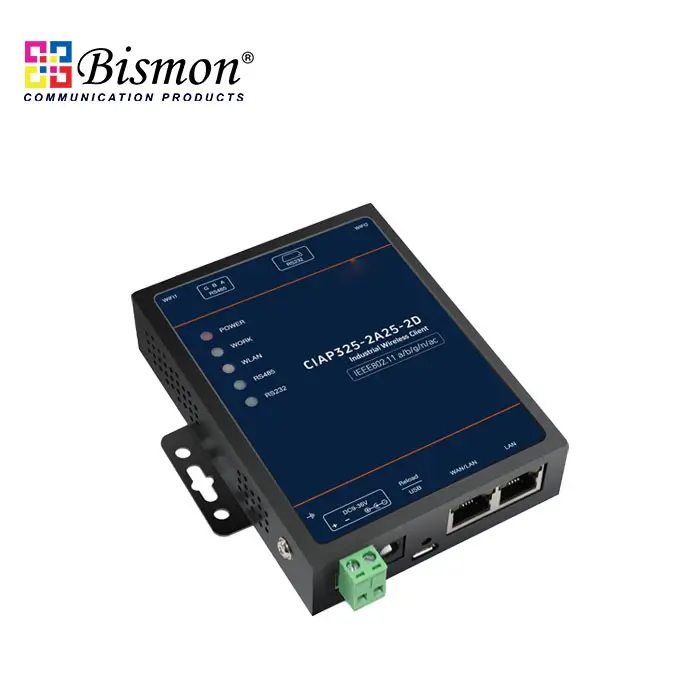

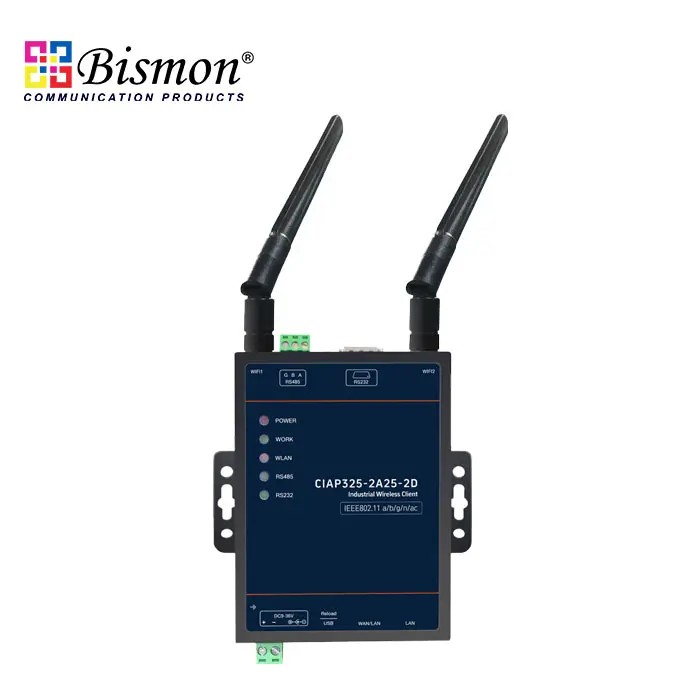

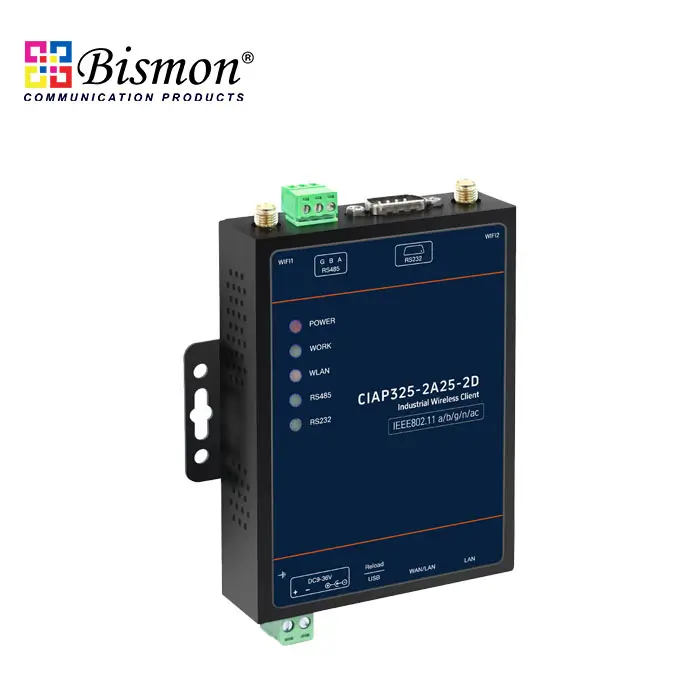

B1-CIAP325-2A25-2D is a dual band Wi-Fi 5 industrial wireless client with high speed, wide connection, low delay, and high stability. It supports standard 802.11a/b/g/n/ac protocols. In AP mode, it can carry more than 16+ Wi-Fi users. It integrates rich hardware interfaces:  1xRS232, 1xRS485, Ethernet ports (1LAN+1WAN/LAN). It supports AP/STA/AP+STA/bridge mode and can provide stable and reliable networking solutions for different scenarios and industries.

This device adopts industrial-grade standards: wide temperature and wide voltage and high EMC protection. In software, it supports MODBUS, MQTT, TCP, UDP and other transmission protocols. The built-in software and hardware dual watchdog, fault self-recovery can ensure the device operate stably and reliably in different harsh environments and industry scenarios like AGV automated transportation, robot, smart medical, smart storage, smart factories etc.

Product Features

- Metal housing, IP30 protection

- Wide operating temperature: -25°C~+75°C

- EMC protection: Surge protection, level 3; ESD protection, level 3; EFT protection, level 3

- Wide voltage input: DC 9-36V, with power reverse protection.

- Built-in hardware watchdog, fault self-detection, self-repair, firmware backup and restore functions to ensure system stability without crashing.

- Support wall mounting, desktop placement.

- Support 802.11a/b/g/n/ac, 2.4G & 5.8G WiFi

- Multiple network methods: AP/STA/AP+STA/Bridge

- Support 2 Ethernet ports: 1xWAN/LAN configurable, 1xLAN

- Support RS232/RS485, serial port data acquisition is easier

- Compatible with mainstream data transmission protocols: TCP/UDP/MODBUS/HTTP/MQTT, etc.

- WPA3 encryption and SSL protocol is supported, make it more security for user’s data transmission.

- Support connecting to mainstream cloud platforms such as Alibaba Cloud and AWS Cloud

- Support a complete anti-drop mechanism to ensure the stability of data transmission

- Support wired/STA multi-network intelligent backup function, keep the link always unblocked

- Support remote management via CS cloud, users can login the web page to check and set all the parameters

- Support SNMP, NTP time calibration, MAC-IP binding, anti-access restriction and other special functions
